65059 Mini Tank Weighing Module, VPG Sensortronics

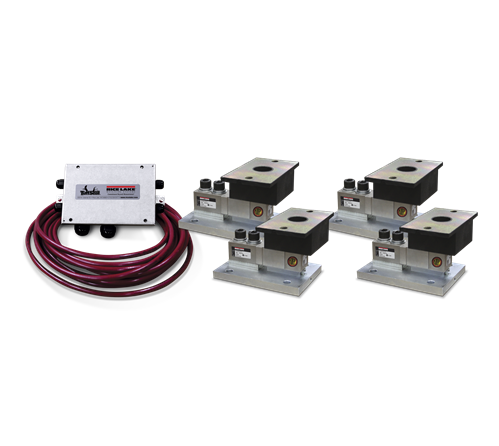

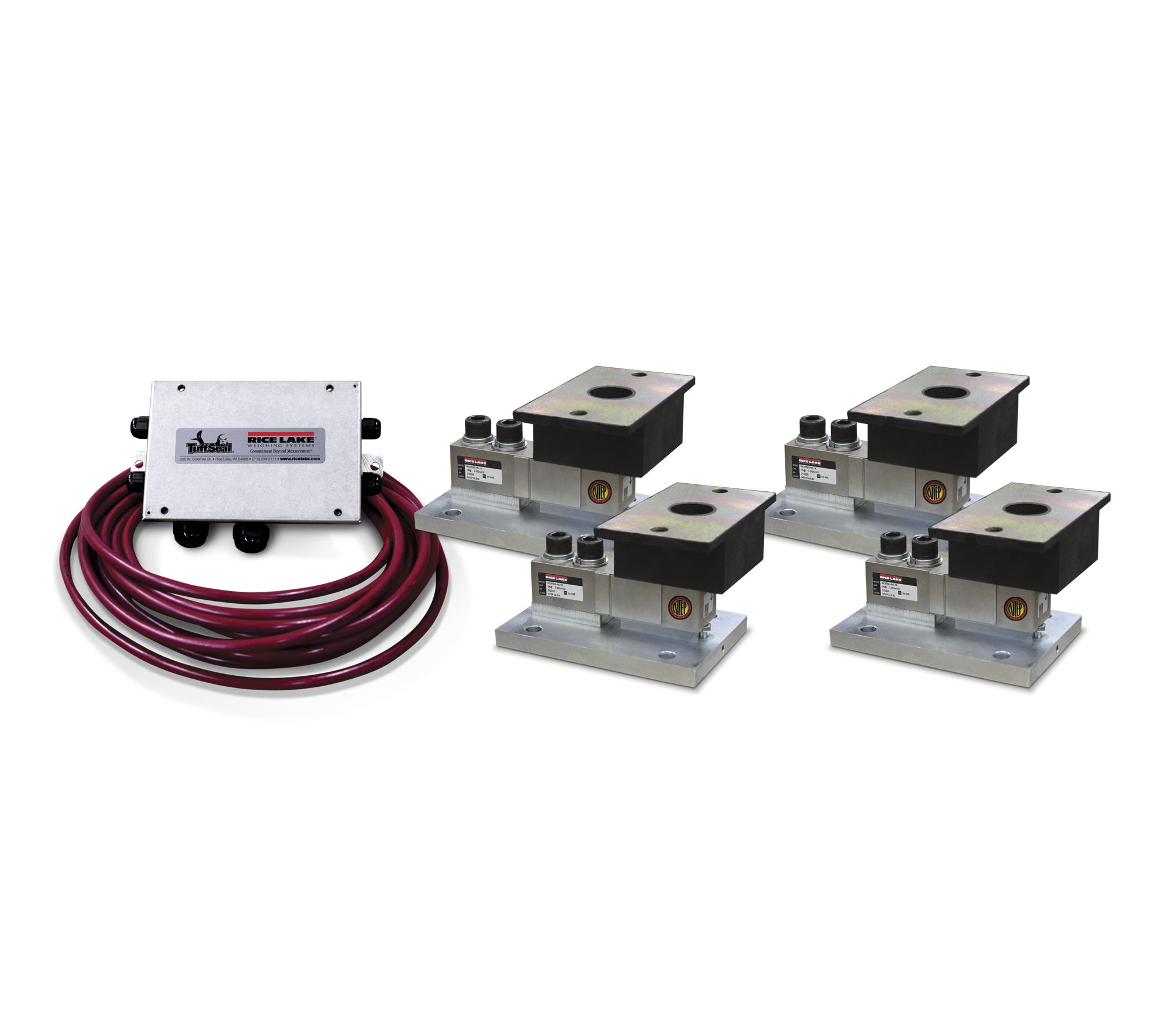

Complete Kit Includes

  • One JB4SS NEMA Type 4X stainless steel signal trim junction box
  • Three or four 60040 cantilever beam load cells (50 to 250 lb mild steel models)
  • Three or four 65023-500-0107 single-ended beam load cells (500 lb mild steel models)
  • Three or four 65023A1K-5107 single-ended beam load cells (1,000 to 2,500 lb mild steel models)
  • Three or four 65023-500-0113 single-ended beam load cells (500 lb stainless steel model)
  • Three or four 65023S1K-5113 single-ended beam load cells (1,000 to 2,500 lb stainless steel models)
  • Three or four neoprene isolation/compression mounts
  • 25 ft of hostile environment EL147HE SURVIVOR® load cell cable

Standard Features

  • Zinc plated, mild steel modules
  • Lower weighing ranges from 50 to 500 lb per module
  • Environmentally protected load cells
  • Neoprene isolation/compression mounts allow for minor misalignment, thermal expansion and shock absorption
  • Overload stop for 500 lb modules provides durability

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

65059 Mini Tank Weighing Module, VPG Sensortronics

The 65059 mild steel single weigh module kit provides a cost-effective alternative for your customers’ low-range weighing needs using VPG Sensortronics load cells. Ideal for various indoor weighing applications where checking requirements are low, this kit utilizes Rice Lake's high-quality mounts and environmentally protected load cells to create a mini tank weighing module with outstanding performance.

Applications

50 to 250 lb

500 lb

1,000 lb

2,000 to 2,500 lb

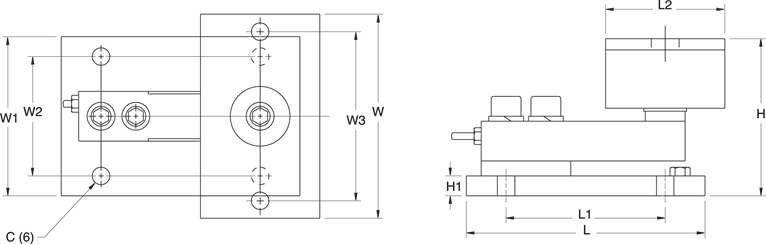

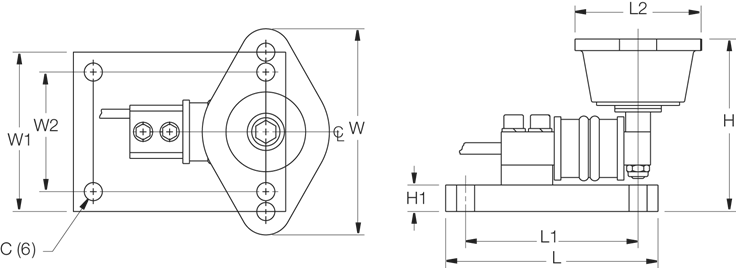

Rated Capacity C C1 H H1 L L1 L2 W W1 W2 W3
lb/in
50 to 250 0.34 - 3.13 0.50 4.00 3.25 2.38 3.88 3.00 2.25 -
500 0.44 0.56 3.88 0.50 6.00 4.00 3.38 5.50 4.00 3.00 4.13
1,000 0.44 - 4.00 0.50 6.00 4.00 3.00 5.13 4.00 3.00 4.13
2,000 to 2,500 0.44 0.56 4.00 0.50 6.00 4.00 4.62 6.25 4.00 3.00 5.00

Resources / Downloads

Title Download Email
65059 Weigh Module Catalog Page Download Email

Title Version Revision Download Email Category Archived
RL 50210 TA/65059 Load Cell Mounting Kit Installation Guide A Download Email Weigh Modules No
Load Cell and Weigh Module Handbook B Download Email Load Cells|Weigh Modules No

Title Download Email
Weigh Module Application Download Email

Title Download Email
RL50210 TA/65059 Mini Tank Assembly 1000lb - 2500lb Replacement Parts Page Download Email
RL50210 TA/65059 Mini Tank Assembly 500lb Replacement Parts Page Download Email
RL50210 TA/65059 Mini Tank Assembly Mild Steel Replacement Parts Page Download Email

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules
Your First Choice in Load Cells Download Email Load Cells

Title View Download Email Category
Custom Weigh Modules and Load Cell Mounts View Download Email Weigh Modules|Load Cells|Load Cell Hardware|Hardware

Title Download Email Category
Properly Welding on Structures with Load Cells Download Email Load Cells

Parts

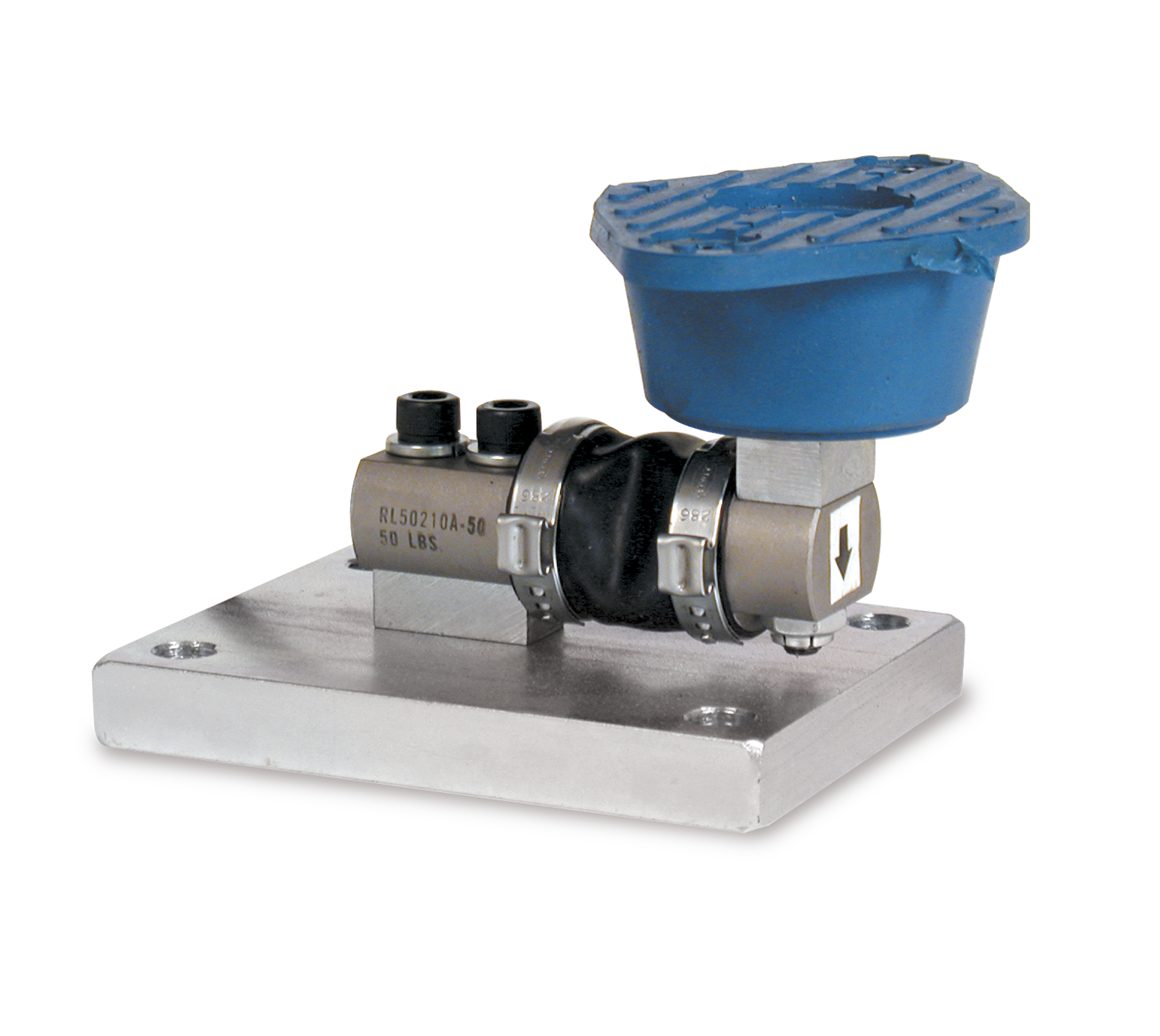

Mild Steel Single Module (Includes Load Cell)

Part # Description List Price Cart
17825 Mount ASSY,65059-50 50 lb Mild Steel Zinc Plated Compression INCL 60040-50 lb

List Price: $460.00

17826 Mount ASSY,65059-100 100 lb Mild Steel Zinc Plated Compression INCL 60040-100 lb

List Price: $460.00

17827 Mount ASSY,65059-150 150 lb Mild Steel Zinc Plated Compression INCL 60040-150 lb

List Price: $460.00

17828 Mount ASSY,65059-250 250 lb Mild Steel Zinc Plated Compression INCL 60040-250 lb

List Price: $460.00

17829 Mount ASSY,65059-500 500 lb Mild Steel Zinc Plated Compression INCL 65023-500-0107

List Price: $609.00

17830 Mount ASSY,65059-1K 1,000 lb Mild Steel Zinc Plated Compression INCL 65023-1K

List Price: $609.00

17946 Mount ASSY,65059-2K 2,000 lb Mild Steel Zinc Plated Compression INCL 65023-2,000 lb

List Price: $609.00

17947 Mount ASSY,65059-2.5K 2,500 lb Mild Steel Zinc Plated Compression INCL 65023-2,500 lb

List Price: $609.00

Mild Steel 3-Module Kit

Mild Steel 4-Module Kit

Stainless Steel Single Module (Includes Load Cell)

Stainless Steel 3-Module Kit

Stainless Steel 4-Module Kit

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
