BenchMark™ HE Hostile Environment Bench Scale

  • 304 stainless steel frame and cover

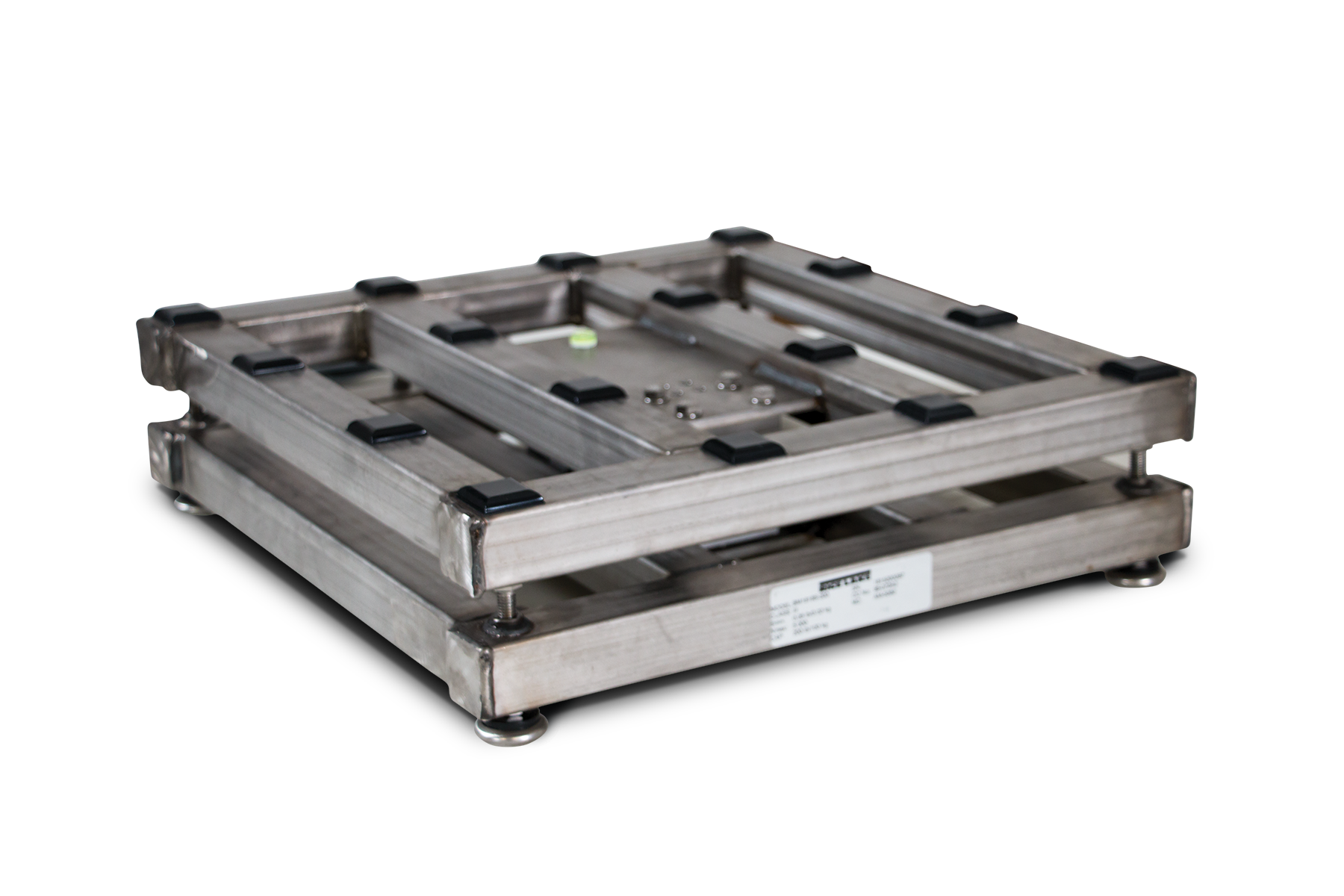

  • Base design isolates load cell from overloads and shock loads for added durability
  • Specially designed adjustable support feet provide exceptional traction and will not scratch surfaces

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW LOGO FM Approved

WARNING: Cancer and Reproductive Harm California Proposition 65

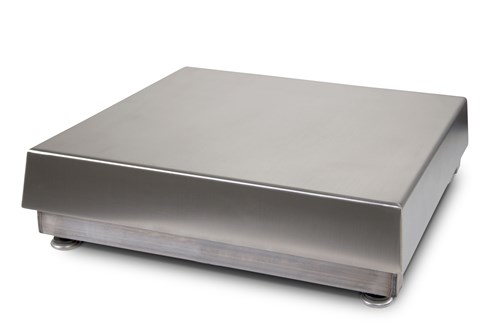

Bench Scale For A Hostile Environment

Starting with a stainless steel IP69K hermetically sealed load cell, the HE Series bench scale addresses the needs of hostile environment and washdown applications. Rice Lake's BenchMark HE bench scale performs reliably through the most demanding tasks, with a base that's specially engineered for overload protection. The HE Series design is available on almost any size or capacity.

Load Cell, NTEP Certified:
IP69K stainless steel, hermetically sealed

Output Impedance:
1,000 ohm

Maximum Overload:
150% to 200% depending on capacity

Overload Protection:
Five-point, independently adjusted

Scale Frame:
AISI304L, glass bead blasted for even appearance

Scale Cover:
AISI304L, straight line finish, Ra=45 +/- 10

Cable Length:
10 ft (3 m)

Compensated Temperature Range:
14 °F to 104 °F (-10 °C to 40 °C)

Warranty:
Three-year limited
(includes water ingress)

Approvals:
NTEP CC 95-072, Class III, 5,000 d
Measurement Canada AM-5082
Load cell is FM approved

12 × 18 in
H 4.00 in (102 mm) W 18.00 in (457 mm)
L 12.00 in (305 mm) W1 18.50 in (470 mm)
L1 12.50 in (318 mm)
18 × 18 × 5.25 in
H 5.25 in (133 mm) W 18.00 in (457 mm)
L 18.00 in (457 mm) W1 18.75 in (476 mm)
L1 18.75 in (476 mm)
18 × 18 × 5.5 in
H 5.50 in (133 mm) W 18.00 in (457 mm)
L 18.00 in (457 mm) W1 18.75 in (476 mm)
L1 18.75 in (476 mm)
18 × 24 in
H 5.50 in (133 mm) W 18.00 in (457 mm)
L 24.00 in (610 mm) W1 18.75 in (476 mm)
L1 24.75 in (629 mm)
24 × 24 in
H 5.50 in (133 mm) W 24.00 in (610 mm)
L 24.00 in (610 mm) W1 24.75 in (629 mm)
L1 24.75 in (629 mm)

Resources / Downloads

Title Download Email
BenchMark HE Catalog Page Download Email

Title Version Revision Download Email Category Archived
BenchMark MS, SS, HE Technical Manual B Download Email Bench Scales|Platform Scales No

Title Download Email
Bench Scale Questionnaire Download Email

Title Collateral Wizard Request Download Email Category
BenchMark Series Bench Scales Collateral Wizard Request Download Email Platform Scales|Bench Scales

Title View Download Email Category
Overload Protection with BenchMark Bench Scales View Download Email Bench Scales

Parts

Part # Description List Price Cart
186897 Scale,BENCHMARK HE BM1218S-50 12x18x4 50 lb 10ft NTEP III SST

List Price: $1,480.00

186898 Scale,BENCHMARK HE BM1218S-100 12x18x4 100 lb 10ft NTEP III SST

List Price: $1,480.00

86952 Scale, BENCHMARK HE BM1818S-50 18x18x5-1/4 50lb 10ft NTEP III SST

List Price: $1,780.00

86953 Scale, BENCHMARK HE BM1818S-100 18x18x5-1/4 100lb 10ft NTEP III SST

List Price: $1,780.00

86954 Scale, BENCHMARK HE BM1818S-150 18x18x5-1/4 150lb 10ft NTEP III SST

List Price: $1,780.00

86955 Scale,BENCHMARK HE BM1818S-200 18x18x5-1/4 200lb 10ft NTEP III SST

List Price: $1,780.00

86956 Scale, BENCHMARK HE BM1818S-250 18x18x5-1/2 250lb 10ft SST

List Price: $2,130.00

86957 Scale, BENCHMARK HE BM1818S-300 18x18x5-1/2 300lb 10ft SST

List Price: $2,130.00

86958 Scale, BENCHMARK HE BM1818S-500 18x18x5-1/2 500lb 10ft SST

List Price: $2,130.00

86959 Scale, BENCHMARK HE BM1818S-1000 18x18x5-1/2 1000lb 10ft SST

List Price: $2,130.00

86960 Scale, BENCHMARK HE BM1824S-50 18x24x5-1/2 50lb 10ft NTEP III SST

List Price: $2,405.00

86961 Scale, BENCHMARK HE BM1824S-100 18x24x5-1/2 100lb 10ft NTEP III SST

List Price: $2,405.00

86962 Scale, BENCHMARK HE BM1824S-150 18x24x5-1/2 150lb 10ft NTEP III SST

List Price: $2,405.00

86963 Scale, BENCHMARK HE BM1824S-200 18x24x5-1/2 200lb 10ft NTEP III SST

List Price: $2,405.00

86964 Scale, BENCHMARK HE BM1824S-250 18x24x5-1/2 250lb 10ft SST

List Price: $2,405.00

86965 Scale, BENCHMARK HE BM1824S-300 18x24x5-1/2 300lb 10ft SST

List Price: $2,405.00

86966 Scale, BENCHMARK HE BM1824S-500 18x24x5-1/2 500lb 10ft SST

List Price: $2,405.00

86967 Scale, BENCHMARK HE BM1824S-1000 18x24x5-1/2 1000lb 10ft SST

List Price: $2,405.00

86968 Scale, BENCHMARK HE BM2424S-100 24x24x5-1/2 100lb 10ft NTEP III SST

List Price: $2,800.00

86969 Scale, BENCHMARK HE BM2424S-150 24x24x5-1/2 150lb 10ft NTEP III SST

List Price: $2,800.00

86970 Scale, BENCHMARK HE BM2424S-200 24x24x5-1/2 200lb 10ft NTEP III SST

List Price: $2,800.00

86971 Scale,BENCHMARK HE BM2424S-250 24x24x5-1/2 250lb 10ft SST

List Price: $2,800.00

86972 Scale, BENCHMARK HE BM2424S-300 24x24x5-1/2 300lb 10ft SST

List Price: $2,800.00

86973 Scale, BENCHMARK HE BM2424S-500 24x24x5-1/2 500lb 10ft SST

List Price: $2,800.00

86974 Scale, BENCHMARK HE BM2424S-1000 24x24x5-1/2 1000lb 10ft SST

List Price: $2,800.00

Options

Part # Description List Price Cart
112044 Column,12 Inch SST Kit OPT Benchmark, Benchmark (SL/HE/HE-X), CW-80B, CW-90B, CW-90XB to IQ+210, CW-90I, CW-90XI, 480/482 Legend Series,680 Synergy Series 380 Synergy Series

List Price: $145.00

112045 Column,18 Inch SST Kit OPT Benchmark, Benchmark (SL/HE/HE-X), CW-80B, CW-90B, CW-90XB to IQ+210, CW-90I, CW-90XI,480/482 Legend Series, 680 Synergy Series 380 Synergy Series

List Price: $195.00

64576 Bracket,Attachment Kit OPT, Benchmark for IQ+210, 480/482 Legend Series, 680 Synergy Series, 380 Synergy Series

List Price: $100.00

22125 LIT,Manual Benchmark Scale

Call for price

196363 Column,12 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to 882IS/882IS PLUS with battery

List Price: $225.00

196364 Column,18 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to 882IS/882IS PLUS with battery

List Price: $275.00

197482 Column,12 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to 882IS/882IS PLUS with power supply option (power supply will not be mounted to the column), 880/880 Plus Universal

List Price: $165.00

197484 Column,18 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to 882IS/882IS PLUS with power supply (power supply will not be mounted to the column), 880/880 Plus Universal

List Price: $215.00
