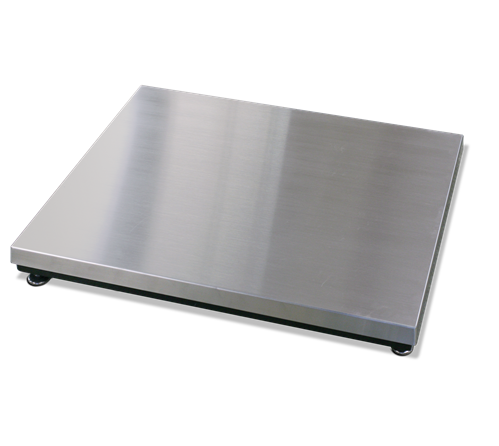

BenchMark® LP Low-Profile Bench Scale

  • Mild steel base construction
  • 304 stainless steel cover
  • ABS junction box
  • Four planar beam load cells
  • Adjustable leveling feet
  • 20 ft of EL147 load cell cable
  • Holes in lower frame for mounting scale without adjustable leveling feet


Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW

WARNING: Cancer and Reproductive Harm California Proposition 65

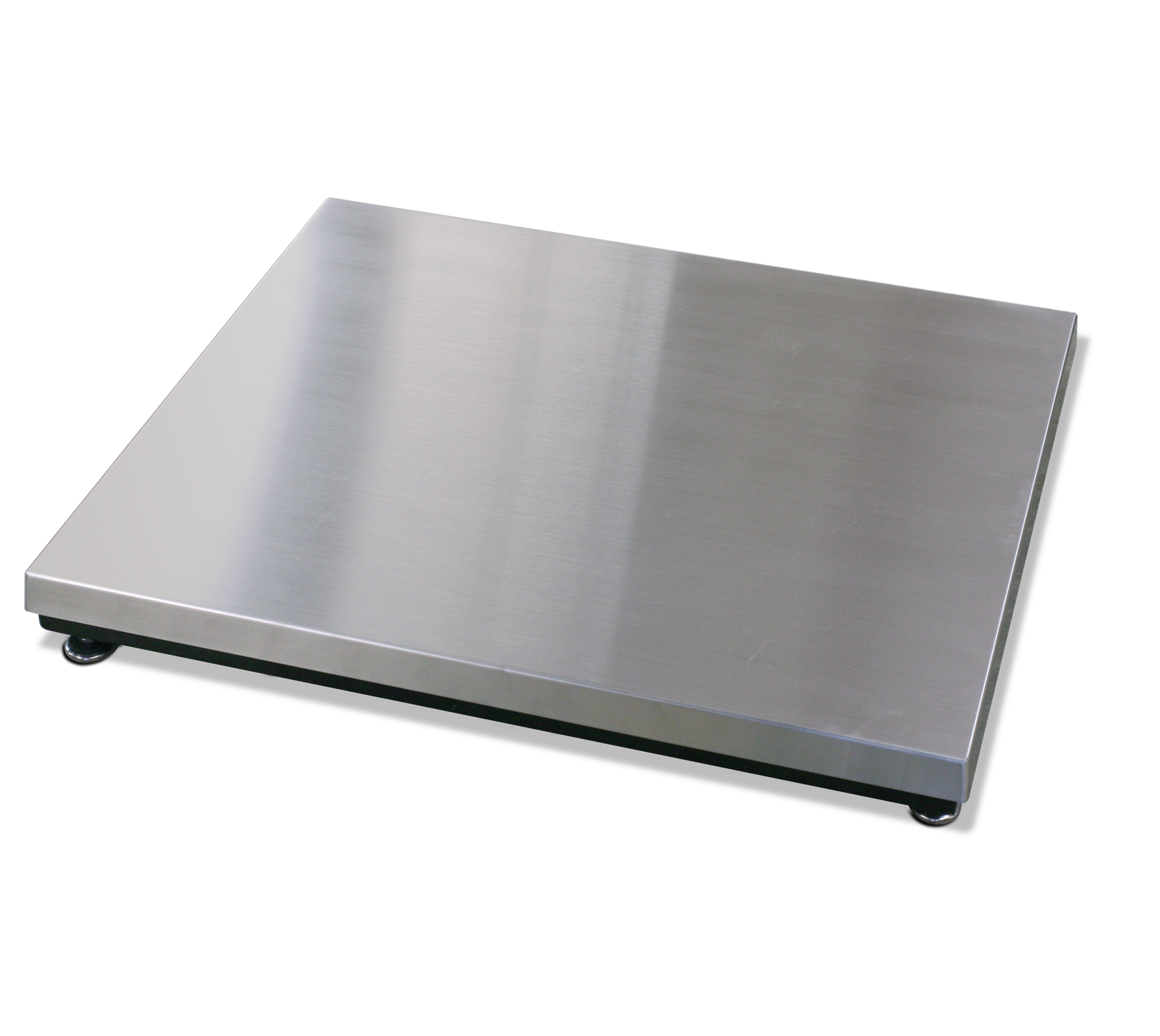

Low-Profile Bench Scale

The BenchMark LP low-profile bench scale offers an overall height of just two-to-three inches. The more subtle presence of the LP is an attractive option for commercial situations, or other areas in need of a less obtrusive platform. Gain the same accuracy and performance as our standard benchmark models in a more refined and inconspicuous package.

Load Cell, Rated Output:
IP65 aluminum, 1.0 mV/V ±10%

End Load Capacity:
60% of full scale capacity

Cable Length:
20 ft (6.1 m) for connecting junction box to indicator

Scale Frame:
Mild steel powder coated black

Scale Cover:
AISI304L, straight line finish, Ra=45 +/- 10

Two-year limited

NTEP CC 08-017, Class III 5,000 d (except 1,000 lb capacity)
Measurement Canada AM 5660 (except 500 kg capacity)

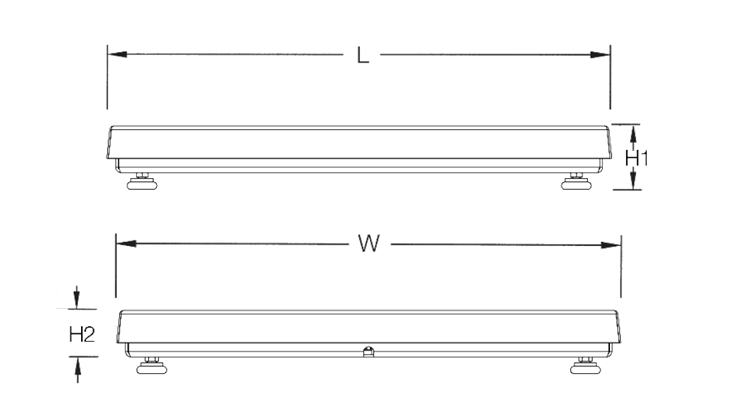

PN 97662
H1 2.63 in L 18.00 in
H2 1.67 in W 18.00 in
PN 97663
H1 2.50 in L 18.00 in
H2 1.74 in W 18.00 in
PN 97664
H1 2.69 in L 18.00 in
H2 1.93 in W 18.00 in
PN 97665
H1 2.66 in L 24.00 in
H2 1.69 in W 24.00 in
PN 97666
H1 2.83 in L 18.00 in
H2 2.07 in W 18.00 in
PN 97667
H1 302 in L 24.00 in
H2 2.26 in W 24.00 in
PN 97668
H1 3.02 in L 30.00 in
H2 2.26 in W 30.00 in
PN 97669
H1 3.47 in L 30.00 in
H2 2.70 in W 30.00 in
PN 97670
H1 3.02 in L 36.00 in
H2 2.26 in W 36.00 in
PN 97671
H1 3.47 in L 36.00 in
H2 2.70 in W 36.00 in
Note: 1 in = 25.4 mm

Resources / Downloads

Title View Email Category Type
Prince Edward Island View Email Checkweighers|Indicators / Controllers|Weight Indicators Application Story
Surviving the Tignish Wind View Email Indicators / Controllers|Weight Indicators|Checkweighers Application Story

Title Download Email
BenchMark LP Catalog Page Download Email

Title Version Revision Download Email Category Archived
BenchMark LP Low-Profile Bench Scale Installation Manual D Download Email Bench Scales|Platform Scales No

Title Download Email
Bench Scale Questionnaire Download Email

Title Download Email
BenchMark LP Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
BenchMark LP Low Profile Bench Scales Download Email Platform Scales|Bench Scales|Aviation Baggage Scales

Title View Download Email Category
Overload Protection with BenchMark Bench Scales View Download Email Bench Scales


Part # Description List Price Cart
97662 Scale,Benchmark LP 18x18 100lb

List Price: $1,385.00

97663 Scale,Benchmark LP 18x18 250lb

List Price: $1,415.00

97664 Scale,Benchmark LP 18x18 500lb

List Price: $1,450.00

97665 Scale,Benchmark LP 24x24 100lb

List Price: $1,655.00

97666 Scale,Benchmark LP 24x24 250lb

List Price: $1,680.00

97667 Scale,Benchmark LP 24x24 500lb

List Price: $1,715.00

97668 Scale,Benchmark LP 30x30 500lb

List Price: $1,975.00

97669 Scale,Benchmark LP 30x30 1000lb

List Price: $2,040.00

97670 Scale,Benchmark LP 36x36 500lb

List Price: $2,590.00

97671 Scale,Benchmark LP 36x36 1000lb

List Price: $2,650.00


Part # Description List Price Cart
208904 Cable Assy,6 Conductor, 20ft. with DB-9 Male Connector for Tracer

List Price: $95.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
