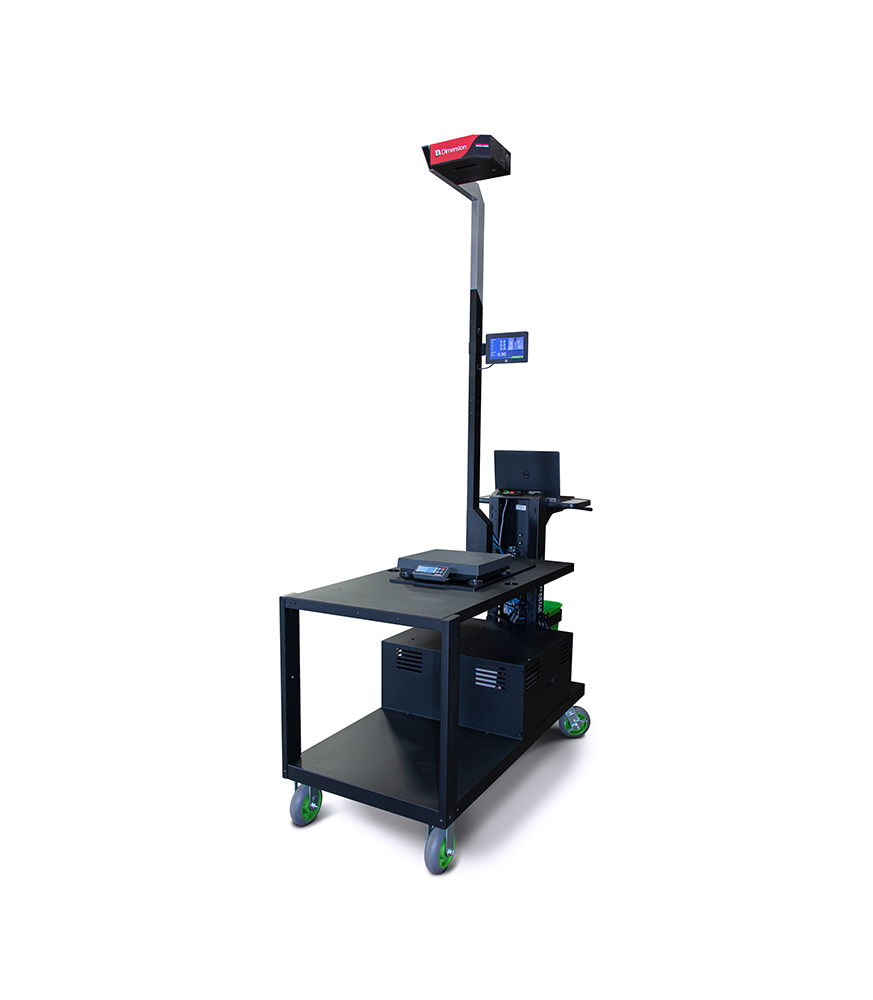

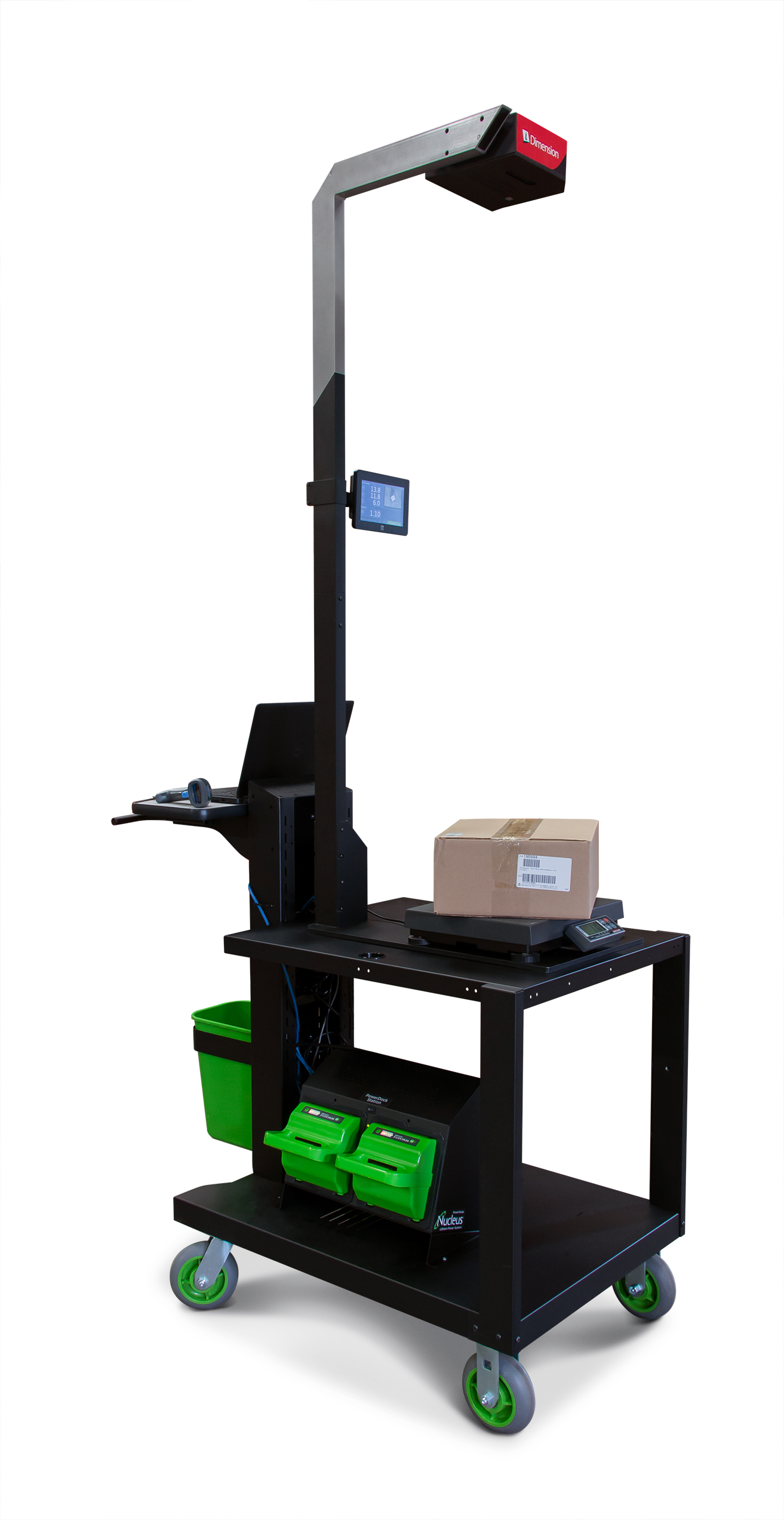

iDimension® Plus Mobile Cart

Request Quote

  • PowerSwap Nucleus Lithium Power System is a plug and play power system, no tools, heavy lifting or maintenance personnel required for battery charges
  • Enhance speed and data collection for the optimization of warehouse space, truck/trailer loads and identifying best packaging solutions
  • Dimension directly at product location; increase productivity up to 50% by eliminating costly motion, touches and transportation time
  • Reduce operator fatigue and potential injury as carrying/moving parcels to fixed stations is eliminated
  • 30% increase in pick rates; quickly process increased volume due to business growth, seasonal peaks & more
  • All iDimension Plus Mobile carts come standard with one top shelf, push handle with laptop shelf, waste basket, 6 in x 2 in rubber wheels with 2 locking casters, integrated power system and power strip

The iDimension Plus Mobile carts were designed to enable quick and accurate dimensioning directly at your product location. The cart series consists of 30” and 48” long workstations that hold and power the iDimension Plus and other hardware including scales, laptops/thin clients/CPUs and printers up to 12+ hours at a time or 24/7 operation.

The iDimension Plus Mobile provides either a NewCastle systems light weight, swappable AC power industrial applications using the PowerSwap Nucleus Lithium Power System or traditional sealed lead acid (SLA) battery.

Dimensions (L x W x H):
30 in long unit: 49 in x 26 in x 33 in (1,245 mm x 660 mm x 838 mm)
48 in long unit: 56.5 in x 26 in x 33 in (1,435 mm x 660 mm x 838 mm)
96.5 in (2,451 mm) overall height with
iDimension Plus Series 1.5M pole assembly mount
Shelf Dimensions (L x W):
Laptop Shelf: 21 in x 12 in (533 mm x 304 mm)
30 in long shelf: 30 in x 24 in (762 mm x 610 mm)
48 in long shelf: 56.5 in x 26 in x 33 in (1,435 mm x 660 mm x 838 mm)
Color:
Black powder coat

Overall Cart Capacity:
125 lb (57 kg), not including iDimension plus and scale

Model:
EC380 sealed lead acid battery
Typical Devices powered for 8 hour shift:
Laptop, iDimension Plus and scale
Charge Time:
9 hours SLA

Number of Batteries:
Two
Continuous Output Power (W):
120 @ 1 battery, 240 @ 2 batteries
Approximate Charging Time:
8 Hours

Resources / Downloads

Title View Email Category Type
Measuring Greatness with the Green Bay Packers View Email Application Story

Title Download Email
iDimension Plus Mobile Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
iDimension Plus Literature Request Download Email Dimensioning
iDimension FAQs Download Email Packages and Parcels Dimensioning|Pallets and Freight Dimensioning|Dimensioning

Title Version Size Download Email
QubeVu Desktop Application 1 1.4 MB Download Email

Parts

iDimension Plus Mobile with Power Swap Nucleus Lithium Power System

Part # Description List Price Cart
200085 iDim Plus Mobile Cart 30 inch long, Atlas Series Cart with Power Swap Nucleaus Lithium Power System 2 Bay Charging Station and 2 Batteries

List Price: $8,625.00

200086 iDim Plus Mobile Cart 48 inch long, Atlas Series Cart with Power Swap Nucleaus Lithium Power System 2 Bay Charging Station and 2 Batteries

List Price: $9,025.00

iDimension Plus Mobile with SLA Power Source

iDimension Plus Mobile No Power Source

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
