Ishida WIL-Acro II Compact Labeler

  • Color touchscreen user-interface with adjustable viewing angle

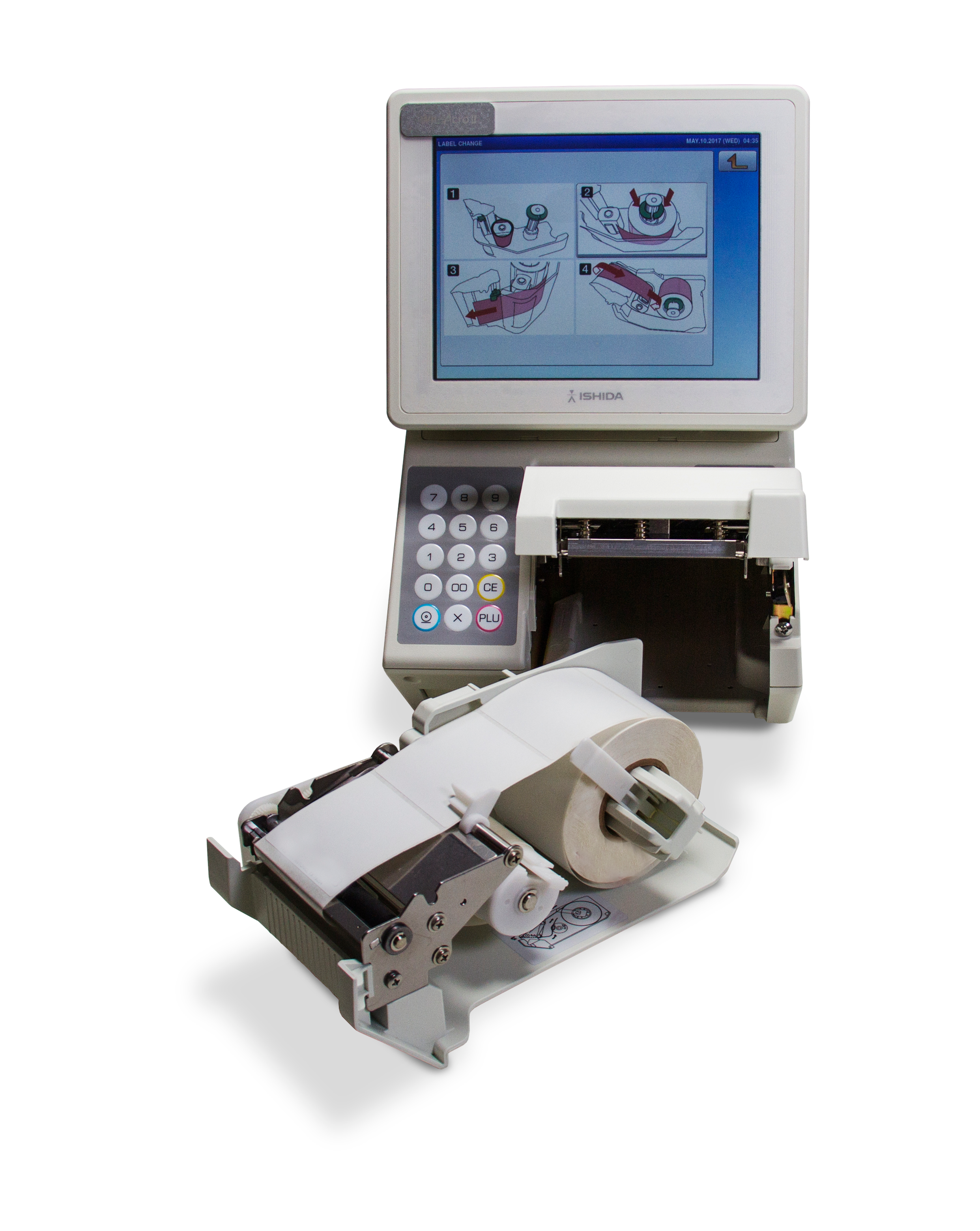

  • Front-loading label cassette
  • Prints all legally required ingredient and nutritional information
  • Stores and prints graphics for custom labeling
  • Ethernet communications
  • Wireless communication 802.11 b/g
  • Assign images to category, presets, or function keys
  • Numeric Keypad
  • SSD memory 585MB
  • 80mm wide printing
  • Up to 150mm/sec print speed
  • PC-based operating system
  • Solid State hard drive
  • SD memory card slot
  • Compatible with third-party communication software, including Invatron’s PLUM®, ADC’s InterScale® and Droste's PCScale Manager

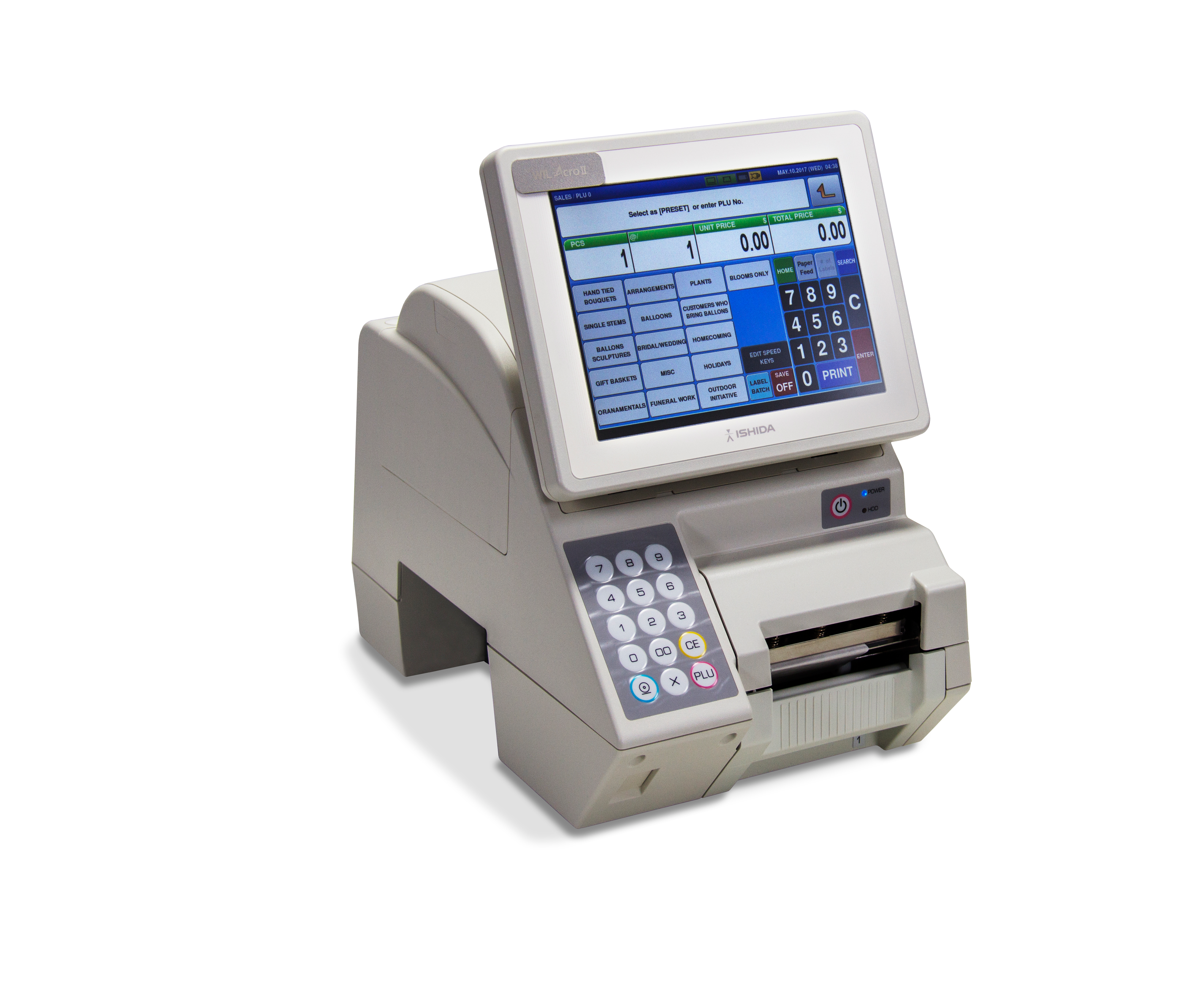

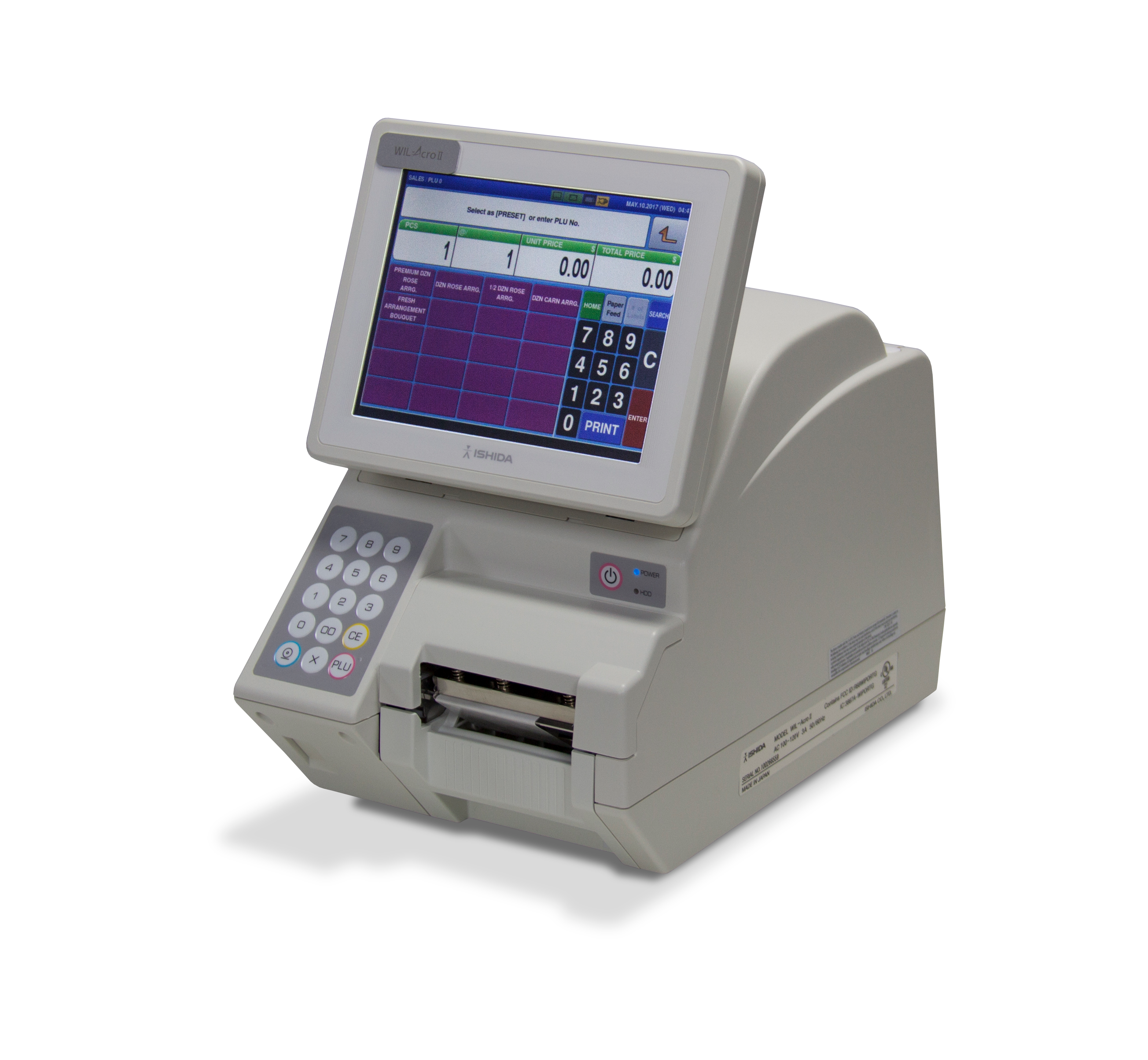

A Compact Labeler with the Features You Need

The WIL-Acro II compact label printer features ultra-fast printing speeds and a front-loading label cassette. The color touchscreen streamlines operation and its compact size is ideal for applications with limited space, such as floral counters and bakeries.

Supporting multiple label formats, the WIL-Acro II prints all legally required ingredient and nutritional information. Productivity is also increased immensely with a label batching feature which accumulates and prints multiple labels for several different items. A full-color touchscreen, sleek design and custom label features make the WIL-Acro II an impressive solution for all versatile labeling needs.

Operating Environment:
Temperature: 32 °F to 104 °F (0 °C to 40°C)
Humidity: 20% to 85% (no condensation)

Display Unit:
8.4 in TFT color display with back light backlight (800 × 600) dots

Display Items:
Unit price: Five-digits
Total price: Six-digits
Photo images for categories, presets
and function keys

Memory:
SSD memory 585MB

Communications:
Static or DHCP TCP/IP 100 Base T
Ethernet
1G (auto duplex) wireless WEP WPA
WPA2

Print Head:
Direct thermal 3 in (76 mm)

Print Speed:
Up to 6 in (150 mm) per second

Input/Output:
LAN × 1 channel
USB × 4 channel
SD card × 1 channel
(for transaction data)

Label Size:
Width: 1.5 to 3.1 in (38 to 80 mm)
Length: 1.2 to 7.9 in (30 to 200 mm)

Label Roll:
Inside diameter: 1.6 in (40 mm) min
Outside diameter: 3.9 in (100 mm) max



Label Backing Paper:
Width: Up to 3.3 in (84 mm)

Weight:
42 lb

Power Supply:
AC110 to 120V, 60Hz, 4A

Power Consumption:
Stand-by: 50W
In operation: 120W

Classification:
UL listed

Warranty:
One-year limited

Resources / Downloads

Title Download Email
Ishida WIL-Acro II Labeler Catalog Page Download Email

Title Download Email
WIL-Acro II Cassette Unit Replacements Parts Page Download Email
WIL-Acro II Controller Unit Replacements Parts Page Download Email
WIL-Acro II Main Body Unit and Wiring Replacements Parts Page Download Email
WIL-Acro II Printer Unit Replacements Parts Page Download Email

Title Collateral Wizard Request Download Email Category
Retail Systems Literature Request Download Email Retail Accessories|Retail Equipment|Retail Labelers
WIL-Acro II Compact Labeler Request Download Email Retail Equipment|Retail Labelers

Title View Download Email Category
Rice Lake/Ishida Retail Overview View Download Email Retail Equipment

Parts

Part # Description List Price Cart
170101 Printer,Bakery Wil-Acro2 w/label cassette, PC Based, Color Touch Screen, Wireless RF Card, Wil-Acro II 115VAC Ishida

List Price: $4,748.00

Options

Ishida WIL-Acro II Compact Labeler Options

Part # Description List Price Cart
87514 Retail Scale OPT,Label Cassette SR-2000A IL-2000SA Wil-Acro II Ishida

List Price: $235.00

Communication

Manuals and Service Tools

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
