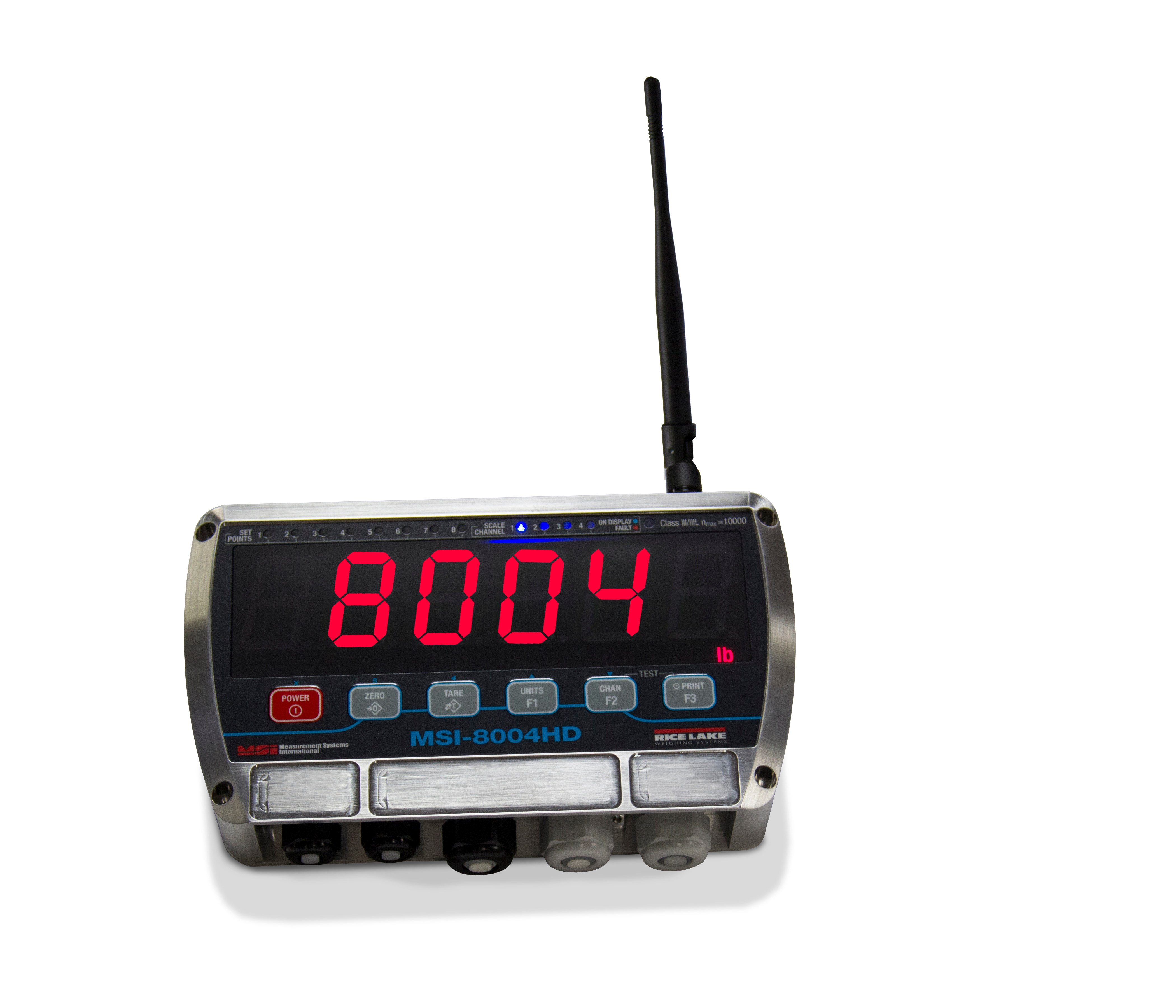

MSI-8004HD Indicator/RF LED Remote Display

  • LED display
  • IP65 rugged milled aluminum enclosure
  • Backlit membrane keypad for user functioning and controls
  • Tilt bracket included
  • Color changing display (via setpoints)

Options
(Contact MSI for application consultation)

  • Expanded relay outputs
  • Battery pack for mobile operation
  • Second radio module for additional network connectivity

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW

WARNING: Cancer and Reproductive Harm California Proposition 65

High-visibility, LED Overhead Weighing Controller

The MSI-8004HD has all of the heavy duty versatility of the MSI-8000HD with the added benefit of extreme high visibility in indoor and outdoor applications. The MSI-8004HD features 1.5-inch high characters on its LED display. The display is available in either red/green, allowing the controller to be clearly visible in many environments. The red/green display can be configured to change color based on weight and setpoint conditions, making the MSI-8004HD a natural fit for safety-critical industrial applications.

The milled anodized aluminum, IP65-rated enclosure is mountable in either a direct panel mount or included tilt stand. The MSI-8004HD is highly adaptable for integration with overhead crane weighing systems, providing visibility for crane cab and floor operators. The MSI-8004HD is compatible with all MSI-ScaleCore™ crane scales, dynamometers and TranSend™ systems. The meter version can also be used with any standard load cell or scale base, supporting up to four independent measurement channels.

Rugged Communication

Wi-Fi, Bluetooth® or serial RF options are available for direct connections to networks and computers. The MSI-8004HD includes user-definable function keys, and optional relays for safety, operator interfaces and process work flow. The MSI-8004HD meter can also be a functional weigh controller with the inclusion of a precision, four-channel multi-deck 24-bit A/D.

Power:
90 to 267 VAC, 9 to 36 VDC, 18 to 72 VDC, 120 to 300 VDC

Excitation Voltage:
4.8 V current limited and over-voltage protected

Functions:
Peak hold, high resolution, total, view total net/gross, units switching

Units:
Pounds and kilograms

Channels:
1, 2, 3, 4, TTL

RF Remote Channels:
Up to 4 remote sensors monitored individually, in pairs or sum all (non-A/D version only)
(when used with TranSend™)

Service Counters:
A/D version only

A/D Inputs:
Four independent or summing load cell inputs

Relays:
Two 5 V coil, 250 VAC, 5 A relays

Filtering:
Off, Low, Hi-1, Hi-2

RF Radio Link:
2.4 GHz 802.15.4, optional second channel for Serial RF, 802.11 Wi-Fi

RF Effective Range:
Typically 100 to 300 ft, line of sight; for longer range consult factory

Communication Ports
Two RS-232 hardwired communication ports

Annunciators:
Stable, COZ, peak, kg, kN. lb, M, ton, setpoint, function LEDs

Display:
Six-digit, 1.5 in (38 mm) LED display with red/green/orange coloring

Keys/Buttons:
On/Off, Zero, Tare, Print and two user-defined keys

Temperature Range:
Operating: -40 °F to 140 °F (-40 °C to 60 °C)
Certified: 23 °F to 104 °F (-5 °C to 40 °C)

Rating/Material:
NEMA Type 4, IP65 milled anodized aluminum

Warranty:
One-year limited

Approvals:
NTEP 17-036
Measurement Canada AM-6068

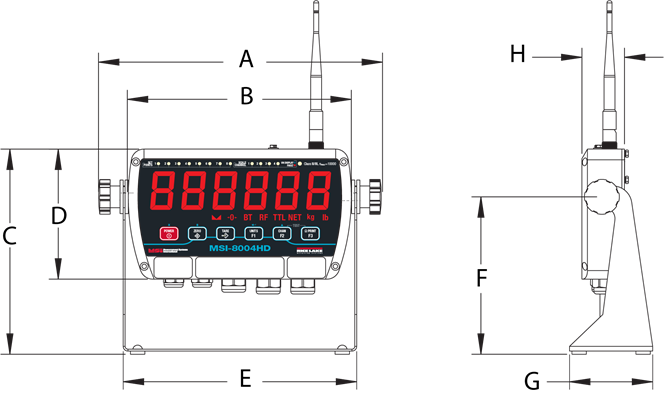

 Dimensions (With Tilt Stand)
 A 11.10 in (282 mm)   E 9.13 in (232 mm)
 B 8.76 in (223 mm)  F 6.16 in (156 mm)
 C 8.02 in (204 mm)  G 3.25 in (83 mm)
 D 5.09 in (129 mm)  H 1.66 in (42 mm)



Resources / Downloads

Title Download Email
MSI-8004HD Indicator/RF LED Remote Display Catalog Page Download Email

Title Version Revision Download Email Category Archived
MSI-8004HD RF Indicator Technical Manual A Download Email MSI Crane Scales No
MSI-8004HD RF Remote Display Technical Manual A Download Email MSI Crane Scales No
MSI-8000HD and MSI-8004HD Expanded Relay Option Kit Addendum Download Email MSI Crane Scales No
ScaleCore Connect Software Manual B Download Email MSI Crane Scales|Overhead Weighing Systems No

Title Download Email
Overhead Weighing Systems Questionnaire Download Email

Title Download Email
MSI-8004HD Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
Crane Scale Selection Guide Request Download Email MSI Crane Scales|Overhead Weighing Systems
MSI-8004HD Indicator/RF LED Remote Display Literature Request Download Email MSI Crane Scales
The Overhead Weighing Solutions Buyer's Guide Request Download Email Systems Integration/Load Cells|Tension Dynamometers|MSI Software|MSI Aircraft Load Monitoring|MSI Crane Scales|Overhead Weighing Systems
6 Step Integrated Crane Weighing Component Selector Guide Request Download Email MSI Crane Scales

Title Version Size Release Date Download Email
ScaleCore Connect 2.02 49 MB 06/05/2023 Download Email

Title View Download Email Category
Ensure Safety with MSI View Download Email Overhead Weighing Systems|MSI Crane Scales|Systems Integration/Load Cells|Hanging Scales|Weight Indicators|MSI Software|MSI Aircraft Load Monitoring
MSI-8004HD Indicator/RF Remote Display Overview View Download Email Overhead Weighing Systems
