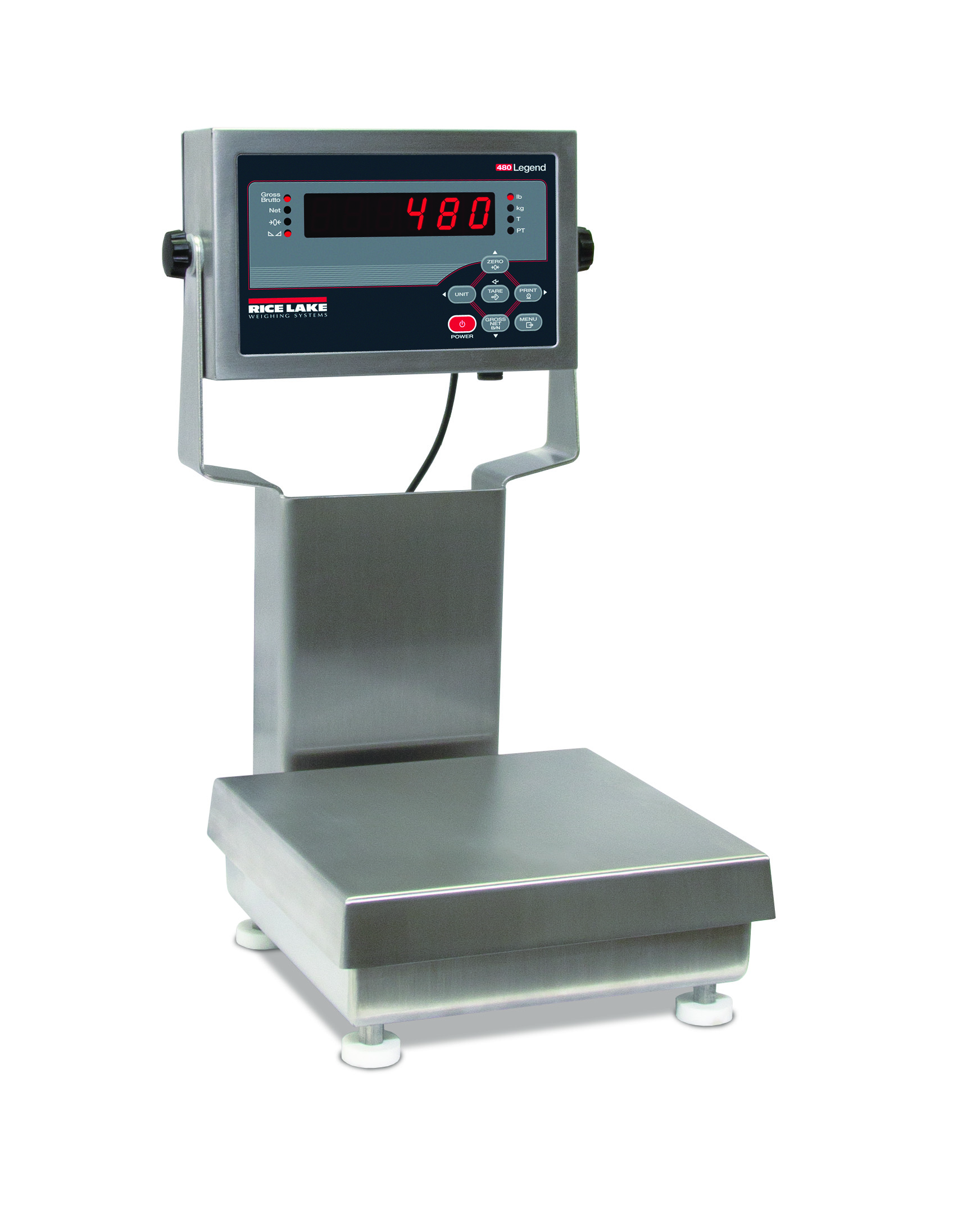

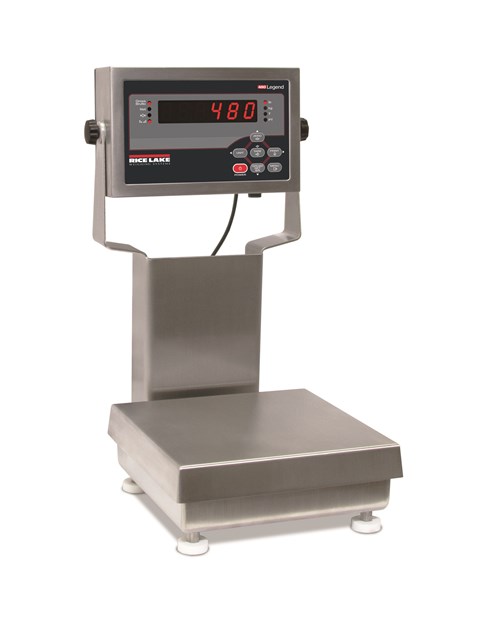

Ready-n-Weigh Bench Scale System CW-90XB Scale Base 480/480 Plus Indicator

  • Package includes scale with IP69K stainless steel hermetically sealed load cell with an indicator and 12-inch
  • Factory calibrated, with indicator setup and configured for 5,000 divisions
  • Scale includes rubber feet to provide exceptional traction and avoid scratching surfaces along with removable top cover for ease of cleaning
  • AC Power 100 to 240 VAC
  • Numeric keypad (480 plus)
  • Battery backed time and date
  • Standard RS-232 serial ports for connecting to peripherals
  • Ethernet TCP/IP, sold as an option

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW ULCUS CE Mark

WARNING: Cancer and Reproductive Harm California Proposition 65

Complete Scale Package

The CW-90XB Ready-n-Weigh Bench Scale System is a complete bench scale, indicator, and column package. Match the CW-90XB light-capacity industrial bench scale base with one of Rice Lake’s indicators to fit your application. Available in a range of low- to mid-size dimensions and capacities up to 100 pounds.  Each scale package arrives factory calibrated for quick setup.

Load Cell, NTEP Certified:
IP69K stainless steel and hermetically sealed

Scale Construction:
304 stainless steel

Maximum Overload:
180% to 200% depending on capacity

Overload Protection:
Five-point, independently adjusted

Scale Frame:
AISI304L, straight line finish, Ra = 45 +/- 10

Scale Cover:
AISI304L, straight line finish, Ra = 45 +/- 10

Cable Length:
34 in



Compensated Temperature Range:
14 °F to 104 °F (-10 °C to 40 °C)

CW-90XB Approvals:
NTEP CC 95-072, Class III 5,000 d
Measurement Canada AM-5082
Load cell is FM approved

Warranty:
Three-year limited (includes water ingress)

Communication Ports:
Com 1: RS-232 full duplex
Com 2: RS-232 full duplex or 20 mA simplex, continuous
Both ports 1200, 2400, 4800, 9600, 19200, 38400 baud seven or eight data bits, even, odd or no parity

Optional Ethernet and USB Board:
USB five-pin header for PC, printer or flash drive.
Ethernet TCP/IP, RJ45 jack, server and client ports.

Display:
LED display 0.8 in (20 mm), six-digit, seven-segment

Status Annunciators:
Gross, net, center of zero, standstill, lb, kg, tare, preset tare

Keys/Buttons:
Flat membrane panel, embossed keys, tactile feel

Rating/Material:
Enclosure: NEMA Type 4X/IP66, heavy-gauge stainless steel

Approvals:
NTEP CC 12-123
Measurement Canada AM-5892
CE Marked
UL/cUL Listed

Warranty:
Two-year limited

480/480 Plus
10 × 10 in
A 19.50 in (495 mm) E 9.25 in (235 mm)
B 10.25 in (260 mm) F 4.25 in (108 mm)
C 14.53 in (369 mm) G 10.25 in (2605 mm)
D 13.25 in (337 mm)
12 × 12 in
A 19.50 in (495 mm) E 9.25 in (235 mm)
B 12.25 in (311 mm) F 4.25 in (108 mm)
C 16.53 in (420 mm) G 12.25 in (311 mm)
D 13.25 in (337 mm)



Resources / Downloads

Title Download Email
Ready-n-Weigh CW-90XB/480 Catalog Page Download Email

Title Version Revision Download Email Category Archived
CW-90B and CW-90XB Technical Manual A Download Email Checkweighers|Bench Scales|Indicators / Controllers|Weight Indicators No

Title Collateral Wizard Request Download Email Category
CW-90XB/480 Ready-n-Weigh Bench Scale Package Request Download Email Bench Scales|Complete Scale Package

Title View Download Email Category
Overload Protection with BenchMark Bench Scales View Download Email Bench Scales

Parts

480 Package 115 VAC, LED, US Plug-Type B

Part # Description List Price Cart
201241 Scale PKG, CW-90XB-480 10x10 5 lb/2.5 kg with 12 inch column 115VAC SST

List Price: $2,042.00

201242 Scale PKG, CW-90XB-480 10x10 10 lb/5 kg with 12 inch column 115VAC SST

List Price: $2,042.00

201243 Scale PKG, CW-90XB-480 10x10 25 lb/10 kg with 12 inch column 115VAC SST

List Price: $2,042.00

201244 Scale PKG, CW-90XB-480 12x12 25 lb/10 kg with 12 inch column 115VAC SST

List Price: $2,132.00

201245 Scale PKG, CW-90XB-480 12x12 50 lb/25 kg with 12 inch column 115VAC SST

List Price: $2,132.00

201246 Scale PKG, CW-90XB-480 12x12 100 lb/50 kg with 12 inch column 115VAC SST

List Price: $2,132.00

480 Package 90-264 VAC, LED, Euro Plug-Type E

480 Plus Package 115 VAC, LED, Numeric keypad, US Plug-Type B

480 Plus Package 90-264 VAC, LED, Numeric keypad, Euro Plug-Type E

Options

No options found for this product
