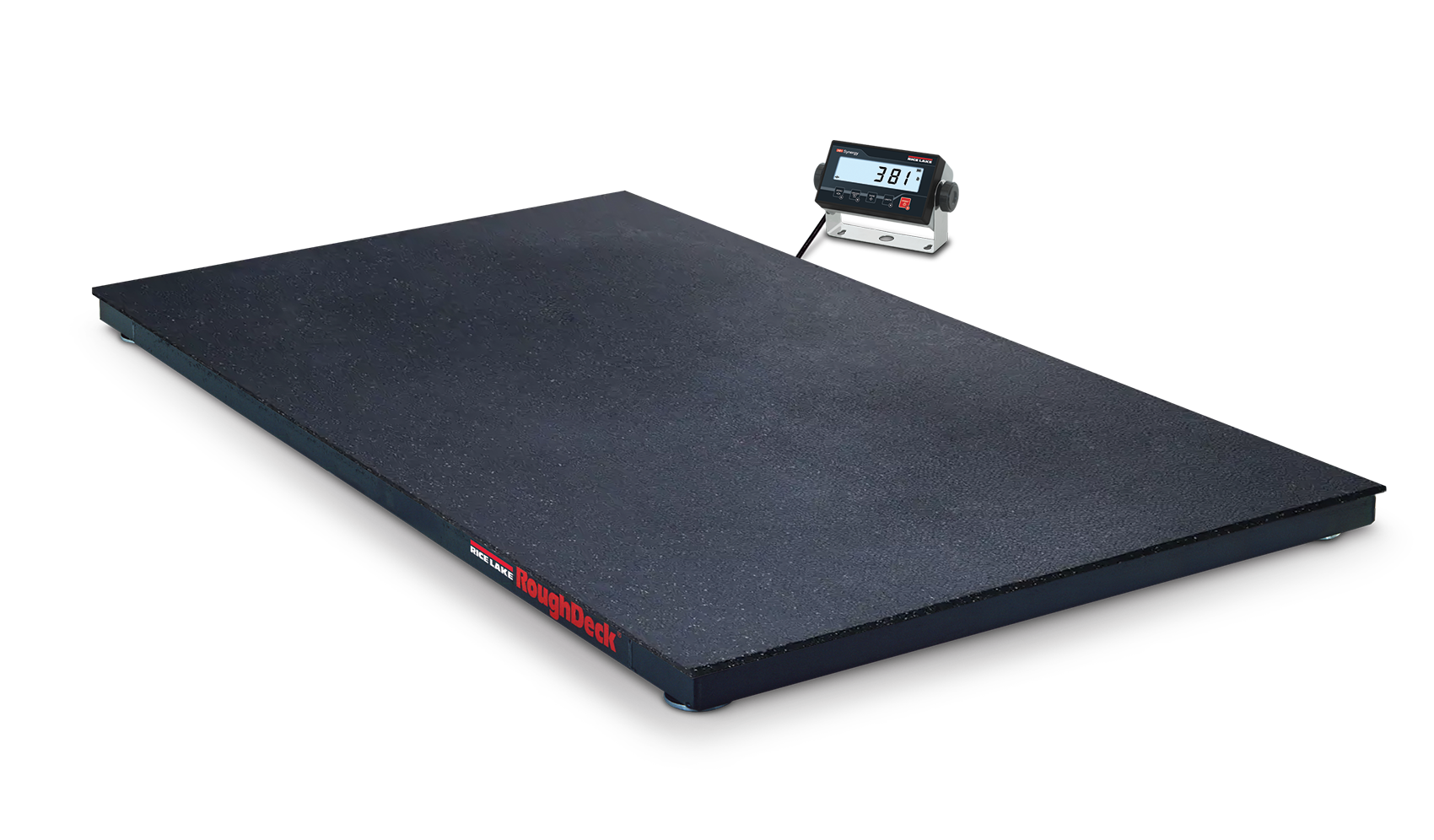

RoughDeck® EQ Equine Floor Scale and Indicator Package

Request Quote

  • Package includes 4 ft × 6 ft × 4.25 in floor scale with stall mat, 20ft of SURVIVOR EL147HE hostile environment load cell cable and indicator
  • Mat thickness 0.75 in

Scale

  • Heavy-duty design with structural steel channel frame
  • Stall mat to reduce noise and instill equine comfort
  • 4 adjustable stainless steel SUREFOOT™ support feet
  • Powder-coated black matte finish

Indicator

  • LCD backlit display for a variety of environments
  • Battery backed time and date
  • Communication ports for connecting to a variety of peripherals

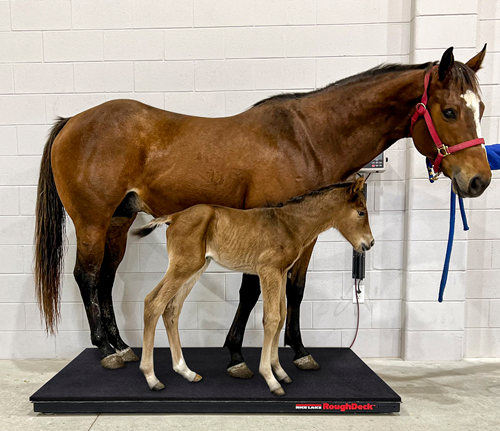

Maintain Equine Health with Reliable Weighing

The RoughDeck EQ equine scale is designed specifically for the safe and reliable weighing of horses or other large animals. The heavy-duty removable horse mat provides extra cushion comfort and is noise-reducing, creating a calm weighing environment.

End Load Capacity:
100% full scale at 2,500 lb

Load Cells:
Model RL32018 alloy steel environmentally sealed IP66

Junction Box:
Side access, TuffSeal JB4SS stainless steel, NEMA Type 4X with a signal card

Feet:
Stainless steel SUREFOOT, adjustable (+0.25 in or -0.125 in) for leveling the scale

Finish:
Powder coat painted, black matte

Cable Length:
20 ft (6.1m) for connecting junction box to indicator

Threaded Eyebolt:
One lifting hole located in center of scale for easy install (requires 1/2-20NF eyebolt, not included)

Warranty:
Two-year limited

Power:
Line voltages: 100 to 240 VAC
Frequency: 50/60 Hz
DC voltages: n/a

Communication Ports:
Com 1: RS-232 full duplex
Com 2: RS-232 full duplex or 20 mA simplex, continuous
Both ports 1200, 2400, 4800, 9600, 19200, 38400 baud seven or eight data bits, even, odd or no parity

Optional Ethernet and USB Board:
USB five-pin header for PC, printer or flash drive
Ethernet TCP/IP, RJ45 jack, server and client ports

Display:
LCD backlit, transmissive/ transflective, 0.8 in (20 mm), six-digit, seven-segment

Annunciators:
Gross, net, center of zero, standstill, lb, kg, tare, preset tare

Keys/Buttons:
Flat membrane panel, embossed keys, tactile feel

Rating/Material:
Enclosure: NEMA Type 4X/IP66, heavy-gauge stainless steel

Approvals:
NTEP CC 12-123
Measurement Canada AM-5892C
CE Marked
cULus Listed

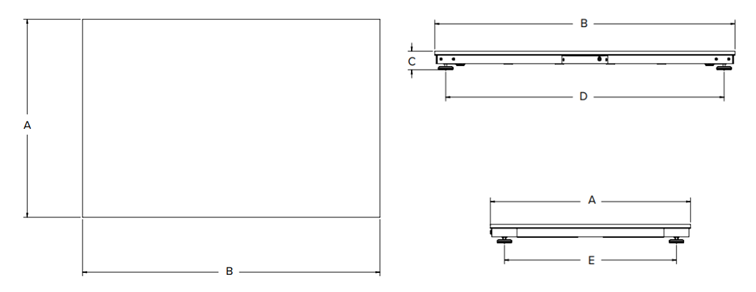

Dimensions 4 ft x 6 ft x 4.25 in with No Optional Guide Rail
A 48.00 in D 66.76 in
B 72.00 in  E 41.25 in
C 4.25 in

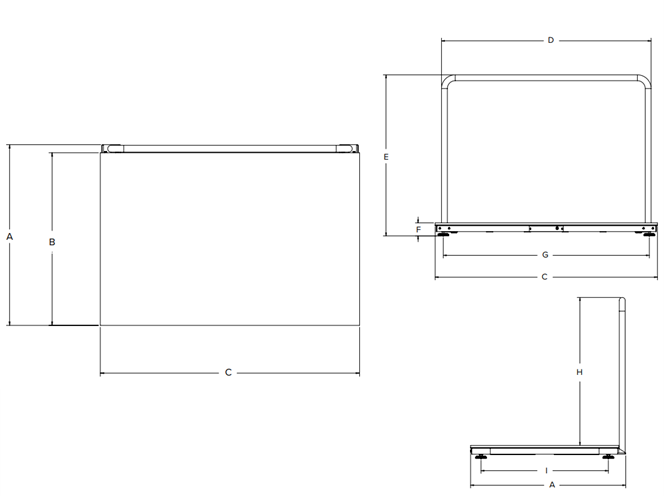

Dimensions 4 ft x 6 ft x 4.25 ft with One Optional Guide Rail
A 50.25 in F 4.25 in
B 48.00 in G 66.76 in
C 72.00 in H 48.00 in
D 67.90 in I 41.25 in
E 52.26 in

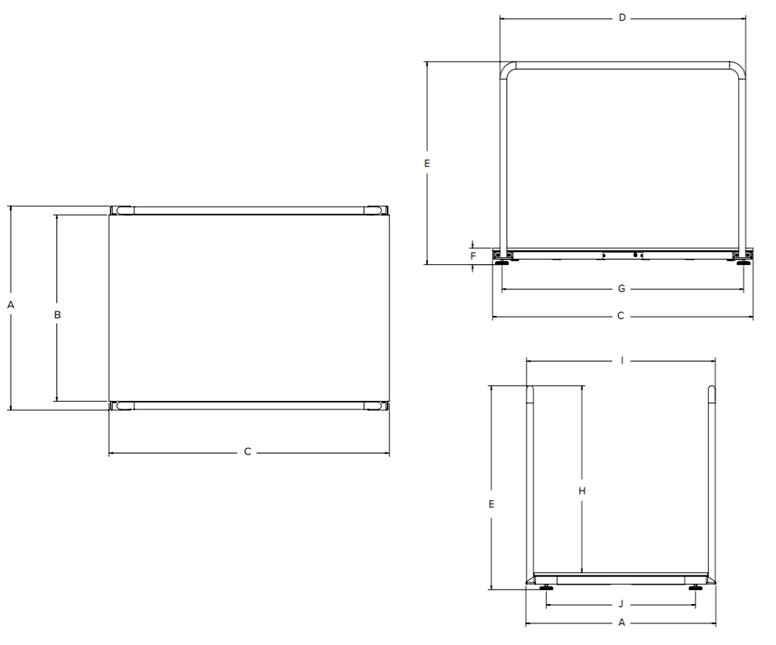

Dimensions 4 ft x 6 ft x 4.25 ft with Two Optional Guide Rails
A 50.25 in F 4.25 in
B 48.00 in G 66.76 in
C 72.00 in H 48.00 in
D 67.90 in I 52.15 in
E 52.26 in J 41.25 in

Resources / Downloads

Title View Email Category Type
Stable Weight View Email Equine Scales Application Story

Title Download Email
RoughDeck EQ Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
RoughDeck EQ Floor Scale and Indicator Package Download Email

Parts

Part # Description List Price Cart
207811 Scale PKG, Roughdeck EQ 48x72-2500lb Roughdeck EQ/482 Legend 115VAC Factory Calibrated 2500lb x 0.5lb

List Price: $3,500.00

Options

Part # Description List Price Cart
12839 Weight,GHDL 50lb ASTM Class 6 Cast Iron Painted, Density 7.2

List Price: $150.00

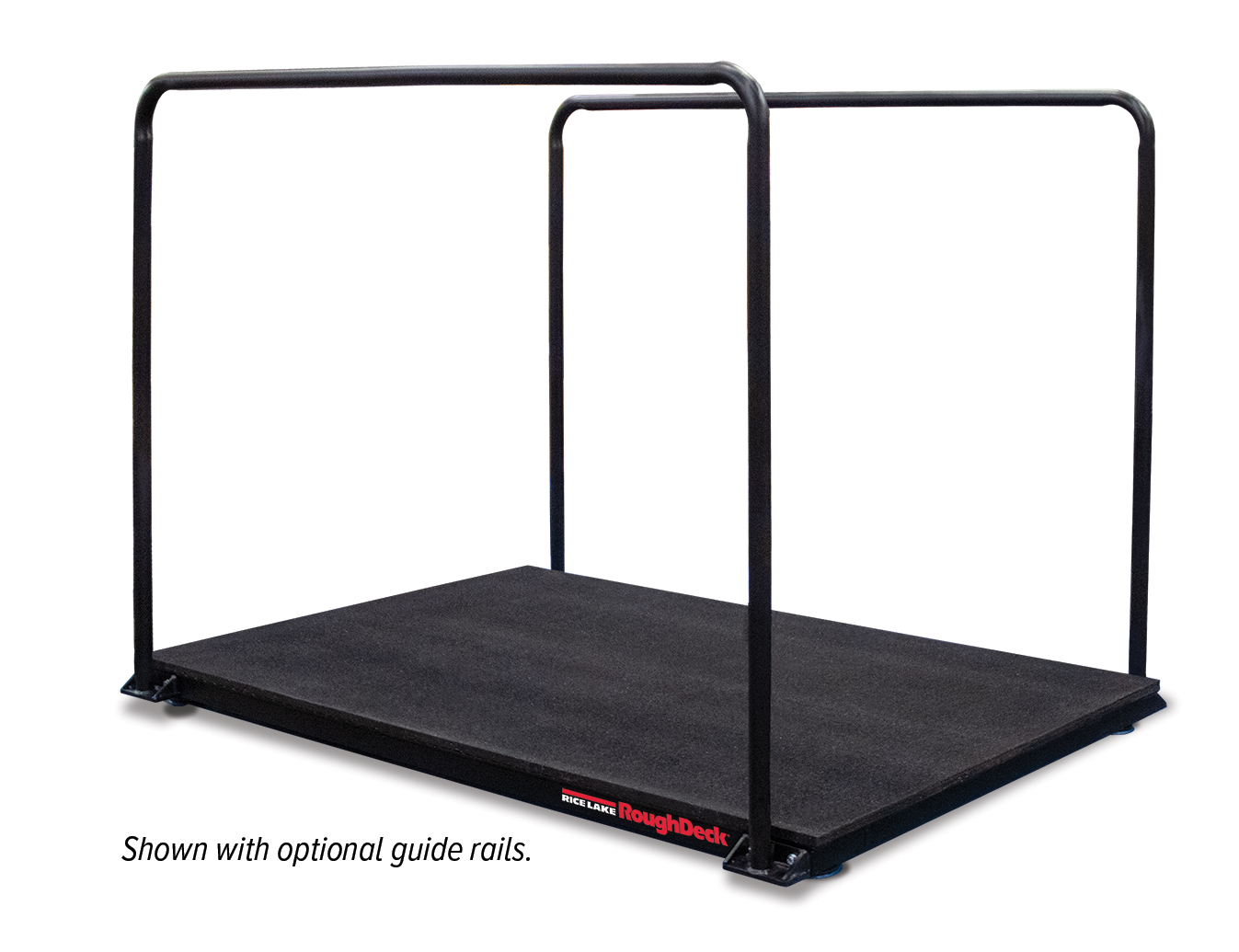

207812 Guiderail, Roughdeck EQ 5.66ft long x 4.36ft high, includes one rail, mounting hardware black matte finish

List Price: $295.00

18777 Mounting Plate Set, Roughdeck 1,000-10,000 lb Steel Painted

List Price: $38.00

Consult Access ramps

Call for price

Consult Smooth deck instead of diamond safety tread plate

Call for price
