SURVIVOR® RL1700 HE Weigh Modules

Complete Kit Includes

  • One JB4SS NEMA Type 4X stainless steel signal-trim junction box
  • Three or four RL1700 HE stainless steel compression mounts
  • Three or four RL9018SS (5 to 250 kg) or RLHTO (500 to 5,000 kg) stainless steel, hermetically sealed single-ended beam load cells
  • 25 ft of our hostile environment EL147HE SURVIVOR load cell cable

Standard Features

  • All stainless steel construction
  • Hermetically sealed, stainless steel load cells, IP66/68, guaranteed waterproof
  • OIML certified load cells from 5 to 5,000 kg
  • Bolt-in-place design; module bolts directly to tank leg without requiring additional load buttons or mounting plates
  • Self-checking with lift-off/tip-over protection and jacking/shipping bolts
  • Load cell is isolated from overload in all directions
  • Weldless construction retains less residue and allows fast, thorough cleaning
  • Two-year limited warranty

Applications

  • Multi-ingredient micro-batching
  • Meat and poultry processing
  • Batching/blending
  • Dye/ink blending

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo OIML Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Weigh Modules Ideal for Moisture-Laden Environments

The SURVIVOR RL1700 HE weigh module offers precision-machined, weldless construction to maximize pressure washdown cleaning effectiveness. This design, coupled with integral jacking/shipping bolts, eases installation and minimizes maintenance costs. OIML C3-certified load cells in capacities from 5 kg to 5,000 kg provide accurate, consistent weighments. Ideal for multi-ingredient micro-batching applications, the RL1700 HE weigh module provides exceptional performance in hostile environments. The unique design of the RL1700 HE weigh module isolates the load cell from side loads and overloads, minimizing load cell mechanical damage and eliminating the need for extraneous hardware. The RL1700 HE weigh module offers a guaranteed waterproof rating to ensure reliable performance in moisture-laden environments.

Applications:

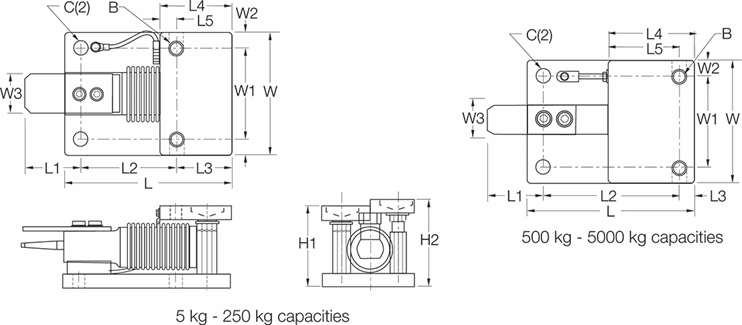

Rated Capacity C B *H1 **H2 L L1 L2 L3 L4 L5 W W1 W2 W3
kg/mm
5 to 250 12.9 1/2-20 UNF 80.0 86.1 131.8 63.7 76.0 42.0 56.0 14.0 96.0 70.0 12.9 25.4
500 to 2,000 12.9 5/8-18 UNF 101.6 109.4 165.0 70.0 129.5 14.9 80.0 59.9 110.0 70.0 20.0 31.7
5,000 20.0 3/4-10 UNF 135.0 143.0 215.0 81.0 161.0 20.0 90.0 70.5 150.0 90.0 30.0 40.0
* In weighing position     ** In jacked-up position for load cell shipping or removal

Resources / Downloads

Title Download Email
RL1700 HE Weigh Module Catalog Page Download Email

Title Version Revision Download Email Category Archived
SURVIVOR 1700HE Weigh Module Kit Installation Guide C Download Email Weigh Modules No
Load Cell and Weigh Module Handbook B Download Email Load Cells|Weigh Modules No

Title Download Email
Weigh Module Application Download Email

Title Download Email
SURVIVOR 1700HE Weigh Modules Replacement Parts Page Download Email

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules
Your First Choice in Load Cells Download Email Load Cells

Title View Download Email Category
Custom Weigh Modules and Load Cell Mounts View Download Email Weigh Modules|Load Cells|Load Cell Hardware|Hardware

Parts

Single Module (Includes Load Cell)

Part # Description List Price Cart
32687 Mount ASSY,RL1700HE-5kg SST Compression Incl RL9018SS-5kg

List Price: $975.00

32688 Mount ASSY,RL1700HE-10kg SST Compression Incl RL9018SS-10kg

List Price: $975.00

32689 Mount ASSY,RL1700HE-20kg SST Compression Incl RL9018SS-20kg

List Price: $975.00

32690 Mount ASSY,RL1700HE-50kg SST Compression Incl RL9018SS-50kg

List Price: $975.00

32691 Mount ASSY,RL1700HE-100kg SST Compression Incl RL9018SS-100kg

List Price: $975.00

32692 Mount ASSY,RL1700HE-200kg SST Compresssion Incl RL9018SS-200kg

List Price: $975.00

32693 Mount ASSY,RL1700HE-250kg SST Compression Incl RL9018SS-250kg

List Price: $975.00

32974 Mount ASSY,1710HE 500kg SST HS Compression Incl RLHTO-C3-500kg

List Price: $1,187.00

32973 Mount ASSY,1710HE 1000kg SST HS Compression Incl RLHTO-C3-1t

List Price: $1,187.00

32972 Mount ASSY,1710HE 2000kg SST HS Compression Incl RLHTO-C3-2t

List Price: $1,187.00

32971 Mount ASSY,1700HE 5000kg SST Compression Incl RLHTO-C3-5t

List Price: $1,463.00

3-Module Kit

4-Module Kit

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
