Ishida Uni-3L2H Hanging Scale

  • Backlit alphanumeric LCD display (23 digits, 7 segments)
  • Dual-range weighing (0 to 15 x 0.005 lb/15 to 30 x 0.01 lb)
  • Side-load label
  • Fast printing speed (3.9 in/ 100 mm per second)
  • Meat nutrition and 2020 nutrition labeling
  • Multiple label formats
  • Static TCP/IP Ethernet communication
  • 94 one-touch preset keys, 188 presets (assign two items/key)
  • 2 MB memory
  • Proportional tare
  • Flash ROM for simple update of application software
  • Compatible with third-party communication software, including ADC’s InterScale and Invatron’s PLUM


Some approval documents are available to view by clicking the icons below.


WARNING: Cancer and Reproductive Harm California Proposition 65

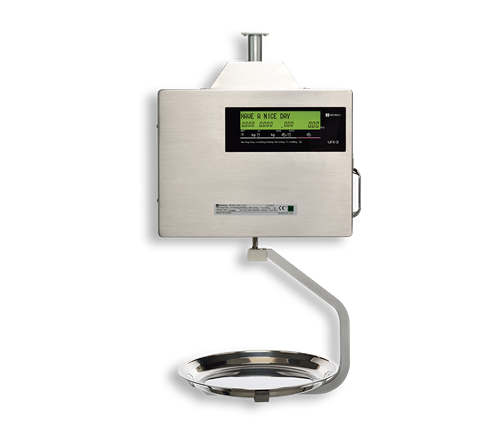

Hanging Meat and Produce Scale

Networking capabilities along with user-friendly operation make the Uni-3L2H printing, hanging scale ideal for seafood, meat and produce applications. The alphanumeric display and 188 programmable keys help provide easy operation. Choose from multiple label formats for increased productivity and versatility. With standard Ethernet or optional wireless connectivity, the Uni-3 offers extraordinary power at an exceptional value. Uni-3 is ideal for wet products such as seafood. The hanging platter keeps wet items away from the main scale body.


Capacity (Dual Range):
15 × 0.005 lb/15 to 30 × 0.01 lb

Weighing Resolution:
3,000 display divisions maximum

Display Types:
LCD, backlight, alphanumeric:
L2:192 x 16 DM +23 digits 7 seg

Display Items:
Tare: Four-digits
Unit price: Five-digits
Total price: Six-digits

Preset Keys:
Hanging model: 94 one-touch preset keys 188 presets (assign two tare/key)

Memory Capacity:
2 MB

TCP/IP 10/100 Base T Ethernet

14.1 in diameter

Printing Speed:
3.9 in (100 mm) per second

Direct thermal 2.2 in (56 mm)

Label Size:
Width: 1.5 to 2.5 in (38 to 64 mm)
Length: 1.2 to 6.8 in (30 to 174 mm)

Label Roll:
Inside diameter: 1.6 in (40 mm) min.
Outside diameter: 3.9 in (100 mm) max.

Label Backing Paper:
Width: Up to 2.6 in (66 mm)

Power Supply:
AC100 to 240 V, 50/60 Hz

Power Consumption:
Stand-by: 50 W
In operation: 100 W

NTEP CC 07-005

One-year limited

A 16.5 in (420 mm) D 5.7 in (146 mm)
B 31.5 in (800 mm) E 14.2 in (360 mm)
C 26.7 in (678 mm)
Mounting specifications
Pipe: 1.10 in outside diameter

Resources / Downloads

Title Version Revision Download Email Category Archived
Ishida Uni-3 Series Operator Manual, March 2021 C Download Email Retail Equipment No
Ishida Uni-3 Operation Quick Reference Download Email Retail Equipment No
Ishida Uni-3 Operator Keysheet: July 2015 Download Email Retail Equipment No

Title Download Email
Uni-3L2H Replacements Parts Page Download Email

Title Collateral Wizard Request Download Email Category
Retail Systems Literature Request Download Email Retail Accessories|Retail Equipment|Retail Labelers

Title Version Size Release Date Download Email
Ishida Uni-3 Main Program (December 2023) C2271Z C2271Z 9.3 MB 12/11/2023 Download Email

Title View Download Email Category
Rice Lake/Ishida Retail Overview View Download Email Retail Equipment
ScaleTalk: Changing the Label Roll on the Ishida Uni-3 Retail Scale View Email Retail Equipment
Uni-3: Programming Preset and Function Keys View Download Email Price Computing Scales|Retail Equipment
Uni-3: Store Name Print Configuration View Download Email Retail Equipment|Price Computing Scales


Part # Description List Price Cart
165204 Retail Scale, Uni-3L2 Hanging, LCD display, 0-15lbs x 0.005, 15-30lbs x 0.01 Integrated printer 115 VAC Ishida

List Price: $3,616.00


Ishida Uni-3L2H Options

Part # Description List Price Cart
109499 Option,platter BC-4000L2H Uni-3 with mounting braket 15.5in W x 11.2in D x 2.2in tall 4.75 quart capacity Ishida

List Price: $157.50

105346 Label,Roll Retail Blank DTL 64mm x 85mm (2.52 x 3.34) Small Core 425 LPR 12 RPC Ishida

List Price: $93.00


Manuals and Service Tools

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
