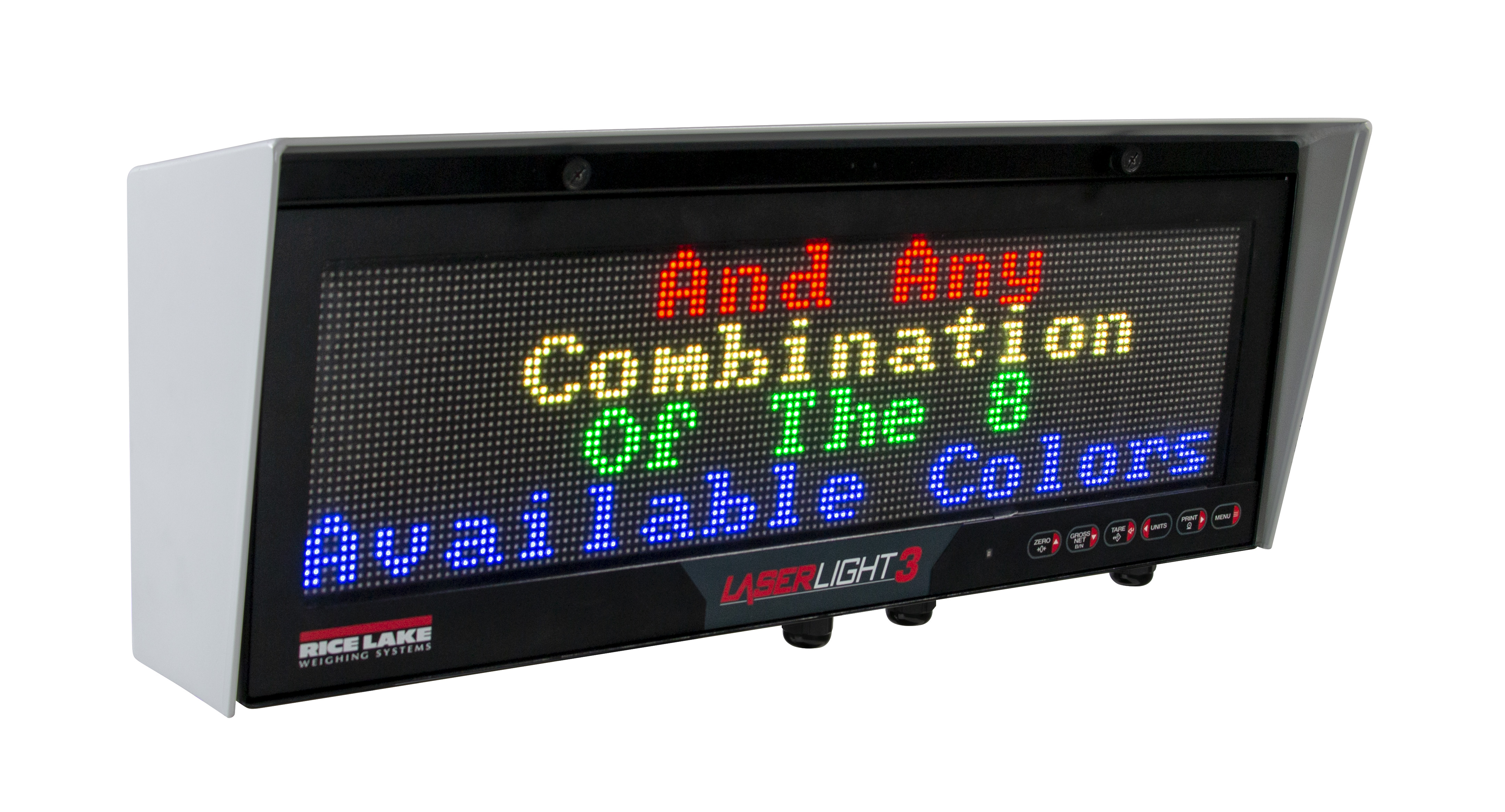

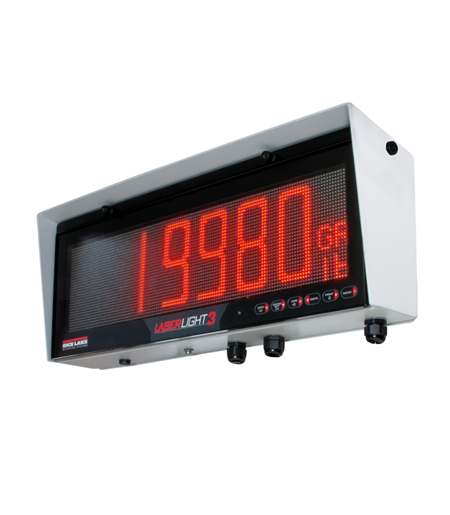

LaserLight3 Color Remote Display with Messaging

  • Vibrant 128- by 32-pixel LED color display with non-glare lens; high-intensity digits up to 5 inches tall
  • Color commands change background and foreground text
  • Auto Learn identifies and interprets the source weight data string for maximum compatibility with a wide range of indicators

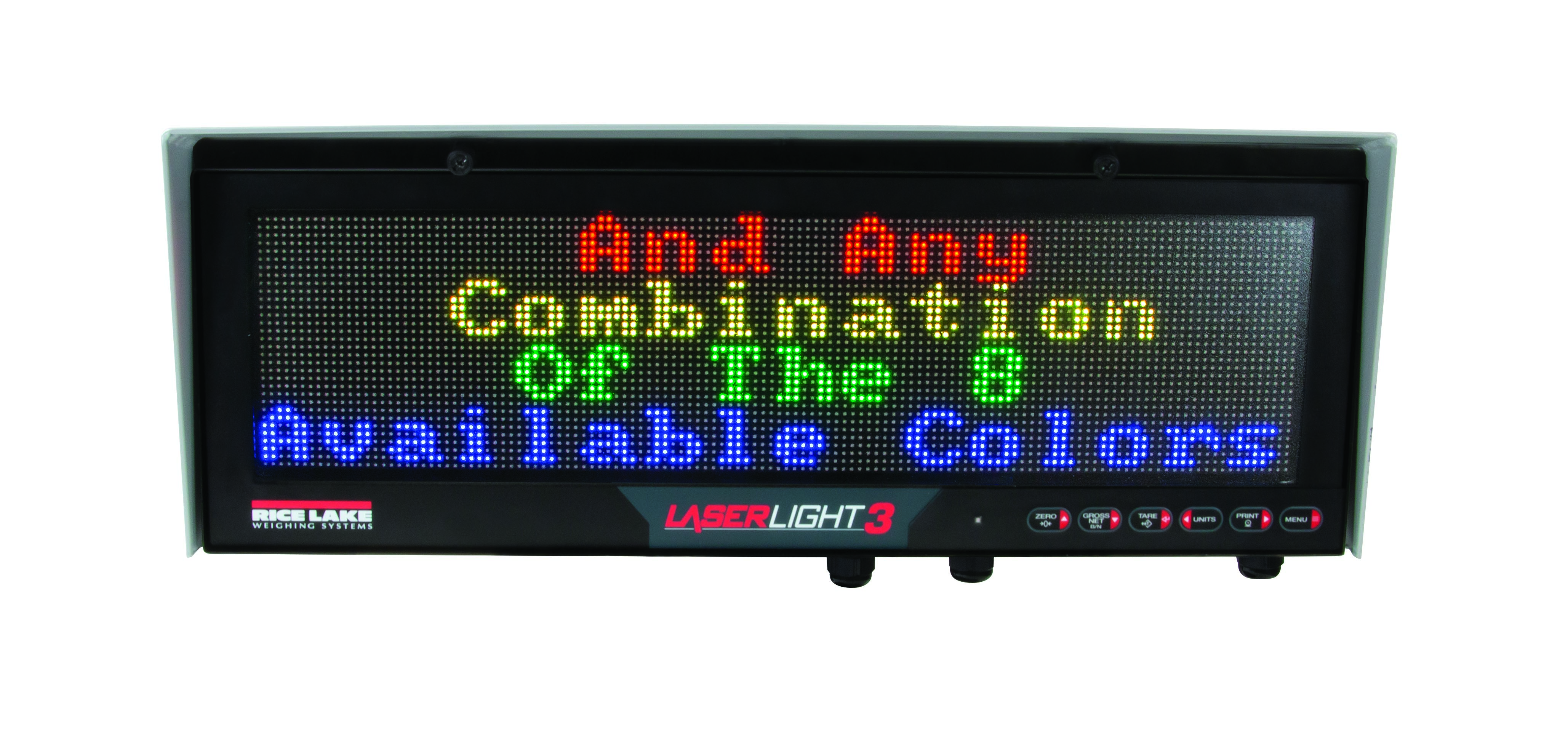

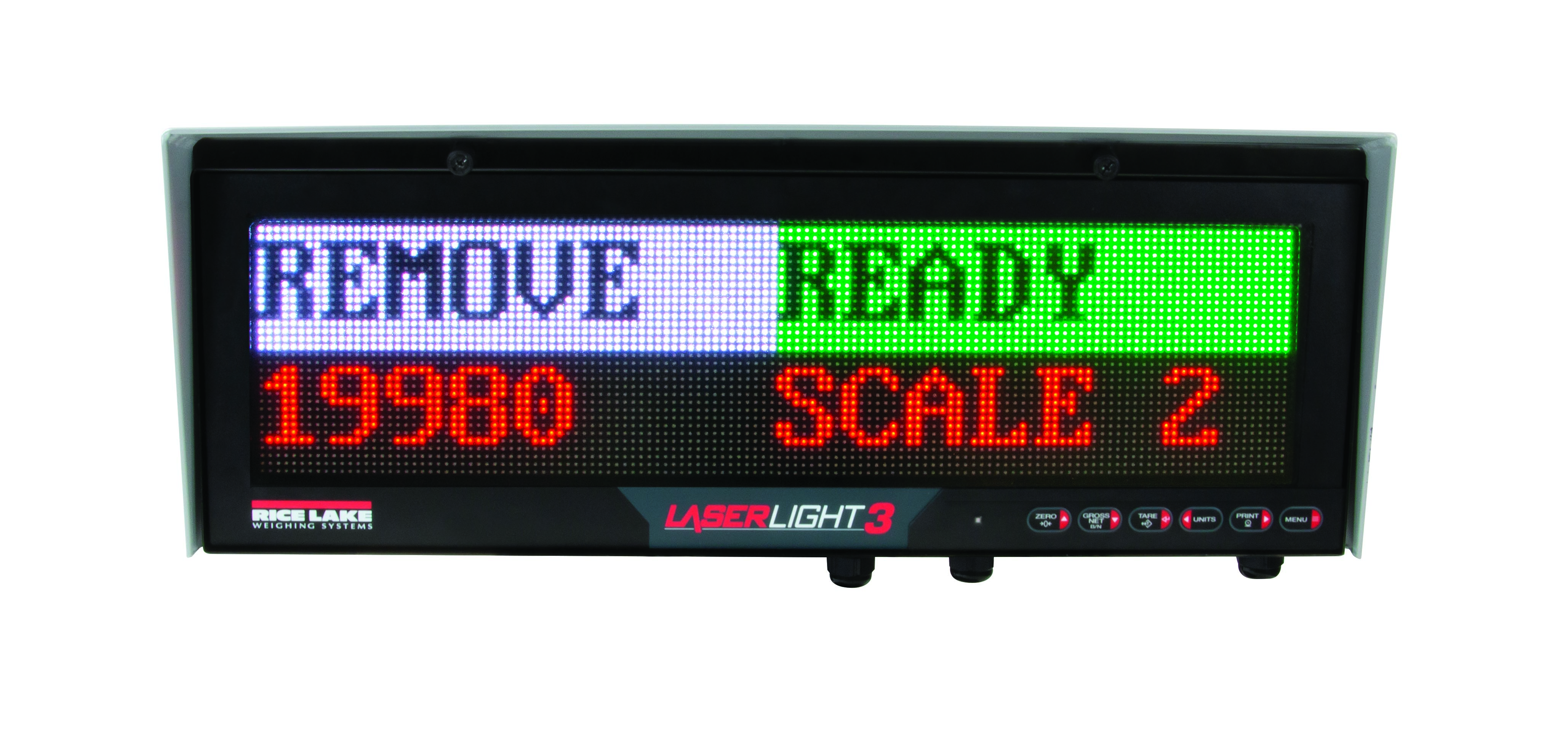

  • Versatile layout choices include mirror mode, 1-line, 2-line and quadrant format
  • Dynamic messaging views can scroll, slide or flash
  • Display stop/go light symbols/arrows with digits up to 4 inches tall
  • Selectable time/date when weight is at zero
  • Integrated weathertight keypad for sending configurable scale commands to the indicator
  • Durable IP66 enclosure with Gore-Tex® breather vent to inhibit internal moisture
  • RS-232, RS-422, 20 mA and Ethernet TCP/IP
  • Mounting options include VESA, flange and pole configurations

Options

  • Wireless LAN, Wi-Fi interface 802.11 a/b/g/n
  • Wireless interface, pair of ConnexLink radios and mount
  • Pole mount kit for 4 to 8 inch pole
  • VESA kit for 2-6 inch pole

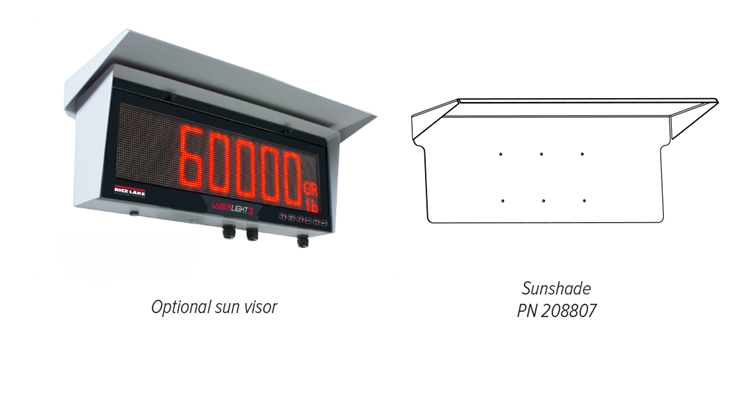

  • Sunshade visor, 8-inch painted steel

Power Consumption:
AC voltages: 100 to 240VAC; 50/60Hz
120 watt (120 VAC)
95 watt (12 VDC)

Output Interface:
Ethernet TCP/IP, independently configurable echo port

Input Data Format:
Baud Rate: 1200, 2400, 4800, 9600, 19200, 38400, 57600 and 115200 self-learning or configurable

Update:
Continuous or out-of-motion modes
Message interrupt mode

Digital I/O:
Four I/O read or set
5V logic

Communication Ports:
Ethernet TCP/IP, RS-232, RS-485, 20 mA passive loop
Optional ConnexLink™ wireless radio, WLan interface 802.11 a/b

Character Format:
7 or 8 data bits; even, odd, or no parity; 1 or 2 stop bits

Maximum Viewing Distance:
4-inch character: 100 ft (30 m)
5-inch character: 150 ft (46 m)

Viewing Angle:
160°

Display:
Bright, outdoor color LED lamps
128 × 32-pixel, 4 mm pitch
Decimal or comma indication
Weight display with units and mode
Message display 1, 2 or 4 lines
Stop/go and directional arrow

Keys/Buttons:
Integrated keypad



Time:
Software enable, 12- or 24-hour format

Date:
Software enable, US or ISO format

Dimensions:
(L x W × H)
25 × 10 × 6 in

Temperature Range:
Operating: -40 °F to 120 °F (-40 °C to 49 °C)

Rating/Material:
IP66 weathertight
Mild steel, powder-coated

Weight:
Without wall mount: 14.19 lb (7.81 kg)
With wall mount: 20.48 lb (10.66 kg)
With sunshade: 29.79 lb (14.88 kg)

Warranty:
Two-year limited

Dimensions
A 23.00 in (584 mm) E 5.00 in (127 mm)
B 10.10 in (256 mm) F 8.00 in (203 mm)
C 8.73 in (222 mm) G 25.02 in (636 mm)
D 5.87 in (149 mm)



Resources / Downloads

Title Download Email
LaserLight3 Color Remote Display Catalog Page Download Email

Title Version Revision Download Email Category Archived
LaserLight3 Series Remote Display Technical Manual B Download Email Remote Displays / Scoreboards No
LaserLight3 Remote Display Operator Quick Reference Guide A Download Email Remote Displays / Scoreboards No
LaserLight3 Remote Display Quick Start Guide A Download Email Remote Displays / Scoreboards No
LaserLight3 Wi-Fi Module Installation Setup A Download Email Remote Displays / Scoreboards No
LaserLight3 VESA Pole Mount Installation A Download Email Remote Displays / Scoreboards No
LaserLight3 ConnexLink Wireless Radio Installation B Download Email Remote Displays / Scoreboards No
LaserLight3 Visor Option Installation A Download Email Remote Displays / Scoreboards No
LaserLight Series Pole Mount Kit Installation Addendum D Download Email Remote Displays / Scoreboards No

Title Collateral Wizard Request Download Email Category
LaserLight3 Color Remote Display and Large-Indicator Display Request Download Email Remote Displays / Scoreboards

Title Version Size Release Date Download Email
LaserLight3 Firmware 1.01.00 887.7 KB 02/03/2023 Download Email

Title Version Size Release Date Download Email
Revolution Scale Software (v3.44) 3.44 224.2 MB 06/20/2023 Download Email

Title View Download Email Category
ScaleTalk: How to Set Up the LaserLight3 With RS-232 (Serial) Communication View Download Email
ScaleTalk: How to Use Manual Mode on the LaserLight3 View Download Email Indicators / Controllers|Remote Displays / Scoreboards

Parts

Part # Description List Price Cart
214825 Display,LaserLight3 LL3 Messaging Remote Display, 32x128 LED, 115-230VAC

List Price: $1,995.00

Options

Part # Description List Price Cart
208807 Sunshade,LaserLight3

List Price: $120.00

209118 Ind Opt,Wireless LAN Card RS232/WiFi Interface 802.11 A/B 10/100 XPico for LaserLight3

List Price: $220.00

212753 LaserLight3 RF Kit ConnexLink Transceiver Kit

List Price: $835.00

75856 Pole,Mount Kit LaserLight2 4 inch Remote Display & LaserLight3 , Summit Gray

List Price: $250.00

212745 Pole Mount,LaserLight3 Using VESA bracket 2-Inch To 6-Inch Poles

List Price: $90.00
