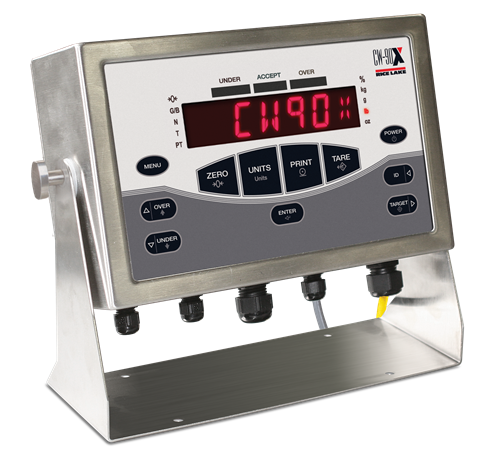

CW-90X Checkweigh Indicator

  • PreVent™ breather vent
  • Storage for up to 50 IDs
  • Unit of measure: kg, gm, lb, oz, lb/oz
  • LED display
  • Two full duplex serial ports
  • Configurable print formats
  • Audit trail tracking
  • Optional communications: Ethernet, USB or fiber optic
  • Four configurable digital I/O
  • Reflash memory to upgrade firmware
  • Auto print capability
  • Battery backed up time and date
  • Accumulator
  • Piezo keypad consisting of zero, units, print, tare, over, under, ID, target, enter, menu, power


Some approval documents are available to view by clicking the icons below.

NTEP Logo OIML Logo UL_Listed_C-US LOGO Measurementcanada Approved BW CE Mark LOGO NSF CMYK

WARNING: Cancer and Reproductive Harm California Proposition 65

Facing Hostile Environments

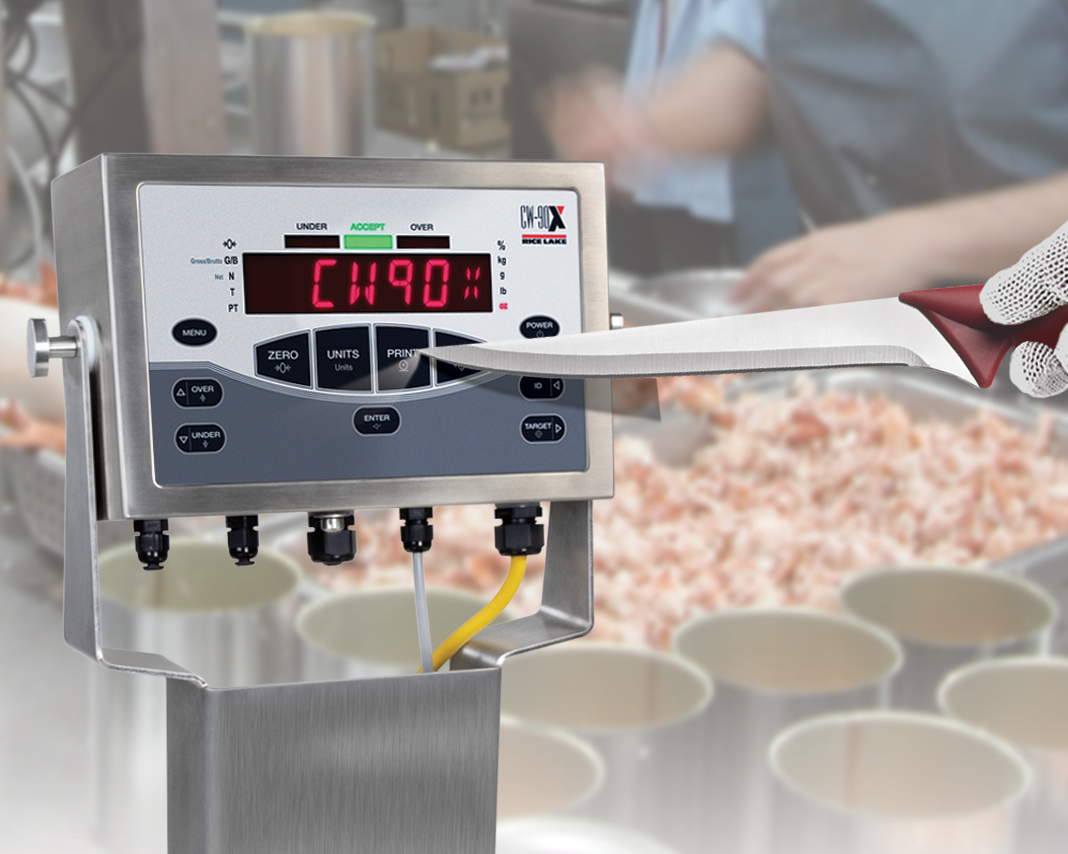

Made to withstand sharp knife-point contacts as well as contaminants and liquids, Rice Lake’s CW-90X features an amazingly tough piezo keypad. Its extra-strength material is the most durable in the industry, ensuring your scale will continue to work through any challenge.

Manufacturers with harsh production environments look for the IP69K rating to provide the highest level of
protection available. The CW-90X uses a hermetically sealed load cell and stainless steel indicator, which have both earned IP69K rating, guaranteeing protection from repeated high temp/high pressure washdowns. Complete with 304 stainless-steel construction, the CW-90X will help meet all of your HACCP and food industry requirements.

Line voltages: 115 to 230 VAC
Frequency: 50/60 Hz

Power Consumption:
1.5 A at 115 VAC (8 W)
0.75 A at 230 VAC (8 W)

Excitation Voltage:
+5 VDC 8 × 350 ohm or 16 × 700 ohm load cells

Analog Signal Input Range:
-0.5 mV/V to 4.5 mV/V

Analog Signal Sensitivity:
0.3 uV/graduation minimum
1.5 uV/graduation recommended

A/D Sample Rate:
7.5 to 960 Hz software selectable

Display: 100,000 counts

System Linearity:
± 0.01% full scale

Digital I/O:
Four channels on CPU board

Circuit Protection:
RFI, EMI, ESD protection

Designators for percent, kg, gm, lb, oz, center of zero, G/B, N, T, PT, neg, motion

Large 0.8 in 14-segment, six-digit high-intensity red LED display

Piezo keypad, 11 keys with international symbols

Temperature Range:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)

IP69K, 304 stainless steel

Three-year limited

NTEP CC 08-092, Class III/IIIL 10,000d
Measurement Canada AM-5710
OIML R76/2006-GBI-10.02
CE Marked
cULus Listed

CW-90X Indicator Dimensions
A 9.5 in (241 mm) D 3.12 in (79 mm) G 3.75 in (95 mm)
B 10.02 in (255 mm) E 6.00 in (152 mm) H 4.00 in (102 mm)
C 11.24 in (285 mm) F 8.57 in (218 mm)



Resources / Downloads

Title Download Email
CW-90 and CW-90X Indicator Only Catalog Page Download Email

Title Version Revision Download Email Category Archived
CW-90/90X Checkweigher Technical Manual 1.10 H Download Email Checkweighers|Indicators / Controllers|Weight Indicators No
WeighVault for CW-90/90X Installation Instructions B Download Email Indicator Software|Indicators / Controllers|Weight Indicators|Checkweighers No
WLAN Option Installation Addendum for CW-90/90X, 720i, 820i, iQUBE2, LaserLT and Counterpart A Download Email Indicator Hardware|Indicators / Controllers|Indicator Hardware/Options No
CW-90/90X Checkweigh Indicator Overlay Replacement A Download Email Checkweighers|Indicators / Controllers|Weight Indicators No
WeighVault CW-90/90X Technical Manual C Download Email Software|Indicator Software|Weight Indicators|Checkweighers No
Ethernet TCP/IP Interface Installation/Configuration Manual - 720i/820i/920i Download Email Indicator Hardware|Indicators / Controllers|Weight Indicators No
WLAN Installation Instructions - CW-90/CW-90X/720i/820i/iQUBE²/LaserLT (Legacy Version) Download Email Indicator Hardware|Indicators / Controllers|Weight Indicators No

Title Download Email
CW-90/CW-90X Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
CW-90X Over/Under Checkweigher Request Download Email Bench Scales|Checkweighers|Indicators / Controllers
Rice Lake Digital Weight Indicators Matrix Request Download Email Indicators / Controllers
Cannabis Market Weighing Solutions: From Cultivation to Retail Request Download Email Retail Equipment|Checkweighers

Title Version Size Release Date Download Email
CW-90/90X Firmware v1.10.01 1.10.01 105.8 KB 08/24/2023 Download Email

Title Version Size Release Date Download Email
WeighVault for CW-90 2.10.00 380.9 MB 02/06/2024 Download Email

Title View Email Category
Importance of Torque Recommendations for Assembly Download Email
CW-90X Checkweigher Breather Vent Replacement Download Email Indicators / Controllers|Checkweighers

Title View Download Email Category
CW-90/90X Software Overview View Email Indicators / Controllers|Checkweighers|Platform Scales|Washdown Scales
CW-90/90X Hardware Overview View Download Email Checkweighers|Platform Scales|Washdown Scales|Indicators / Controllers
WeighVault for CW-90 Demonstration View Download Email Checkweighers|Weight Indicators
ScaleTalk: What's the Difference Between a Checkweigher and Scale? And How to Configure a Range View Download Email


Part # Description List Price Cart
105972 Indicator,CW90X 115VAC With Tilt Stand

List Price: $975.00

105973 Indicator,CW90X 230VAC European Power Cord With Tilt Stand, CE marked/OIML approved

List Price: $975.00

118889 Indicator,CW90X 230VAC European Power Cord With Tilt Stand

List Price: $975.00

171248 Indicator,CW90X 230VAC Australian Power Cord With Tilt Stand

List Price: $975.00


Part # Description List Price Cart
200578 Ind OPT,Ethernet Interface CW90, CW90X Straight through 10ft ethernet cable with PG11 cord grip

List Price: $440.00

206272 Ind Opt,Wireless LAN Card RS232/WiFi Interface 802.11 A/B 10/100 XPico for CW90,720i,iQube2

List Price: $610.00

95357 Cable,USB Type A To USB Mini-B 1 Meter Long

List Price: $11.00

171968 Cable,RS-232 5-Wire DB-9F to stripped and tinned leads

List Price: $39.00

96736 Ind Opt,Fiber-Optic Rx/Tx CW90, CW90X, 820i Internal Mount With Bus Power

Call for price

78026 Cable,Plastic Optical 100 ft. includes polishing kit

List Price: $175.00

80892 Cutter, Fiber Optic Disposable, .750 and 1.0mm single and duplex jacket Industrial Fiber Optics #IF-FC2

List Price: $12.00

117358 Software, WeighVault for CW90/90X License (English)

List Price: $265.00
