iDimension® LTL

Request Quote

  • Legal for Trade measurement range for maximum freight size at 96 in x 96 in x 96 in and minimum freight size at 12 in x 12 in x 12 in with 0.5-inch accuracy
  • 360-degree access for easy pallet placement in the center of target zone
  • No moving parts and solid-state design
  • Minimal set-up and training required
  • Up to four low-resolution intensity images provide a bounding box to identify measurement recorded and can be configured to include time and date, scan ID, serial number, dimensions and dimensioning indications

Options

  • Up to two high-resolution cameras enable freight identification, damage assessment and tracking
  • LED lighting kit reflects a light grid on the floor, eliminating the need to paint, etch or tape the dimensioning zone
  • 23-inch forklift operator display provides instantaneous feedback to the forklift or pallet jack operator, communicating dimensions and system status

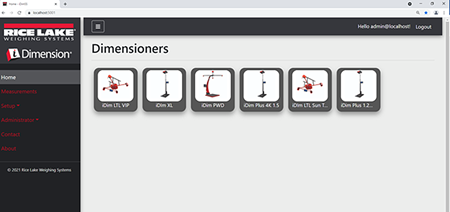

  • iDimension software suite provides a customizable GUI and triggering methods, storage, logging and transfer of shipment and dimensional data and ftp images to existing ERP, TMS and WMA without the use of the iDimension web service interface API

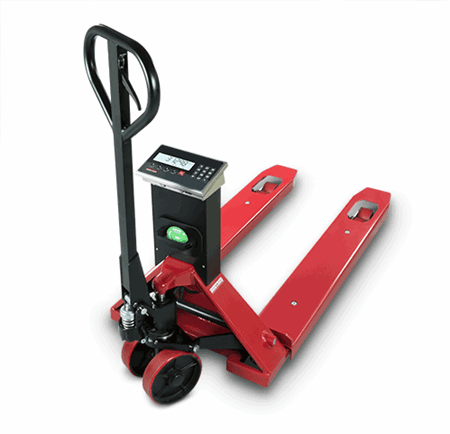

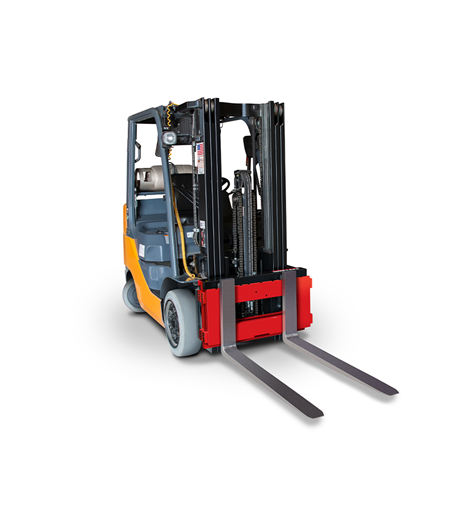

  • iDimension software suite can be used to integrate the iDimension LTL with barcode scanners, floor scales and forklift scales

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FCC Notext

A Freight Dimensioner That Assures Quality

Efficient Imaging with a Pallet Dimensioner

The iDimension LTL uses advanced sensing technology to accurately determine the cubic dimensions of freight, helping ensure freight code compliance is being recorded and declared.

Ideal for LTL carriers and companies with a high percentage of product shipped via pallet or crate, the iDimension LTL removes the potential for human error when taking measurements. The extra labor of manually determining dimensions is eliminated by accurately capturing freight dimensions in less than two seconds.

Light Kits

An LED light kit reflects a light grid on the floor, eliminating the need to paint, etch or tape the dimensioning zone, and quickly assists forklift drivers.

Real-Time Assessment

Up to two high-resolution cameras perform freight identification, damage assessment and tracking.

Operator Display

The operator display provides instantaneous feedback to the forklift or pallet jack operator, communicating dimensions and system status.

Lightning Speed

The iDimension LTL harnesses the fastest processing in the industry. Its advanced imaging technology dimensions LTL freight at a rate of 1-2 seconds within 0.5-inch Legal for Trade accuracy.

Rugged Design

With no moving parts and a solid-state design, the iDimension LTL can easily integrate into a typical LTL environment. Its rugged computer and industrial electrical components can withstand both the hot and cold extremes of shipping docks. Sensors and cameras are protected from accidental freight impact.

Ease of Installation

The iDimension LTL can be installed in one day. Installation technicians will test the interface and train personnel how to use, configure and calibrate the system.

Network Integration

The iDimension LTL is a network device with a web service interface, providing simple integration using configurable capture definitions through HTTP requests, status checking and XML parsing. In other words, Rice Lake has designed this product to easily transfer images and dimensions to your network.

Legal for Trade Measurement Range:
Maximum freight size: (L x W x H)
96 in x 96 in x 96 in
Minimum freight size: (L x W x H)
12 in x 12 in x 12 in

Measurement Increment:
0.5 in

Dimensioning Speed:
Within 2 seconds from the time the target area is clear and the iDimension LTL has been triggered to scan

Performance Characteristics:
Most surfaces are captured, including black plastic shrink wrap. Transparent/translucent and glossy surfaces may provide a variance.

Lighting Conditions:
Operates in any indoor lighting environment



Throughput:
Average transaction time of 7 seconds

Item Placement:
Single pallet within the center of the target zone for best performance

Minimum Pallet Height:
4.25 in wood pallets

Unobstructed Floor Space:
For best performance, provide a 11 ft x 11 ft area clear of walls, inventory racks or barriers

Minimum Ceiling Height:
12.75 ft

Shapes:
Solid shapes, (3-inch protrusions or more) will be included in dimensions

Power Requirements:
Single power source (96-264 VAC),
with 25 ft power cable

Optional Network Camera:
2.4 mm fixed POE network color camera with 3-axis camera angle adjustment. IP24 rating. Standard 2688 x 1606 pixels, 96 dpi @ 751kb standard output in .jpeg format. Configurable for time and date, scan ID, system serial #, dimensions and dimensional indicators.

Operating Temperature:
14°F to 104°F (-10°C to 40°C)

Humidity:
0-90% non-condensing

Warranty:
Two-year limited warranty
Five-year limited warranty, sensors only

Resources / Downloads

Title View Email Category Type
A Whole New Dimension to Outbound Shipping View Email Dimensioning Application Story
The Future of Shipping Is Dim Weight View Email Dimensioning Articles
Top 10 Ways to Improve Dim Weight Shipping View Email Dimensioning Articles

Title Download Email
iDimension LTL Catalog Page Download Email

Title Version Revision Download Email Category Archived
QubeVu Desktop App Software Manual A Download Email Dimensioning No
QubeVu Developer Guide Download Email Dimensioning No
iDimension Software Suite Software Manual A Download Email Dimensioning No

Title Download Email
Forklift Bracket Details for Dimensioning Download Email

Title Collateral Wizard Request Download Email Category
iDimension LTL System Request Download Email Dimensioning|Pallets and Freight Dimensioning
iDimension FAQs Download Email Packages and Parcels Dimensioning|Pallets and Freight Dimensioning|Dimensioning

Title View Download Email Category
iDimension™ - It's Not Just Weight Anymore View Email Dimensioning|Packages and Parcels Dimensioning|Pallets and Freight Dimensioning

Title Download Email Category
Effects and Significance of Dimensioning Download Email Dimensioning

Parts

Part # Description List Price Cart
194205 iDimension LTL System 8 x 8 x 8ft Max

List Price: $49,795.00

194215 Software license- annual maintenance

Call for price
