SB-1150 Summit™ Bariatric Wheelchair Scale
- Heavy-duty mild steel construction
- Single ramp
- Large 1-inch LCD display
- Metal nonslip platform
- Motiontrap™ movement compensation technology
- Unit of measure toggle or locking
- EMR capable
- Serial and USB data communication ports
- Bluetooth® BLE 4.0 available, part number selectable
- Tare function
- Hold function
- BMI (body mass index) function
- Factory calibrated
Same-day Shipping Available
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
Healthweigh® Bariatric Wheelchair Scale
The Summit™ SB-1150 Healthweigh® bariatric wheelchair scale provides exceptional performance in environments where typical wheelchair scales are not large enough to meet patient needs. With its large platform and easy-access ramp, the heavy-duty Summit SB-1150 accommodates wheelchairs without sacrificing safety. The scale and ramp are equipped with a non-skid rubber surface and raised guide rails. Convenient keypad tare reduces errors and increases efficiency.
SB-1150 Specifications
|
Capacity: Platform Dimensions: Ramp Dimensions: Display: |
Power: Battery Type: Battery Use: |
Operating Temperature: Cable Length: Approvals: Warranty: |
SB-1150 Dimensions
| Dimensions | ||
|---|---|---|
| Inches | Centimeters | |
| A | 36.0 | 91.4 |
| B | 36.0 | 91.4 |
| C | 28.5 | 72.4 |
| D | 36.0 | 91.4 |
| E | 4.0 | 10.2 |
| F | 1.0 | 2.5 |
SB-1150 Shipping Weight
| Shipping Weight | |||||||
|---|---|---|---|---|---|---|---|
| Part # | Model # | L (in) | W (in) | H (in) | Package Wgt. (lb) | Dim Wgt. (lb) | Shipping Wgt. (lb) |
| 150706 | SB-1150 | 49 | 48 | 24 | 363 | 407 | 407 |
| 205977 | SB-1150BLE | 49 | 48 | 24 | 363 | 407 | 407 |
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| How to Clean Health Scales |  Email |
Health Scales | Articles | |
| The Importance of Medical Scale Calibration | View | Email |
Calibration Weights|Health Scales | Articles |
| How Often Should You Calibrate A Medical Scale? | View | Email |
Health Scales | Articles |
| Maintaining Medical Scales: 5 Ways to Care for Your Scale | View | Email |
Health Scales | Articles |
Manuals
| Title | Version | Revision | Download | Category | Archived | |
|---|---|---|---|---|---|---|
| Summit SB-1150 Bariatric Wheelchair Scale Operation Manual | I | Download | Email |
Health Scales | No | |
| Summit SB-1150 Bariatric Wheelchair Scale Technical Manual | A | Download | Email |
Health Scales | No | |
| Bluetooth Low Energy (BLE) Demo for Rice Lake Medical Scales | B | Download | Email |
Health Scales | No | |
| Bluetooth Setup Instructions for Rice Lake Medical Scales | A | Download | Email |
Health Scales | Yes |
Technical Bulletins
| Title | View | Category | |
|---|---|---|---|
| How Often Should You Calibrate A Medical Scale? | Download | Email |
Health Scales|Home Health Scales|Mechanical Health Scales|Load Cells|Weigh Modules |
| Medical Scale Maintenance | Download | Email |
Health Scales|Home Health Scales|Mechanical Health Scales |
| Maintaining Medical Scales: 5 Ways to Care for Your Scale | Download | Email |
Health Scales|Home Health Scales|Mechanical Health Scales |
| Healthweigh Indicator Keypad and CPU Board Testing | Download | Email |
Health Scales |
Videos / Webinars
| Title | View | Download | Category | |
|---|---|---|---|---|
| Accurate Patient Weighing With Rice Lake | View | Download | Email |
Health Scales |
| Health Scale Product Line Overview | View | Download | Email |
Health Scales |
| Calibrating a Rice Lake Medical Scale | View | Download | Email |
Health Scales |
| Locking Units of Measure on Rice Lake Medical Indicators | View | Download | Email |
Health Scales |
| How to Measure a Wheelchair to Find the Right Size Scale | View | Download | Email |
Wheelchair Scales |
| ScaleTalk: How to Test the Keypad & CPU on Healthweigh Indicators | View | Download | Email |
Health Scales |
Accurate Patient Weighing With Rice Lake
Health Scale Product Line Overview
Calibrating a Rice Lake Medical Scale
Locking Units of Measure on Rice Lake Medical Indicators
How to Measure a Wheelchair to Find the Right Size Scale
ScaleTalk: How to Test the Keypad & CPU on Healthweigh Indicators
Parts
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 150706 | Scale, SB-1150 1000 LB. Package (Scale, Ramp and Indicator) 36in(W)X 36in(L)X 3in(H) With Anti Slip Rubber Surface and 3 Sides With Saftey Rails, 36in(W)X28.5in(L) Ramp With Anti Slip Rubber Surface and Safety Rails, Indicator AC 10FT Homerun Cable to Connect Scale to HW Indicator. Side Access Junction Box. Includes 6 AA size Alkaline batteries. |
List Price: $1,950.00 |
|
| 205977 | Scale, SB-1150BLE 1000 LB. Package (Scale, Ramp and Indicator) 36in(W)X 36in(L)X 3in(H) With Anti Slip Rubber Surface and 3 Sides With Saftey Rails, 36in(W)X28.5in(L) Ramp With Anti Slip Rubber Surface and Safety Rails, Indicator AC 10FT Homerun Cable to Connect Scale to HW Indicator. Side Access Junction Box. Includes 6 AA size Alkaline batteries. |
List Price: $2,185.00 |
Options
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 133077 | Power Supply,+9.0V Wall rated input voltage 100-240VAC, Operating range 50/60Hz, rated input frequency 0.2A max, UL approved range 50/60Hz, rated input frequency 0.2A max, UL approved |
List Price: $25.00 |
|
| 102508 | Adapter,220VAC AC Healthweigh 9VDC 500MA |
List Price: $30.00 |
|
| 81076 | Printer,Tape TM-U220D RS232 Serial, Universal Power Supply, US Power Cord Epson |
List Price: $445.00 |
|
| 186830 | Cable, RS-232 scale to printer, 6ft, 25-pin D-Sub(male) to RJ-45 |
List Price: $69.00 |
|
| 79074 | Cable, USB 6ft USB-A (male) to USB-B (male) |
List Price: $35.00 |
|
| 217091 | Cable, Communication DB9 (female)to RJ45 (male), 4 Conductor |
List Price: $25.00 |
Replacement Parts
Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.
To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
Related Products

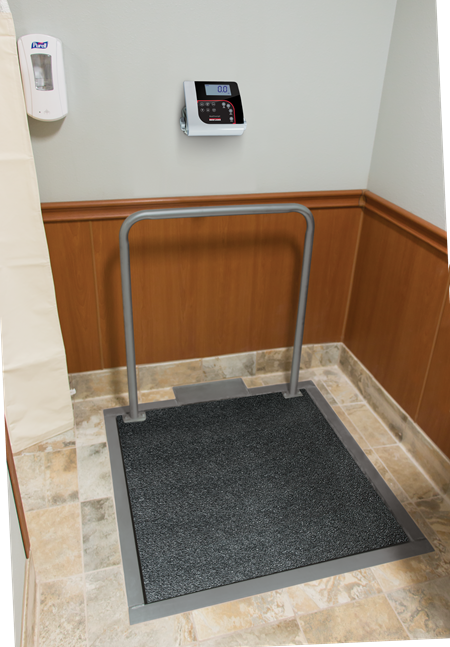

SD-1150-WP Dialysis Wheelchair Scale
The Summit™ Healthweigh® dialysis scale provides exceptional performance in dialysis centers, hospitals and other healthcare environments.
