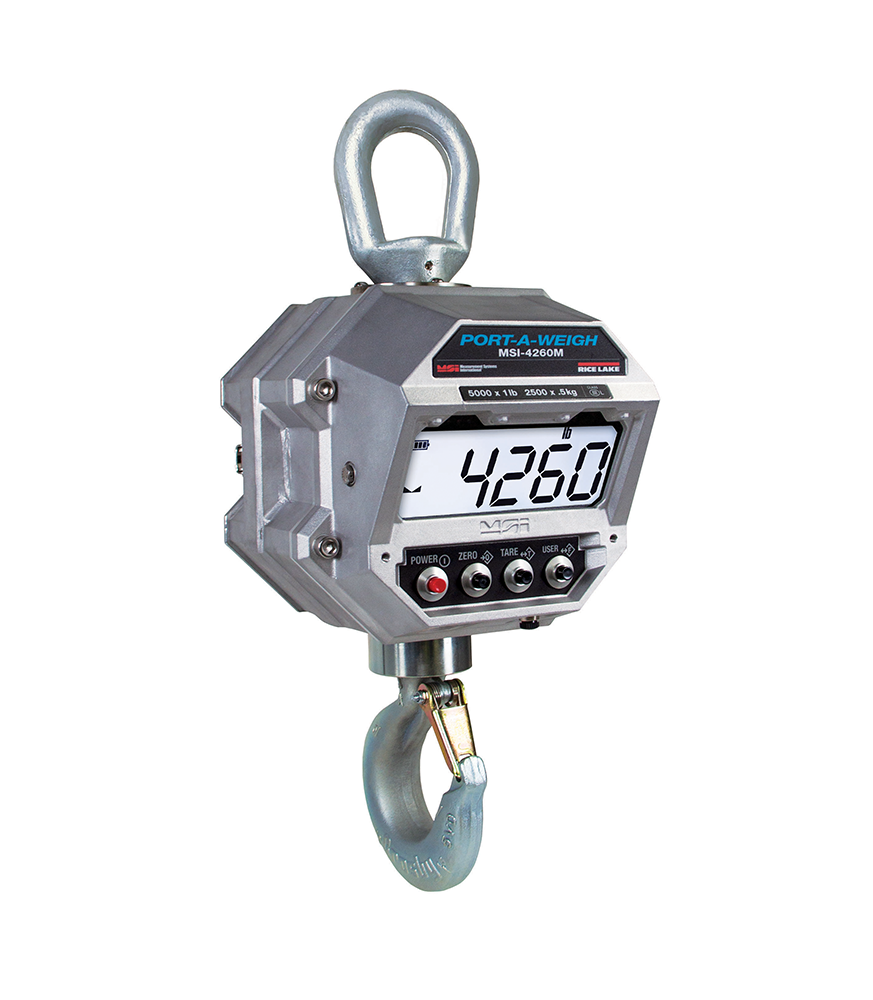

MSI-4260M Port-A-Weigh Industrial Crane Scale

  • LCD display
  • IP66 cast aluminum
  • Top lifting eye or shackle, bottom thrust bearing swivel hook
  • Battery operated, six (6) D cell 1.5V alkaline batteries or
  • 12 volt rechargeable battery (115/230 VAC battery charger is included)
  • NTEP Certified configuration

Options
(Contact MSI for application consultation)

  • Rugged remote control (control for On/Off, Zero, Tare and other functions)
  • RF modem install for connectivity to MSI-8000, MSI-8000HD RF, MSI-8004HD RF remote display, TranSend and LaserLight2 remote display
  • Wi-Fi communication is available for specialty applications
  • Anti-heat shielding for high temperature applications
  • Substitute bottom swivel hook with shackle
  • Oversized top lifting eye or shackle
  • Oversized bottom hook
  • Universal direct power supply; 85 to 265 VAC, 47 to 440 Hz / 130 to 300 VDC
  • Low headroom top adapter
  • Audible alarm
  • Custom top and bottom interfaces

Accuracy:
± 0.1% +1 d of applied load

Resolution:
Max NTEP Approved Class III: 2,500 Divisions
Max NTEP Approved Class IIIL: 5,000 Divisions
Max Non-NTEP Approved: 10,000 Divisions

Enclosure:
IP66 cast aluminum

Lifting Eye, Shackle & Hook:
Crosby® or equal with 360° thrust-bearing swivel hook

Design Overload:
200% Safe / 500% Ultimate (except where noted)

Functions:
Power: Turns Unit ON or OFF
Zero: Zeros applied load up to 100% of capacity (limited range in NTEP configuration),
Tare: Tares applied load and displays weight in Net mode
User: Programmable as test, total, unit, peak hold, net/gross, view total and print

Display:
Five-digit, 1.75in (44.5 mm) LCD with programmable brightness control

Displayable Units:
Pounds or kilograms selectable

Annunciators:
COZ, Battery Level, Net, Total, lb/kg, Stability, RF and Setpoint LEDs

Power:
Battery operated, six (6) D cell 1.5V alkaline batteries or 12 volt rechargeable battery (115/230 VAC battery charger is included)

Operating Time:
Six (6) D Cell 1.5V alkaline batteries:
Up to 1,000 hours of battery life with typical use, less with RF modem
12 volt rechargeable battery: Up to 250 hours between charging with typical use, less with RF modem

Operating Temperature:
-20 °F to 122 °F (-28 °C to 50 °C)
Legal for Trade: 14 °F to 104 °F (-10 °C to 40 °C)

Auto-Off Mode:
Powers off after the scale is not used for the set time (in minutes); 15, 30, 45, 60 or OFF selectable

Auto Sleep Mode:
Power down during non-use after the set time (in minutes) and powers up with weight change or any key press; 5, 15, 30 or OFF selectable

Service Counters:
Counts number of lifts over percentage of capacity and lifts over capacity

Calibration:
Digital (procedure initiated by calibration switch)

Filtering:
OFF, LO, HI-1 or HI-2 selectable

Radio Link:
802.15.4 at 2.4 GHz

Radio Effective Range:
Typically 100 to 300 ft line of sight

Warranty:
One-year limited

Approvals:
NTEP CC 19-122 (capacities over 70,000 lb are not NTEP)
Measurement Canada AM-6198 (capacities under 5,000 lb are Measurement Canada pending)

Resources / Downloads

Title View Email Category Type
Which Crane Scale is the best fit for my Application? Email MSI Crane Scales|Overhead Weighing Systems Articles
When to Use a Dynamometer to Measure Tension Email MSI Crane Scales|Tension Dynamometers Articles

Title Download Email
MSI-4260M Industrial Port-A-Weigh Catalog Page Download Email

Title Version Revision Download Email Category Archived
MSI-4260M Port-A-Weigh Crane Scale Technical Manual A Download Email MSI Crane Scales No
ScaleCore Connect Software Manual B Download Email MSI Crane Scales|Overhead Weighing Systems No

Title Download Email
Overhead Weighing Systems Questionnaire Download Email

Title View Download Email Category
Types of Crane Scales View Download Email Overhead Weighing Systems

Parts

4260M with LCD display, Swivel Hook, No RF, 12V SLA Battery

Part # Description List Price Cart
201951 MSI-4260M 500 lb Swvl Hook 12V Battery LCD Display

List Price: $4,920.00

201953 MSI-4260M 2,000 lb Swvl Hook 12V Battery LCD Display

List Price: $4,920.00

201954 MSI-4260M 5,000 lb Swvl Hook 12V Battery LCD Display

List Price: $5,240.00

201955 MSI-4260M 10,000 lb Swvl Hook 12V Battery LCD Display

List Price: $5,460.00

201956 MSI-4260M 20,000 lb Swvl Hook 12V Battery LCD Display

List Price: $7,120.00

201957 MSI-4260M 30,000 lb Swvl Hook 12V Battery LCD Display

List Price: $7,480.00

201958 MSI-4260M 50,000 lb Swvl Hook 12V Battery LCD Display

List Price: $11,450.00

201959 MSI-4260M 70,000 lb Swvl Hook 12V Battery LCD Display

List Price: $14,990.00

201960 MSI-4260M 100,000 lb Swvl Hook 12V Battery LCD Display

List Price: $22,800.00

4260M with LCD display, Swivel Hook, No RF, D-Cell Battery

Options

Options

Part # Description List Price Cart
150971 MSI-4260B Remote Disp Opt Kit, RF. Modem Will Allow For Connectivity With an MSI-8000 Remote Display

Call for price

139381 MSI-8000 Remote Display RF Handheld (Requires an MSI Crane Scale or MSI-7300 equipped with a RF modem)

List Price: $1,320.00

173014 MSI-Rugged Remote Control Non-CE for Products with XBEE Radios

List Price: $330.00

153591 FINAL ASSY REMOTE DISPLAY AC POWER 8000HD

List Price: $1,440.00

159221 MSI CRANE CART

Call for price

178004 4in LASERLIGHT2 MSI RF Includes ScaleCore RF Kit and Tilt Mounting Bracket

List Price: $2,370.00

178006 6in LASERLIGHT2 MSI XBEE RF Includes ScaleCore RF Kit and Tilt Mount Bracket

List Price: $2,810.00

Accessories

4260 Sub Hook with Shackle

4260 Oversize Lifting Eye/Shackle

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
