880/880 Plus Performance™ Series Programmable Weight Indicator/Controller

  • LED display
  • USB device port connects directly to a PC
  • Ethernet TCP/IP polled or continuous polled or continuous, server/client
  • Built-in DIN-rail clips on controller box (panel mount)
  • Display and controller can be separated up to 250 ft (panel mount)
  • Hardware slot for one option card
  • Operator functions through menu key for audit trail, preset tare, accumulator, time and date and setpoints
  • Audit trail tracking for configuration and calibration changes. Password protection for user and configuration changes.
  • 20 setpoints with latched batch engine or unlatched outputs
  • Four onboard digital I/O channels
  • Programmable ticket formats up to 1,000 characters for header text, gross, net, accumulator and setpoints
  • Five-point linearization calibration
  • Local/remote operation
  • Multi-range or multi-interval weighing
  • Filter settings for light, medium and heavy noise

Options

  • Analog output
  • Relay board
  • Fieldbus connectivity
  • Dual serial output (v4.00 and newer)
  • 24-channel digital I/O (v4.00 and newer)
  • Truck in/out program for 100 vehicle IDs
  • Adapter plate for converting 310 and 520 panel mounts
  • Panel mount kit for universal enclosure

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW OIML Logo CE Mark UL_Listed_C-US UL-Recognized_C-US

WARNING: Cancer and Reproductive Harm California Proposition 65

A Weight Indicator with a Range of Connectivity

Designed with the user process in mind and built for communication, Rice Lake’s Performance™ Series weight indicators/controllers are packed with power, yet simple in design. Intuitive multifunction menu keys allow navigation in any application and the NEMA Type 4X/IP69K-rated gasket effectively keeps internal components out of harm’s way. Twenty time- and weight-based setpoints provide ultra responsiveness to handle any process control requirement. For customized operation, use Rice Lake's intuitive iRite software to program functionality specific to the application. The innovative 880 and 880 Plus also accommodate a wide range of connectivity—from USB and RS-232/ RS-485 to Ethernet TCP/IP.

Install an option card for additional fieldbus compatibility, analog output, relay board, dual serial outputs or 24-channel digital inputs/outputs. With two different enclosure types to choose from, Rice Lake’s 880 Performance Series exceeds your expectations wherever you need it.

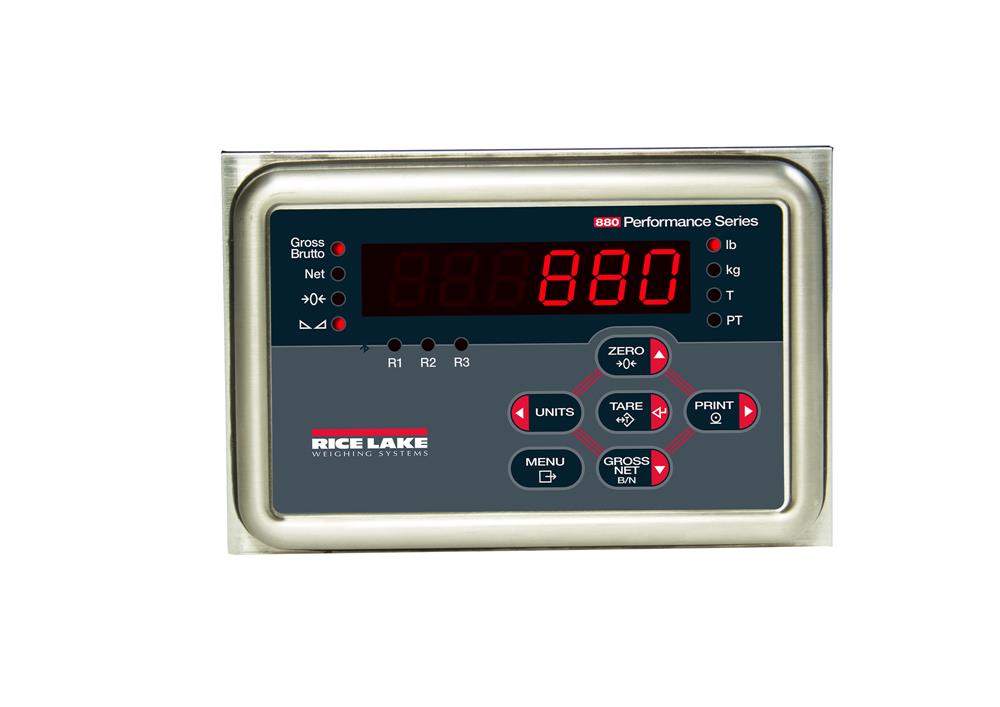

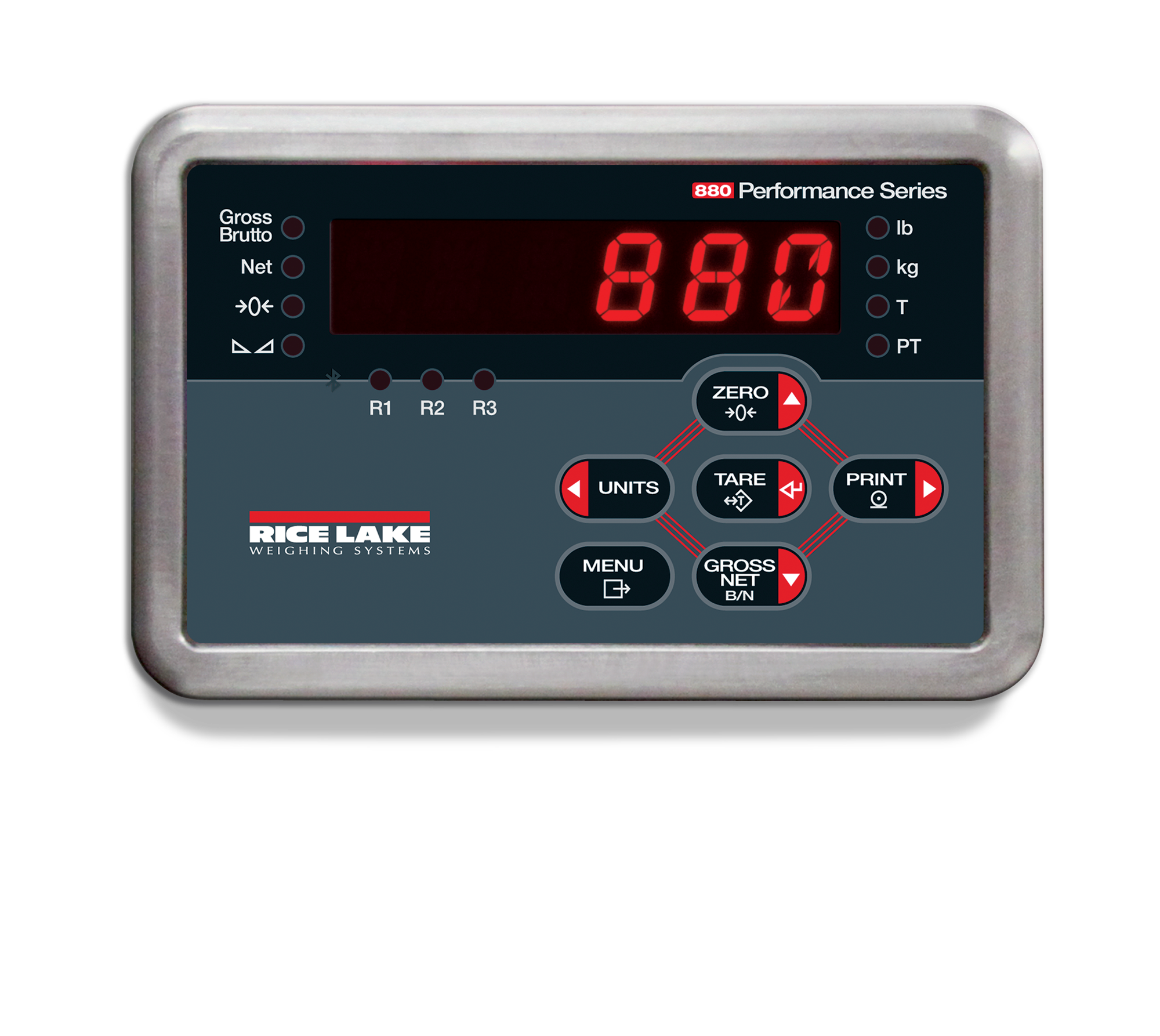

880 Panel Mount

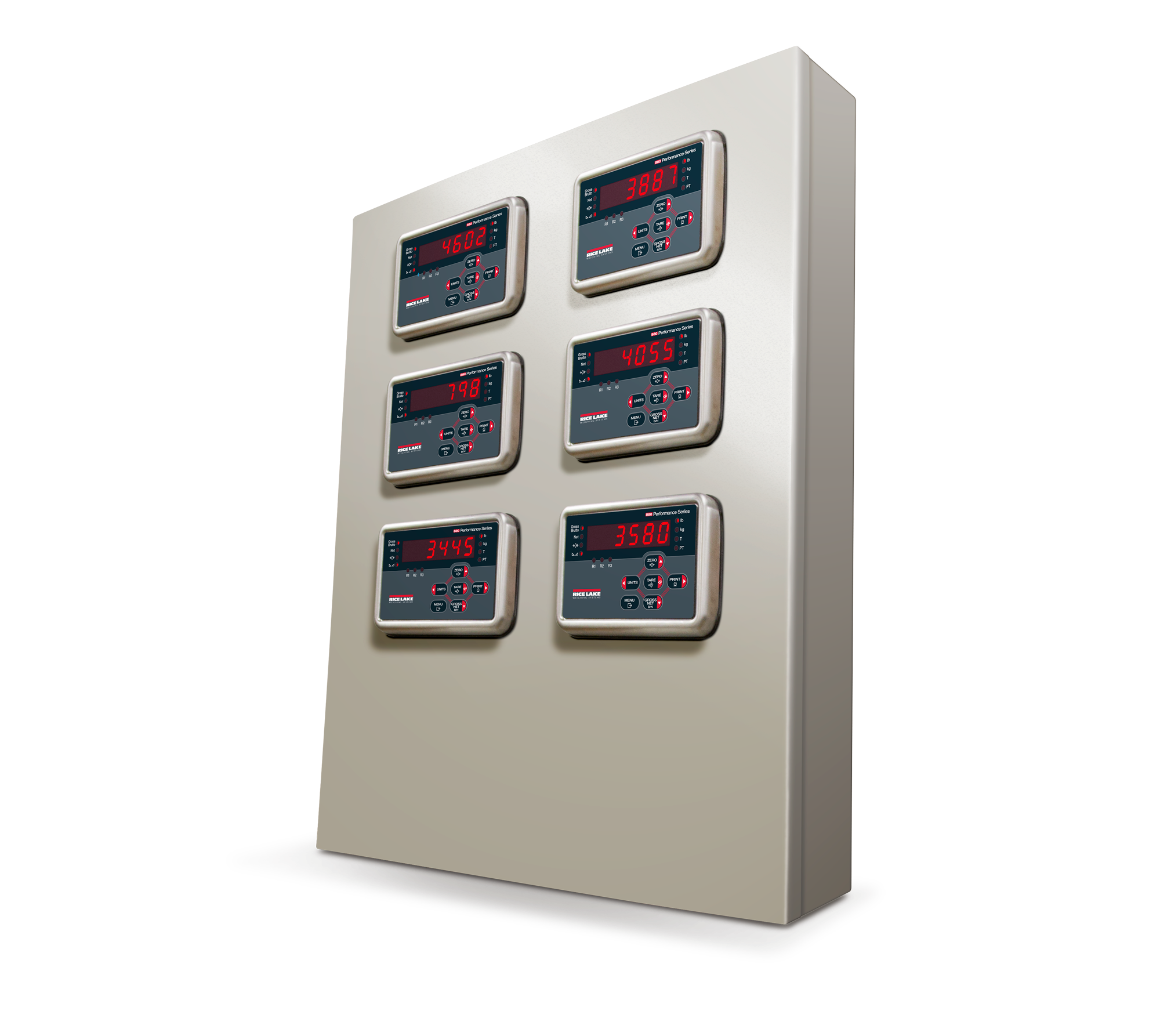

The sleek design of the 880 not only looks great, it also fits great into existing and new panels alike. At just under five inches deep, the efficiently designed enclosure fits easily into compact spaces with DIN-rail clips to make mounting quick and effortless. The 880’s modular design enables the display to be remotely mounted, especially useful for instances when it is inconvenient to mount the controller on a conventional panel.

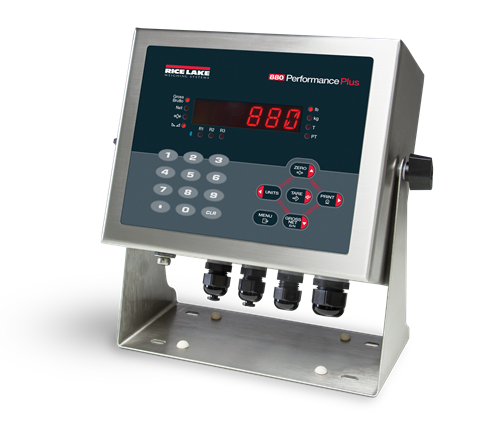

880 Plus Universal Enclosure

Equipped with a universal mount, the 880 Plus delivers all of the powerful features of the 880 when a panel mount isn’t necessary. The numeric keypad simplifies the user experience, making operations more convenient and flexible.

Power:
Line voltages: 100 to 240 VAC
Frequency: 50/60 Hz
DC voltages: 12 to 24 VDC

Power Consumption:
AC: 15 W, DC: 20 W

Excitation Voltage:
10 VDC (±5 VDC), 16 × 350 ohm or 32 × 700 ohm load cells

Analog Signal Input Range:
-45 mV to 45 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum at 7.5 Hz;
1.0 μV/graduation recommended

A/D Sample Rate:
7.5 to 960 Hz, software selectable

Resolution:
Internal: 8,000,000 counts
Display: 999,999

System Linearity:
± 0.01% full scale

Digital I/O:
Four I/O onboard, primary keys, pseudo
functions, batching functions

(Optional) Analog Output:
Voltage output: 0–10 VDC
Load resistance: 1 k ohm minimum
Current output: 0–20 mA or 4–20 mA
External loop resistance: 500 W maximum

(Optional) Relay Board:
Four channel relay module, dry contact 3 A at 115 VAC, 3 A at 30 VDC

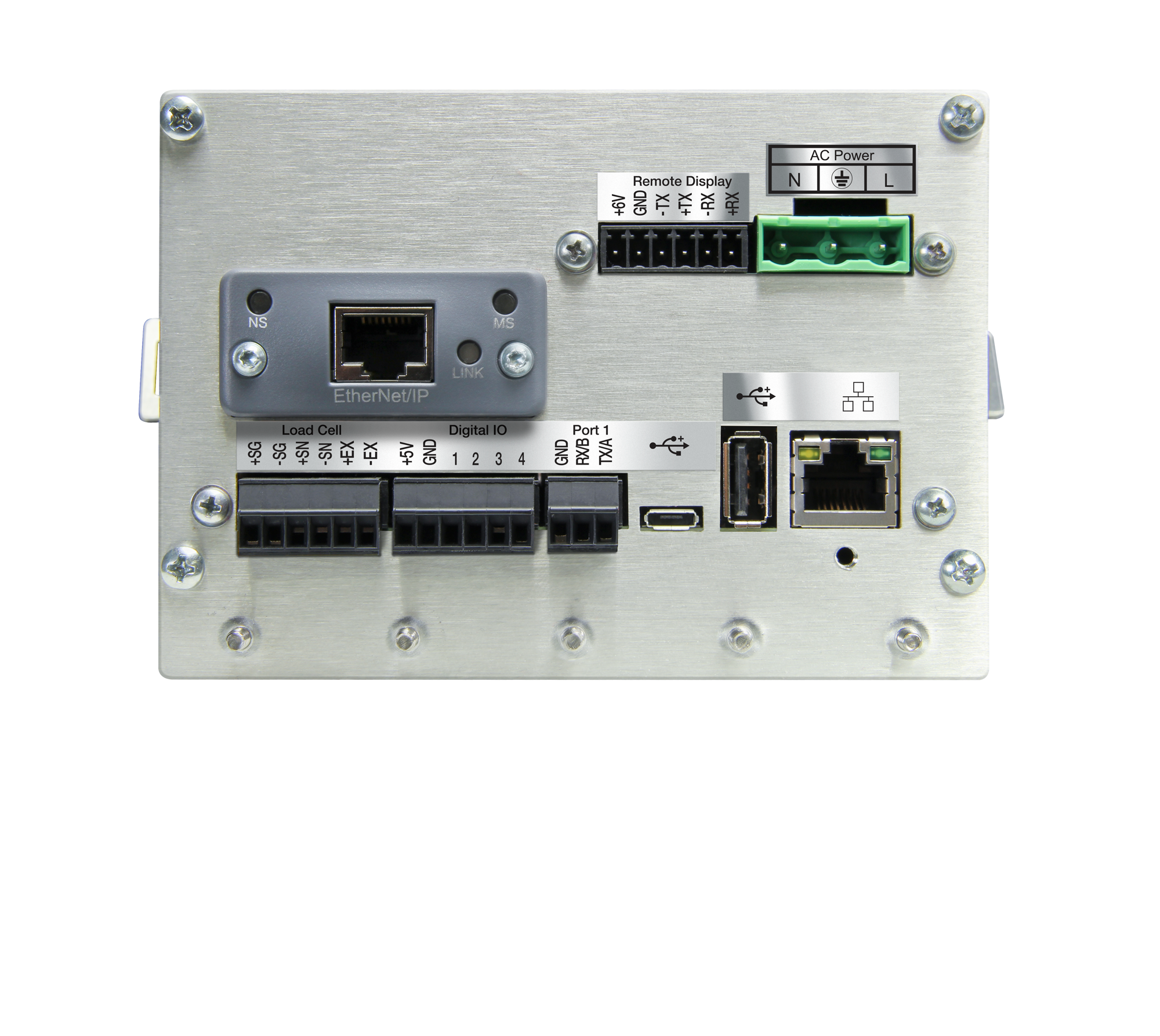

Communication Ports:
RS-232 full duplex or RS-485 half duplex; USB micro A/B connector 2.0; Ethernet TCP/IP

Annunciators:
Gross, net, center of zero, standstill, lb, kg, tare, preset tare, multi-range/interval 1/2/3

Display:
LED, 0.56 in (14 mm), six-digit, 14-segment with decimal or comma

Keys/Buttons:
Membrane panel, tactile feel

Dimensions:
(L × W × H)
Panel: 6.00 × 4.95 × 4.00 in (152 × 126 × 102 mm)
Universal: 9.87 × 4.00 × 9.38 in (248 × 102 × 235 mm)

Temperature:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: 14 °F to 122 °F (-10 °C to 50 °C)

Rating/Material:
Panel display: stainless steel, NEMA Type 4X, Type 12 and IP69K
Panel mount controller: Aluminum
Universal: stainless steel, IP69K

Weight:
Panel: 2.5 lb (1.2 kg);
Universal: 6.5 lb (2.9 kg)

Warranty:
Two-year limited

EMC Immunity:
10 V/m

Approvals:
NTEP 13-080 Class III/IIIL, 10,000d
Measurement Canada AM-5931C
OIML R76/2006-A-NL1-18.23 Class III, 10,000d
EU Test Certificate TC8463
CE Marked
cULus Listed (universal)
cULus Recognized (panel mount)

Dimensions 880 Panel-mount Digital Weight Indicator

A 6.0 in (152 mm) C 4.95 in (126 mm)
B 4.0 in (102 mm) D 0.58 in (14 mm) BEZEL DEPTH



Dimensions 880 Universal enclosure Performance Series

A 8.10 in (206 mm) D 9.87 in (248 mm)
B 9.38 in (235 mm) E 4.0 in (102 mm)
C 8.37 in (213 mm) F 6.5 in (165 mm)

Resources / Downloads

Title View Email Category Type
Birchwood's Bluegills View Email Bench Scales Application Story

Title Download Email
880/880 Plus Catalog Page Download Email

Title Size Download Email Category
1280 and 880 DeviceNet (single port M30) 622 B Download Email Indicators / Controllers
EtherCAT file (XML) for 1280 and 880 single M30 2.4 KB Download Email Indicators / Controllers
EtherNet/IP file (EDS) for 1280 and 880 single port M30 3.5 KB Download Email Indicators / Controllers
1280 and 880 PROFIBUS (single port M30) 48.2 KB Download Email Indicators / Controllers
1280 and 880 PROFINET (single port M30) 2.8 KB Download Email Indicators / Controllers
IPConfig-Utility 3.1 MB Download Email Indicators / Controllers
Rockwell Automation AOP (Extended EDS) for 880 35.2 KB Download Email Indicators / Controllers

Title Version Revision Download Email Category Archived
880 Performance Series, Operation Manual 2 D Download Email Indicators / Controllers No
880 Performance Series Technical Manual 4 I Download Email Indicators / Controllers|Weight Indicators No
1280/880 Interface Option Card Installation Addendum Download Email Indicator Hardware|Indicators / Controllers|Weight Indicators No
iRite® Programming Language Programmer Manual P Download Email Indicator Software|Indicators / Controllers|Weight Indicators No
880 Adapter Panel Installation Addendum A Download Email Indicators / Controllers|Weight Indicators No
880 Analog Output Option Card Installation Addendum D Download Email Indicators / Controllers|Weight Indicators|Indicator Hardware/Options|Indicator Hardware No
880 Digital I/O Option Card Installation Addendum A Download Email Indicators / Controllers|Weight Indicators No
880 Relay Option Card Installation Addendum A Download Email Indicator Hardware|Indicators / Controllers|Weight Indicators|Indicator Hardware/Options No
880 Dual Serial Option Card Installation Addendum A Download Email Indicators / Controllers|Weight Indicators|Indicator Hardware|Indicator Hardware/Options No
880 and 882D Panel Mount Option Addendum A Download Email Weight Indicators|Indicators / Controllers|Indicator Hardware/Options|Belt Scale Weigh Frames No
880 Performance Series Sealing Kit Installation Addendum A Download Email Indicators / Controllers|Weight Indicators No
880 Truck In/Out Program Operation Manual Download Email Indicators / Controllers|Weight Indicators No
880 Performance Series Technical Manual (Legacy 5" Green Board Models) 2 A Download Email Indicators / Controllers|Weight Indicators No
880 EtherNet/IP Interface Option Card Installation and Programming Manual C Download Email Indicators / Controllers|Weight Indicators|Indicator Hardware|Indicator Hardware/Options No

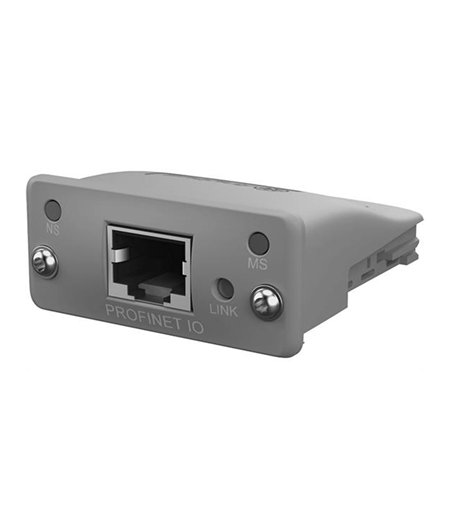

880 PROFINET Interface Option Card Installation and Programming Manual B Download Email Indicator Hardware|Indicators / Controllers|Weight Indicators|Indicator Hardware/Options No

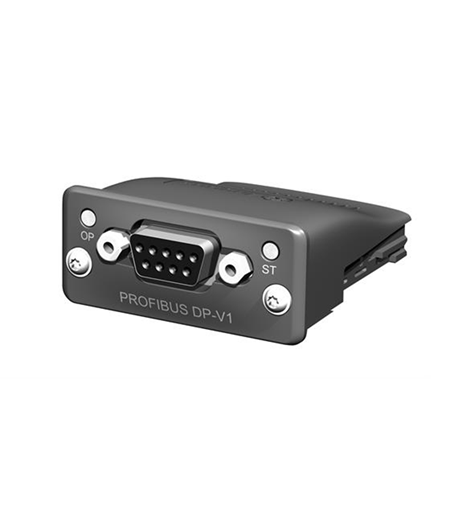

880 PROFIBUS DP Interface Option Card Installation and Programming Manual B Download Email Indicators / Controllers|Weight Indicators|Indicator Hardware|Indicator Hardware/Options No
880 DeviceNet Interface Option Card Installation and Programming Manual B Download Email Indicators / Controllers|Indicator Hardware/Options|Indicator Hardware|Weight Indicators No
880 EtherCAT Interface Option Card Installation and Programming Manual B Download Email Indicators / Controllers|Weight Indicators|Indicator Hardware/Options|Indicator Hardware No

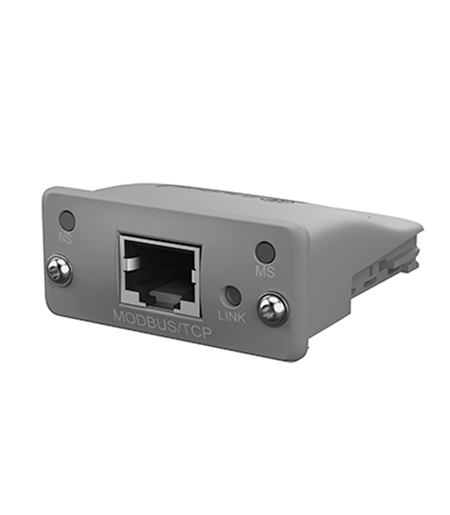

880 Modbus TCP Interface Option Card Installation and Programming Manual B Download Email Indicators / Controllers|Indicator Hardware|Weight Indicators|Indicator Hardware/Options No
880 Instalación de la Tarjeta Opcional Serial Dual A Download Email Indicator Hardware|Indicators / Controllers|Weight Indicators|Indicator Hardware/Options No
880 Instalación de la Tarjeta Opcional de I/O Digital A Download Email Indicator Hardware|Indicators / Controllers|Weight Indicators|Indicator Hardware/Options No
880 Performance Series Instalación del Panel Adaptador A Download Email Indicators / Controllers|Weight Indicators No
Serie 880 Performance Instalación de la tarjeta opcional de salida analógica (Latin Spanish) D Download Email Indicators / Controllers|Weight Indicators|Indicator Hardware/Options|Indicator Hardware No
Serie 880 Performance Instalación de la tarjeta opcional de relé (Latin Spanish) A Download Email Indicator Hardware|Weight Indicators|Indicator Hardware/Options|Indicators / Controllers No
Indicadores digitales de pesaje 880 y 882D Opción de alojamiento para panel (Latin Spanish) A Download Email Weight Indicators|Indicators / Controllers|Indicator Hardware/Options|Belt Scale Weigh Frames No

Title Download Email
880 Panel Replacement Parts Catalog Page Download Email
880 Universal Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
880 Performance Series Indicator/Controller Request Download Email Indicators / Controllers
Rice Lake Digital Weight Indicators Matrix Request Download Email Indicators / Controllers
Rice Lake Weight Indicator Product Guide Request Download Email Indicators / Controllers|Weight Indicators

Title Version Size Release Date Download Email
880 CPU Firmware (latest) 4.05.00 363.2 KB 07/19/2024 Download Email
880 CPU Firmware (v1.02) 1.02.00 298 KB 01/15/2020 Download Email
880 CPU Firmware (v2.01) 2.01 322.8 KB 01/15/2020 Download Email
880 CPU Firmware (v3.00) 3.00.00 327.8 KB 01/15/2020 Download Email
880 CPU Firmware (v3.01) 3.01 315 KB 01/15/2020 Download Email
880 Display Firmware 2.00.01 85.2 KB 01/01/2015 Download Email
Smart Card Fieldbus Firmware for 1280, 880, 882, 882D & 820IS 2.03.01 90 KB 05/01/2024 Download Email

Title Version Size Release Date Download Email
880 Truck In/Out Program 1 615.1 KB 12/28/2021 Download Email
880 USB Driver 1 3.2 MB 01/01/2014 Download Email
Revolution Scale Software (v3.48) 3.48 220.4 MB 08/29/2024 Download Email

Title View Email Category
880 Panel Mount – UL Recognized Download Email Weight Indicators|Indicators / Controllers

Title View Download Email Category
880 Performance™ Series Calibration and Configuration View Email Indicators / Controllers
880 Performance™ Series Passwords View Email Indicators / Controllers
880 Performance™ Series User Setup Menus View Email Indicators / Controllers
Analog Output Configuration and Calibration for the 880 Performance™ Series View Email Indicators / Controllers
Changing Setpoints from the 880 Performance™ Series Front Panel View Email Indicators / Controllers
Setting up Streaming on the 880 Performance™ Series View Email Indicators / Controllers
Troubleshooting 880 Performance™ Series Serial Communications View Email Indicators / Controllers

Title Download Email
880 Panel Mount Enclosure (CAD Drawing) Download Email
880 Plus Weight Indicator Controller Universal Enclosure (CAD Drawing) Download Email
880 Plus Weight Indicator Controller Universal Enclosure (Line Drawing) Download Email
880 Weight Indicator Controller Panel-mount (CAD Drawing) Download Email
880 Weight Indicator Controller Panel-mount (Line Drawing) Download Email

Parts

880 Panel Mount AC Powered (*Power cord not included)

Part # Description List Price Cart
177976 Indicator,880 Panel Mount 5.5, Wider Boards, LED Display, 115-230VAC Power Supply

List Price: $1,350.00

177979 Indicator,880 Panel Mount 5.5, Wider Boards, LED,115-230VAC with Option Analog Output 1-10VDC, 0-20mA, 4-20mA.

List Price: $1,725.00

177980 Indicator,880 Panel Mount 5.5, Wider Boards, LED,115-230VAC, with Option Relay Board, 4 Dry Contact Outputs

List Price: $1,725.00

177982 Indicator,880 Panel Mount 5.5, Wider Boards, LED, 115-230VAC, with Option EtherNet/IP Protocol

List Price: $2,000.00

177983 Indicator,880 Panel Mount 5.5, Wider Boards, LED, 115-230VAC, with Option ProfiNet Protocol

List Price: $2,000.00

177984 Indicator,880 Panel Mount 5.5, Wider Boards, 115-230VAC, with Option Modbus/TCP Protocol

List Price: $2,000.00

177985 Indicator,880 Panel Mount 5.5, Wider Boards, LED, 115-230VAC, with Option Profibus DP Protocol

List Price: $2,000.00

177986 Indicator,880 Panel Mount 5.5, Wider Boards, LED, 115-230VAC, with Option DeviceNet Protocol

List Price: $2,000.00

179155 Indicator,880 Panel Mount 5.5, Wider Boards, LED, 115-230VAC, with Option EtherCAT Protocol

List Price: $2,000.00

880 Panel Mount DC Powered (*Power cord not included)

880 Plus Universal AC Powered

880 Plus Universal DC Powered

Options

Option Cards (5.5 in CPU only)

Part # Description List Price Cart
179156 Ind Opt,Analog Output 0-10VDC, 0-20mA, 4-20mA used in 880 Indicator

List Price: $375.00

179157 Ind Opt,880 Relay Card Four Channel, Dry Contact, 3A @ 115VAC, 5A @ 30VDC.

List Price: $350.00

197343 880 Opt,Digital I/O Option Card

List Price: $325.00

197347 880 Opt,Serial Interface Option Card

List Price: $375.00

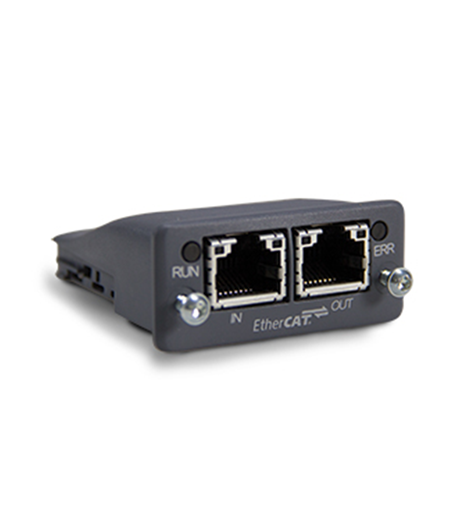

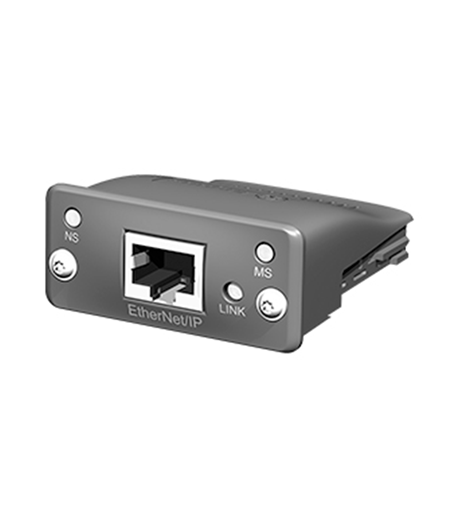

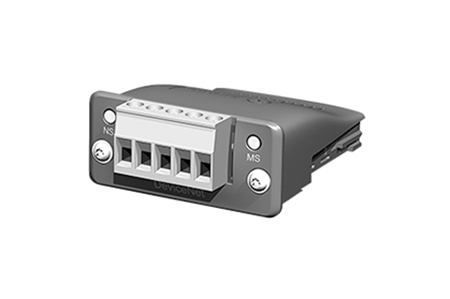

Network and Fieldbus Interface Cards
