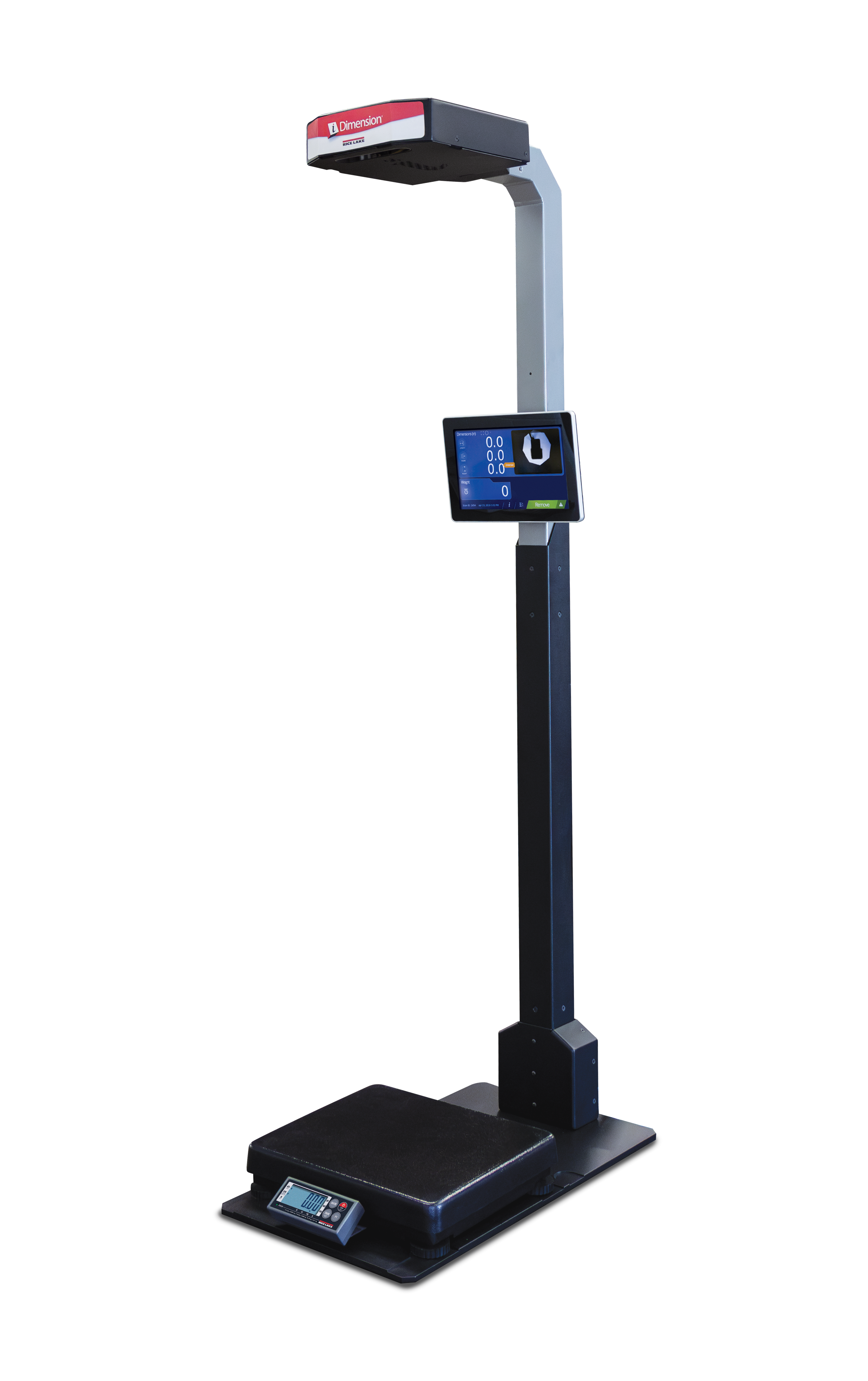

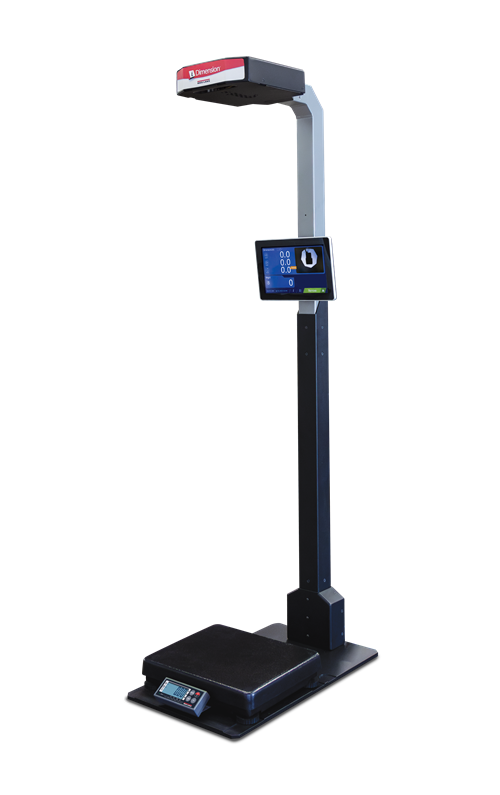

iDimension® Plus Parcel Static Dimensioning System
- iDim Plus package 1 includes: base plate, telescoping pole assembly, touchscreen display, calibration object, power cord, operating manual and assembly toolkit
- iDim Plus package 2 includes: package 1 components and a 150-lb BenchPro™ shipping scale
- iDim Plus package 3 includes: dimensioning head (without pole), 10-ft Ethernet cable, USB display, calibration object, power cord and operating manual
- No special package placement requirements
- Capable to dimension opaque packaging
- Measurement capabilities beyond Legal for Trade limits
- High resolution color image, 1920 × 1080 resolution color camera
Options
- iDimension SS (Software Suite)
- iDimension App
- Wired or wireless barcode scanner
- Rice Lake BenchPro™ shipping/postal scales
- Rice Lake 680 and 1280 indicators available for automation applications
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
A Dimensioning System Like Never Before
Rice Lake's iDimension Plus is the best-in-class solution for measuring boxes, flats, polybags, tubes and irregular-shaped packages. iDimension Plus eliminates dimensional weight corrections and carrier fees by providing accurate dimension and weight calculations required by parcel and postal carriers.
Easy Setup
iDimension Plus uses a pre-assembled telescoping pole assembly with scanner height settings at 48 or 60 inches (1.2 or 1.5 meters) above a work surface. The second generation head is backward-compatible with the original pole assembly, making an easy upgrade path to take advantage of improved measuring capabilities. iDimension Plus is also available without a pole assembly for mounting the dimensioning head on a freestanding frame or existing structure.
Speed and Accuracy
Parcels are dimensioned faster and more accurately than manual measurements, eliminating the risk of human error while gaining efficiency and labor savings. With industry-leading speed, parcels are automatically measured within 0.2 inches (5 mm), with no need for special alignment or handling while placing a package under the dimensioner. iDimension Plus can dimension irregular-shaped packages such as cylinders, spheres, tubes, polybags and uneven shapes.
Innovative Technology
iDimension Plus uses the latest dimensioning technology coupled with industry-leading algorithms to deliver Legal for Trade dimensions in a fraction of a second. Using an attached BenchPro scale and RGB Assist mode, dimensions can be captured for envelopes, flats and small objects that fall below the 2.4-inch Legal for Trade limit. iDimension Plus comes standard with Ethernet TCP/IP, dual USB-A ports and Wi-Fi.
Operator Display
A 10-inch color touchscreen display provides instant feedback, with images, dimensions, weights and intuitive operator functions for day-to-day use.
Operating Versatility
iDimension Plus has automatic and manual trigger configurations. A small footprint and configurable scan area provide easy integration into any workspace.
iDimension Plus Specifications
|
Power Requirements: Communication Ports: Display: |
Accuracy: Software Integration: Temperature: |
Humidity: |
Legal for Trade Minimum and Maximum Measurement Capability
| Platform Distance |
48 in (1.2 m) |
60 in (1.5 m) | 80 in (2 m)** without Pole | |||
|---|---|---|---|---|---|---|
| Min/Max* | Min | Max | Min | Max | Min | Max |
| Length | 2.4 in (61 mm) | 40 in (1,000 mm) | 2.4 in (61 mm) | 48 in (1,200 mm) | 3 in (76 mm) | 48 in (1,219 mm) |
| Width | 2.4 in (61 mm) | 24 in (609 mm) | 2.4 in (61 mm) | 32 in (812 mm) | 3 in (76 mm) | 32 in (812 mm) |
| Height | 2.4 in (61 mm) | 24 in (609 mm) | 2.4 in (61 mm) | 28 in (711 mm) | 3 in (76 mm) | 32 in (812 mm) |
| Division | 0.2 in (5 mm) | 0.2 in (5 mm) | 0.5 in (10 mm) | |||
| *With RGB assist enabled smaller measurements are possible | ||||||
| **2 m not Legal for Trade | ||||||

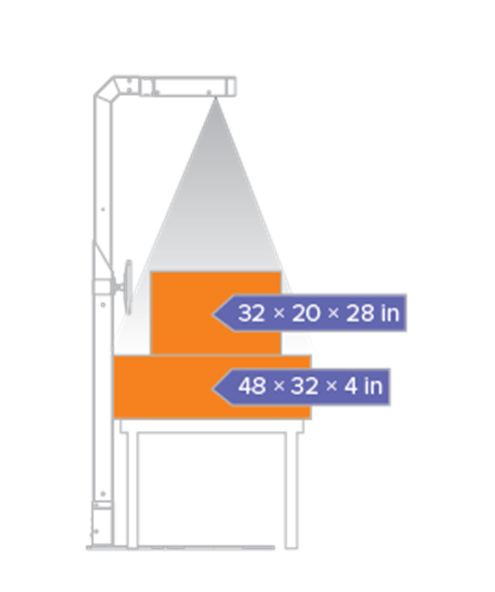

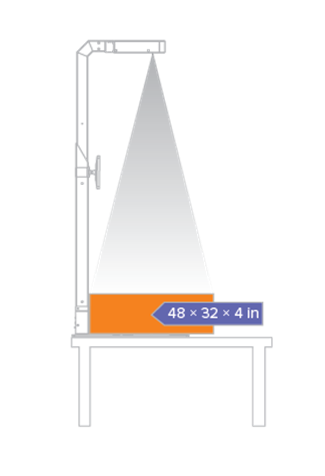

Largest Box Measurement Capability for Max Length vs. Max Height
|
|
Pole Assembly Height | Maximum LFT Box Size |
|---|---|---|
|
Largest Box with Max Height |
48 in (1.2 m) |
24 × 14 × 24 in (609 × 355 × 609 mm) |
| Largest Box with Max Height | 48 in (1.2 m) | 39 × 24 × 8 in (1,000 × 609 × 203 mm) |
| Largest Box with Max Height | 60 in (1.5 m) | 32 × 20 × 28 in (812 × 500 × 711 mm) |
| Largest Box with Max Height | 60 in (1.5 m) | 48 × 32 × 4 in (1,219 × 812 × 101 mm) |
iDimension Plus Dimensions
| iDimension Plus | |||
|---|---|---|---|
| A | 63.10 in (1,603 mm) | F | 19.85 in (504 mm) |
| B | 60.50 in (1,537 mm) | G | 2.84 in (72 mm) |
| C | 35.00 in (889 mm) | H | 25.00 in (635 mm) |
| D | 4.13 in (105 mm) | I | 19.10 in (485 mm) |
| E | 6.00 in (152 mm) | J | 14.25 in (362 mm) |
Scanning Head Assembly Dimensions
| Dimensions | |||
|---|---|---|---|
| A | 9.66 in (229 mm) | F | 1.62 in (41 mm) |
| B | 10.99 in (216 mm) | G | 0.52 in (13 mm) |
| C | 4.14 in (183 mm) | H | 2.58 in (66 mm) |
| D | 3.25 in (84 mm) | I | 1.35 in (34 mm) |
| E | 1.35 in (34 mm) | J | 1.25 in (32 mm) |
Mounting Bracket (pn 198708) Dimensions
| Dimensions | |
|---|---|
| A | 7.37 in (187 mm) |
| B | 4.12 in (105 mm) |
| C | 3.14 in (80 mm) |
| D | 2 × ⌀.28 |
| E | 3 × ⌀.19 |

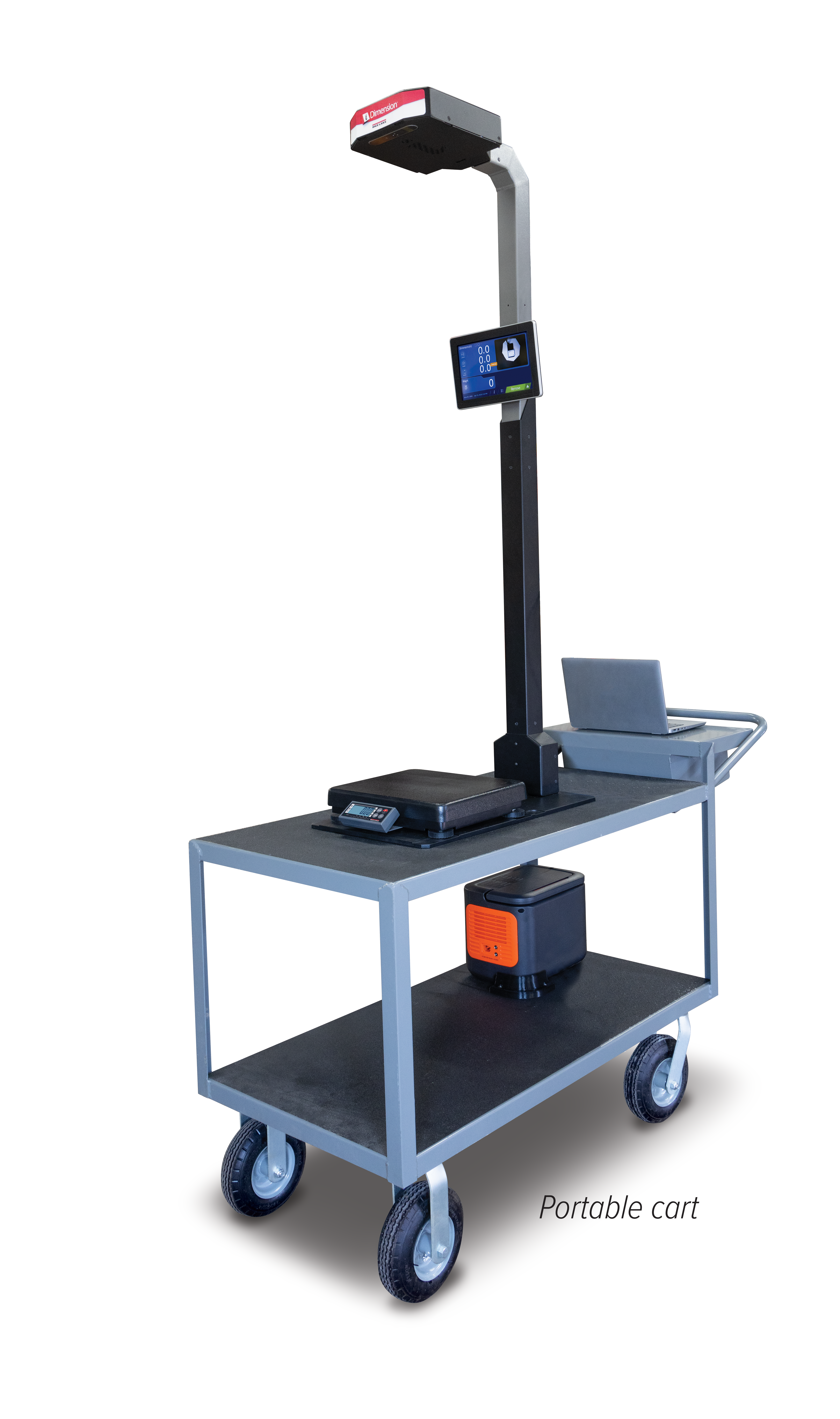

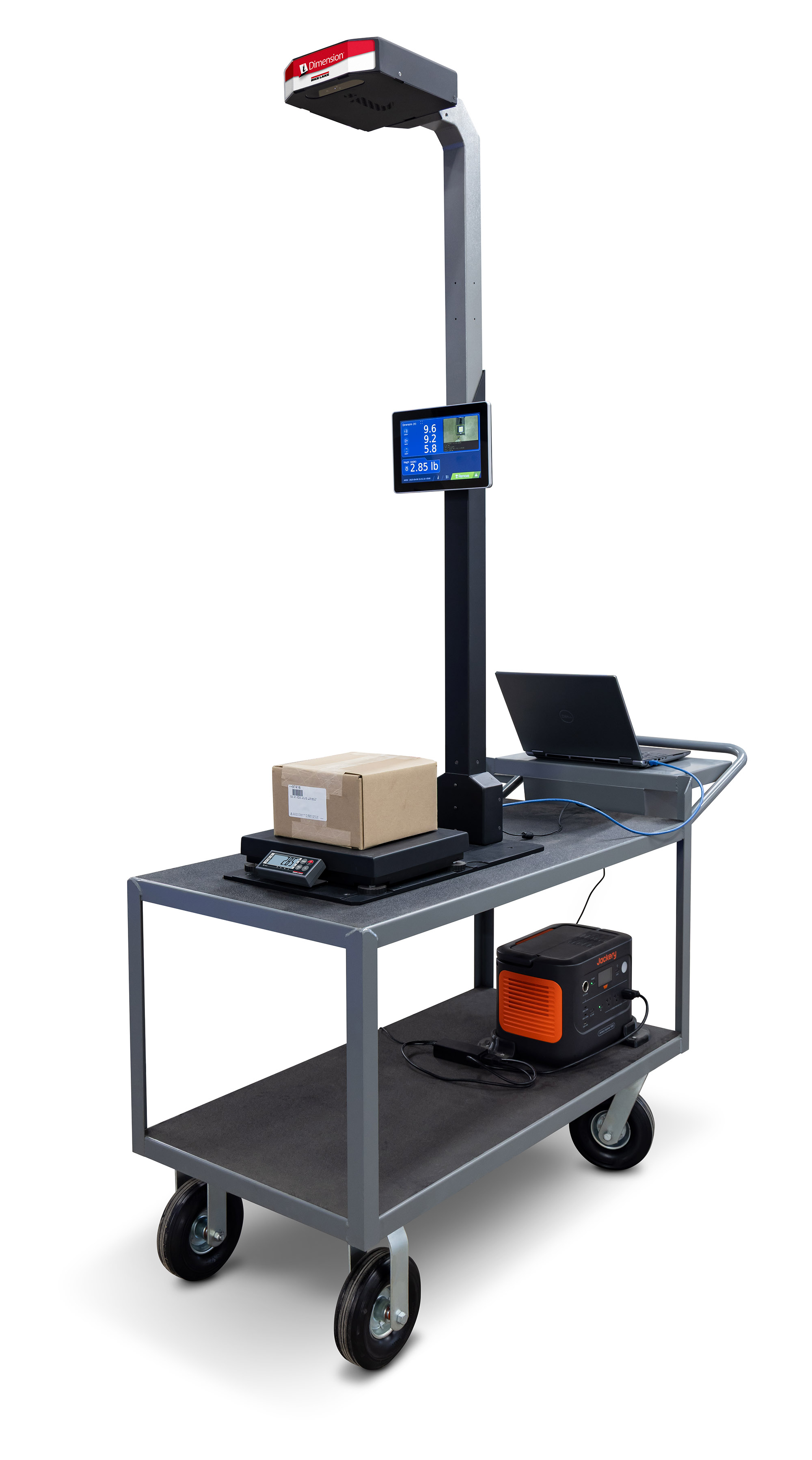

Portable Cart Dimensions
| Portable Cart | |||
|---|---|---|---|
| A | 24 in (610 mm) | B | 48 in (1,219 mm) |
Optional Floor Mount Stand Assembly Dimensions
| Dimensions | |
|---|---|
| A | 47.34 in (1,202 mm) |
| B | 123.13 in (3,128 mm) |
| C | 24.21 in (615 mm) |
Resources/Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| A Whole New Dimension to Outbound Shipping | View |  Email |
Dimensioning | Application Story |
| Measuring Greatness with the Green Bay Packers | View | Email |
Dimensioning|Bench Scales | Application Story |
| The Future of Shipping Is Dim Weight | View | Email |
Dimensioning | Articles |
| Top 10 Ways to Improve Dim Weight Shipping | View | Email |
Dimensioning | Articles |
| Choosing the Best Dimensioner for Your Needs | View | Email |
Dimensioning|Packages and Parcels Dimensioning|Pallets and Freight Dimensioning | Articles |
Manuals
| Title | Version | Revision | Download | Category | Archived | |
|---|---|---|---|---|---|---|
| iDimension Plus Adjustable Pole Dimensioning System Assembly Instructions | A | Download | Email |
Dimensioning|Packages and Parcels Dimensioning | No | |
| iDimension App Software Manual | 2 | B | Download | Email |
Dimensioning|Packages and Parcels Dimensioning|Pallets and Freight Dimensioning|Software | No |
| iDimension Software Suite Software Manual | F | Download | Email |
Dimensioning | No | |
| iDimension Plus Mounted Dimensioning System Installation Manual | A | Download | Email |
Dimensioning|Packages and Parcels Dimensioning | No | |
| iDimension QubeVu Administrator Guide | D | Download | Email |
Dimensioning|Pallets and Freight Dimensioning|Packages and Parcels Dimensioning | No | |
| iDimension Plus Assembly Instructions | C | Download | Email |
Dimensioning | No | |
| iDimension® Plus Sistema de dimensionamiento estático Instrucciones de montaje | C | Download | Email |
Dimensioning | No | |
| iDimension® Plus Système de dimensionnement statique Instructions d’assemblage | C | Download | Email |
Dimensioning | No | |
| iDimension Plus Setup and Operation Manual (Archived) | C | Download | Email |
Dimensioning | Yes | |
| iDimension Plus Assembly Instructions (Archived) | B | Download | Email |
Dimensioning | Yes | |
| iDimension Plus Setup and Operation OIML Manual | 4.13 | D | Download | Email |
Dimensioning | Yes |
| iDimension Plus Managers OIML Guide (Archived) | 4.13 | B | Download | Email |
Dimensioning | Yes |
| iDimension Plus UPS WorldShip Setup Manual (Archived) | Download | Email |
Dimensioning | Yes | ||
| iDimension Plus XL Single and Dual Arm Stands (Archived) | Download | Email |
Dimensioning | Yes | ||
| QubeVu Developer Guide (Archived) | Download | Email |
Dimensioning | Yes |
Sales Literature
| Title | Collateral Wizard | Request | Download | Category | |
|---|---|---|---|---|---|
| iDimension Plus Literature | Request | Download | Email |
Dimensioning | |
| NMFC Classification Changes July 19th, 2025 | Download | Email |
Packages and Parcels Dimensioning|Pallets and Freight Dimensioning|Dimensioning | ||
| Prospecting For Dimensioners: Expanding Your Customer Base | Download | Email |
Dimensioning | ||
| Measuring Under New National Motor Freight Classification Requirements | Download | Email |
Videos / Webinars
| Title | View | Download | Category | |
|---|---|---|---|---|
| Versatile Weighing and Measuring with the iDimension Plus | View | Download | Email |
|
| iDimension® Plus Static Dimensioning System Sales Video | View | Download | Email |
Packages and Parcels Dimensioning|Dimensioning |
| Get to Know Rice Lake's iDimension Series | View | Download | Email |
Dimensioning|Packages and Parcels Dimensioning|Pallets and Freight Dimensioning |
| Simple, Fast & Accurate Pallet Dimensioning Systems | View | Download | Email |
Dimensioning|Pallets and Freight Dimensioning |
| iDimension Plus Measures Dimensions of Small & Irregular Objects | View | Download | Email |
Dimensioning|Packages and Parcels Dimensioning |
| iDimension® Plus Assembly & Setup | View | Download | Email |
Dimensioning |
| iDimension® Plus Shipping Demonstration | View | Download | Email |
Dimensioning|Packages and Parcels Dimensioning |
| What is Dimensional Weight and Why is it Important? | View | Download | Email |
Dimensioning|Packages and Parcels Dimensioning|Pallets and Freight Dimensioning |
| iDimension & BenchPro Setup for UPS WorldShip Software, Part 1 | View | Download | Email |
Dimensioning|Packages and Parcels Dimensioning |
| iDimension & BenchPro Setup for UPS WorldShip Software, Part 2 | View | Download | Email |
Dimensioning|Packages and Parcels Dimensioning |
| iDimension & BenchPro Setup for UPS WorldShip Software, Part 3 | View | Download | Email |
Dimensioning|Packages and Parcels Dimensioning |
Versatile Weighing and Measuring with the iDimension Plus
iDimension® Plus Static Dimensioning System Sales Video
Get to Know Rice Lake's iDimension Series
Simple, Fast & Accurate Pallet Dimensioning Systems
iDimension Plus Measures Dimensions of Small & Irregular Objects
iDimension® Plus Assembly & Setup
iDimension® Plus Shipping Demonstration
What is Dimensional Weight and Why is it Important?
iDimension & BenchPro Setup for UPS WorldShip Software, Part 1
iDimension & BenchPro Setup for UPS WorldShip Software, Part 2
iDimension & BenchPro Setup for UPS WorldShip Software, Part 3
Parts
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 226071 | iDimension Plus 2.0 w/ Adjustable Pole Mount System |
List Price: $5,995.00 |
|
| 226086 | iDim Plus 2.0 kit, iDim Plus 2.0, Bench Pro 150lb shipping scale |
List Price: $7,060.00 |
|
| 226070 | iDimension Plus 2.0 OEM Kit, 10in Display and Cal Object |
List Price: $4,495.00 |
|
| 228864 | iDimension Plus 2.0 Retrofit Kit, iDim head, Cal Object and Power Supply - display not included |
List Price: $4,895.00 |
|
| 226070 | Package 3 iDimension Plus without pole |
Consult |

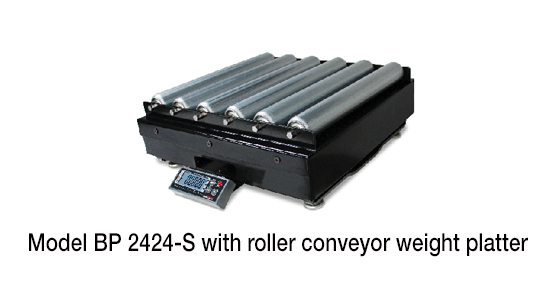

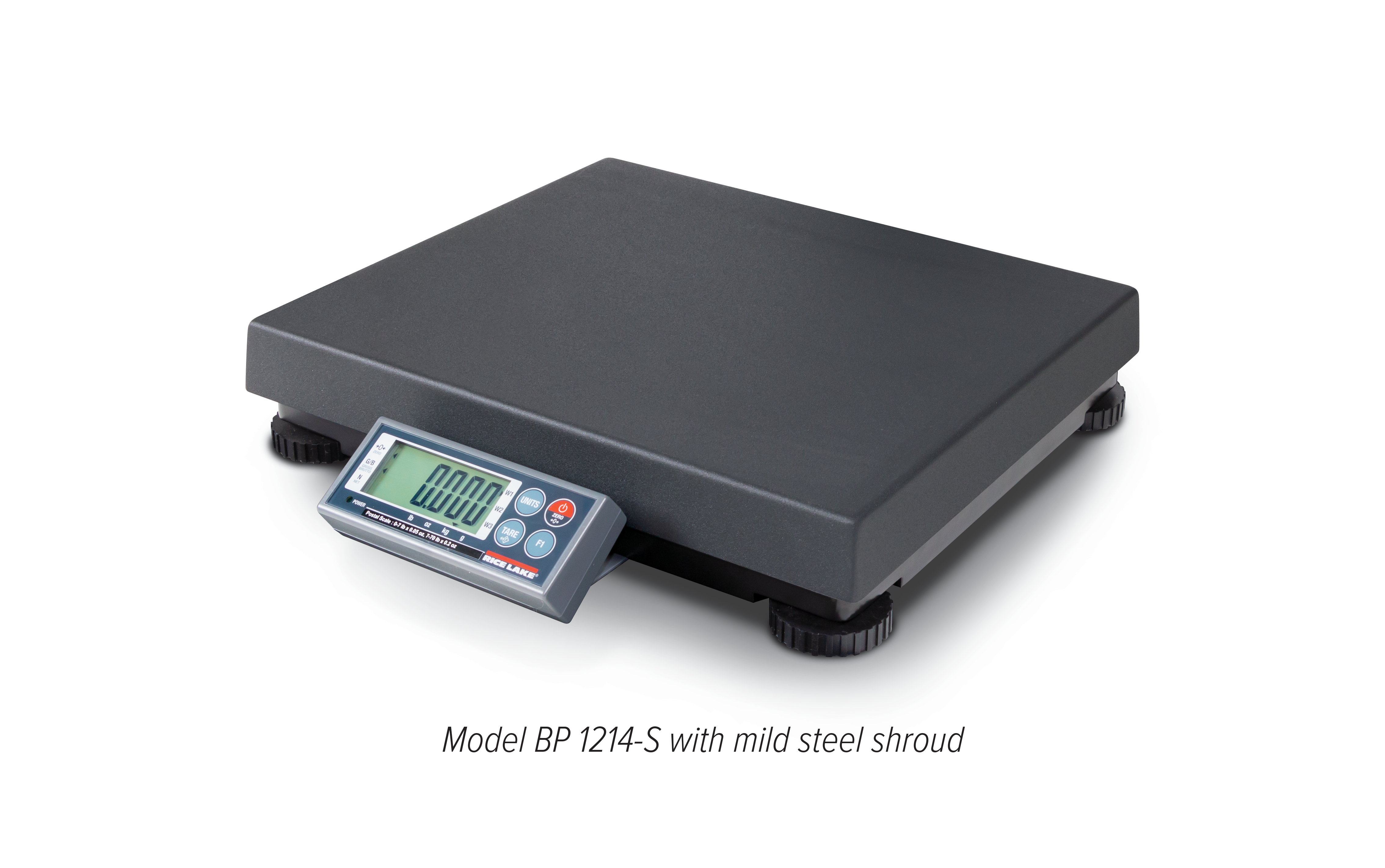

BenchPro Compatible Scales
