Tracer AV2 Baggage Weighing Instrumentation

  • Customer display (panel mount)

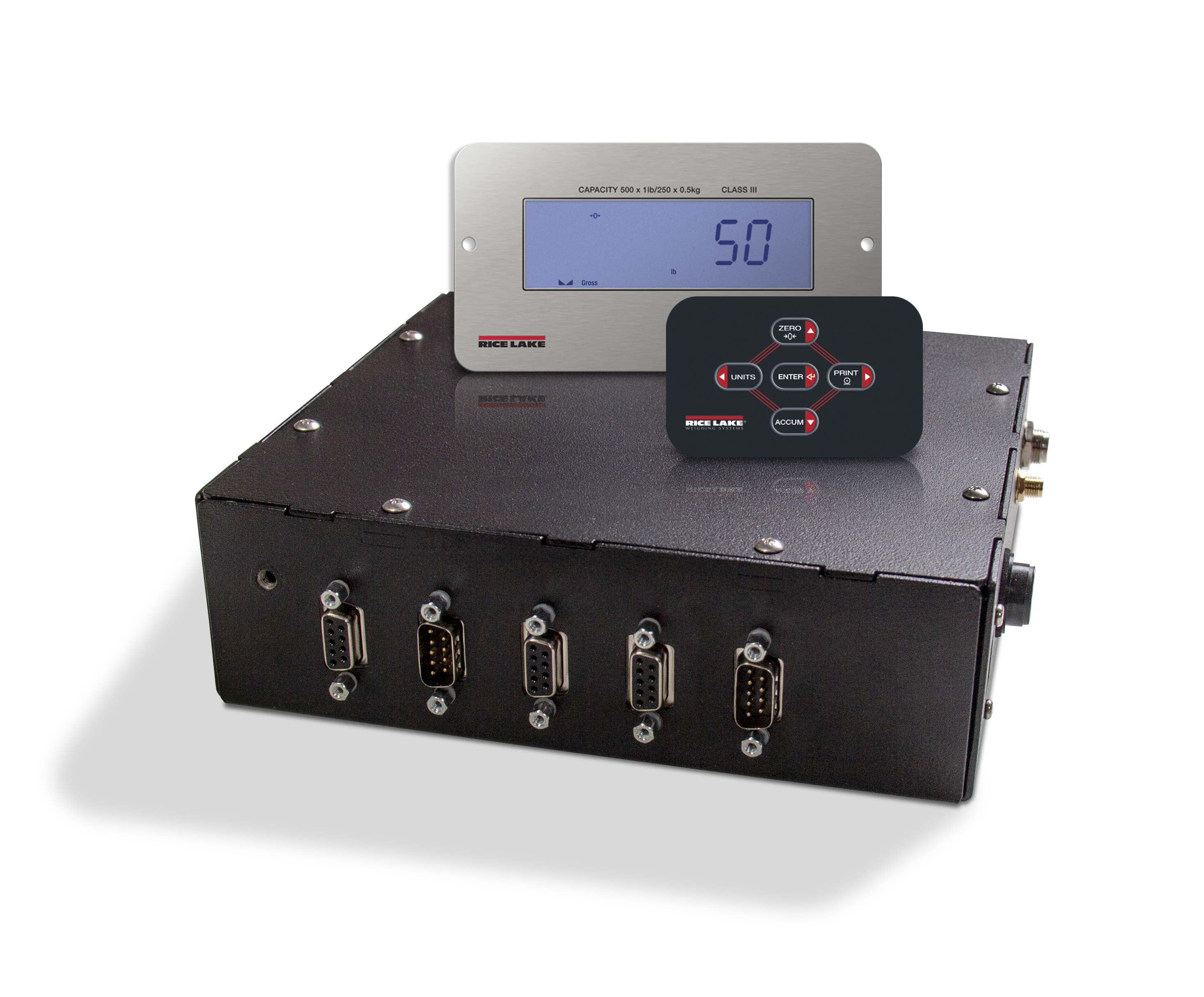

  • CPU module
  • Supports two displays (customer/agent)
  • Five-button keypad for ticket agent
  • Accumulation function
  • Display indicates overweight bag

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW ULCUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Improve Safety and Capture Lost Revenue with Tracer® AV2

Tracer AV2 sends an alert to the operator display when preset weight limits are exceeded on the baggage scale. Tracer AV2 systems have a five-button keypad and a durable, stainless steel, LCD display.

Versatile Connectivity

With a serial port, Ethernet port, Wi-Fi and Bluetooth® connectivity available, weight data from Tracer AV2 can be easily transferred to a wide range of peripheral equipment.

Complete Weighing System

Rice Lake offers a variety of baggage scales to accurately weigh bags of any size and fit a variety of spaces. All Rice Lake baggage scales easily pair with Tracer AV2, even when the scales are customized to fit existing airport counters.

Power:
115 to 230 VAC to CPU module 50/60 Hz

Power Consumption:
6 W

Excitation Voltage:
5 VDC, 8 x 350 ohm load cells

Analog Signal Input Range:
-0.5 mV/V to 4.5 mV/V

Analog Signal Sensitivity:
1 μV/graduation recommended

A/D Sample Rate:
6.25 to 120 Hz, software selectable

Resolution:
Internal: 8,000,000 counts
Display: 1,000,000

System Linearity:
Within 0.01% full scale

Communication:
Ethernet TCP/IP
USB Device

Annunciators:
lb/kg

Display:
Stainless steel, panel mounted, seven-digit LCD display, 0.8 in (20 mm) tall digits

Keys/Buttons:
Zero, Units, Accum, Print, Enter

Temperature Range:
14 °F to 104 °F (-10 °C to 40 °C)

Dimensions:
Panel Mount Display:
7.5 × 4.0 × 1.49 in
(19.05 × 10.16 × 3.79 cm)
External Mount Display:
7.5 × 3.9 × 1.44 in
(19.05 × 9.91 × 3.66 cm)
Panel Mount Keypad:
4.0 × 2.5 × 2.1 in
(10.16 × 6.35 × 5.33 cm)
CPU Enclosure:
7.5 × 7.0 × 2.25 in
without mounting feet
11.13 × 7.0 × 3.06 in
with mounting feet

Weight:
5.25 lb

Warranty:
Two-year limited

Approvals:
NTEP CC 21-015, Class III/IIIL, 10,000d
Measurement Canada AM-6168C
cULus Listed

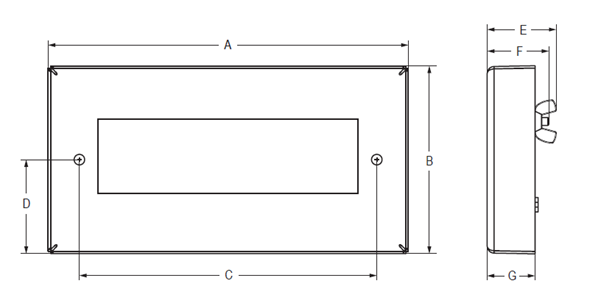

Remote Display (External Mount)
A 7.50 in (19.05 cm) D 1.95 in (4.96 cm) G 1.00 in (2.54 cm)
B 3.90 in (9.91 cm) E 1.44 in (3.66 cm)
C 6.22 in (15.80 cm) F 1.29 in (3.28 cm)



Remote Display (Panel Mount)
A 7.50 in (19.05 cm) D 2.22 in (5.64 cm) G 1.33 in (3.38 cm)
B 4.00 in (10.16 cm) E 1.00 in (2.54 cm) H 1.49 in (3.79 cm)
C 7.00 in (17.78 cm) F 0.063 in (0.16 cm)



Remote Keypad (Panel Mount)
A 4.00 in (10.16 cm) D 0.063 in (0.16 cm) G 4.63 in (11.76 cm)
B 2.50 in (6.35 cm) E 1.90 in (4.83 cm) H 2.60 in (6.61 cm)
C 1.98 in (5.03 cm) F 1.38 in (3.51 cm)



CPU Enclosure Assembly
A 7.30 in (18.55 cm) E 8.90 in (22.61 cm) I 2.40 in (6.10 cm)
B 5.30 in (13.47 cm) F 8.00 in (20.32 cm) J 10.0 in (25.40 cm)
C 7.00 in (17.78 cm) G 7.50 in (19.05 cm) K 4.50 in (11.43 cm)
D 3.20 in (8.13 cm) H 11.10 in (28.20 cm)

Systems to Fit Your Needs

Tracer AV2 systems are Legal for Trade and available in three different configurations to fit the layout of a variety of baggage check-in counters.

Single Configuration

The single configuration is ideal for use at single check-in counters.

  • 1 Display
  • 1 Keypad
  • 1 CPU

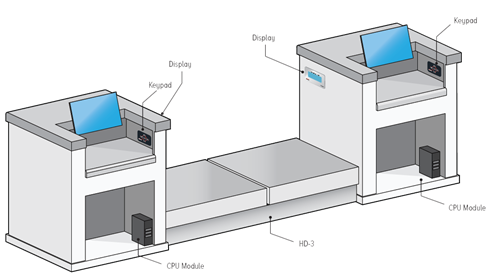

Single configuration, shown with a BenchMark HD-2 aviation scale, a three-sided kickplate for one scale.



Two single configurations, shown with a BenchMark HD-3 aviation scale, a front and back
kickplate for two scales.



Single/Double Configuration

The single/double configuration provides more visibility to customers at luggage counters.

  • 2 Display
  • 1 Keypad
  • 1 CPU

Double/Double Configuration

The double/double configuration is best for counters with two agents.

  • 2 Display
  • 2 Keypad
  • 1 CPU

Double/double configuration shown with a BenchMark HD-1 aviation scale, a
three-sided kickplate for one scale.

Resources / Downloads

Title Download Email
Tracer AV2 Catalog Page Download Email

Title Version Revision Download Email Category Archived
Tracer AV2 Aviation Weighing Solutions Technical Manual C Download Email Aviation Baggage Scales|Aviation Baggage Instrumentation No

Title Download Email
Tracer AV2 Replacement Parts Download Email

Title Collateral Wizard Request Download Email Category
Tracer AV2 Request Download Email Aviation Baggage Scales

Title View Email Category
Tracer Aviation Weighing Solutions RD-2 / RD-2A Display Technical Bulletin Download Email Aviation Baggage Scales|Aviation Baggage Instrumentation

Parts

Part # Description List Price Cart
202532 Tracer AV2,Single Display Single LCD Panel Mount Display,Single Keypad for Baggage Scale

List Price: $1,945.00

202531 Tracer AV2,Dual Display Dual LCD Panel Mount Display, Single Keypad for Baggage Scale

List Price: $2,345.00

207287 Tracer AV2,Dual Display Dual LCD Panel Mount Display, Dual Keypad for Baggage Scale

List Price: $2,445.00

204452 Tracer AV2,Single Display Single LCD External Mount Display, Single Keypad for Baggage Scale

List Price: $1,995.00

204451 Tracer AV2,Dual Display Dual LCD External Mount Display, Single Keypad for Baggage Scale.

List Price: $2,495.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

WEB SC Benchmarkhdp

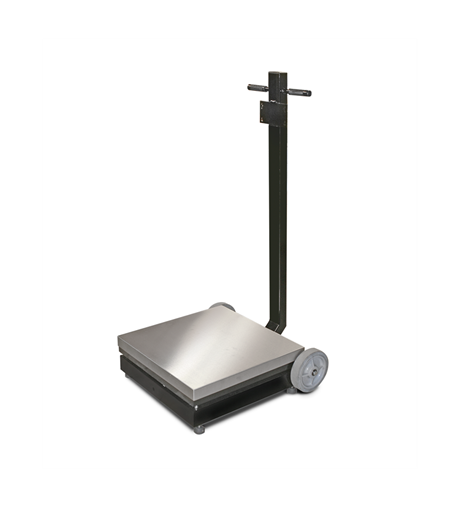

BenchMark® HDP Heavy Duty Portable Scale

Available in several variations and capacities, the BenchMark HDP portable platform scale is an ideal option for many light industrial and commercial applications.

WEB SC LP

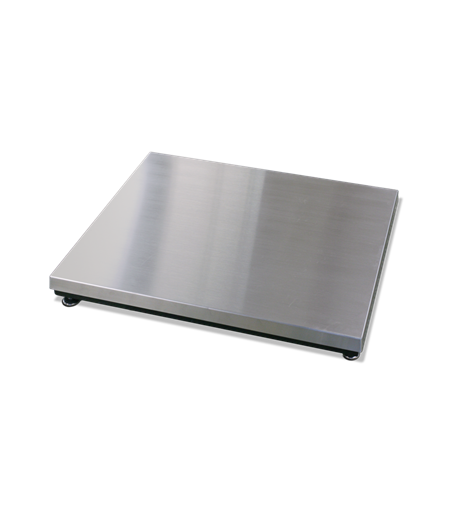

BenchMark® LP Low-Profile Bench Scale

The more subtle presence of the BenchMark low-profile bench scale is an attractive option for commercial situations, or other areas in need of a less obtrusive platform.

WEB SC Benchmarkhd

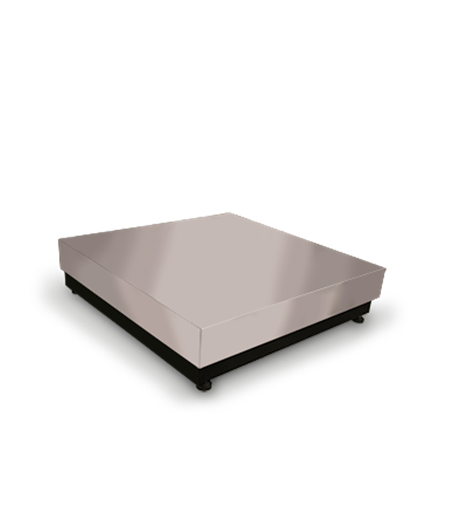

BenchMark® HD Heavy-Duty Bench Scale

The BenchMark HD bench scale is a solid choice for heavy duty industrial weighing.

WEB SC HD1 Avation

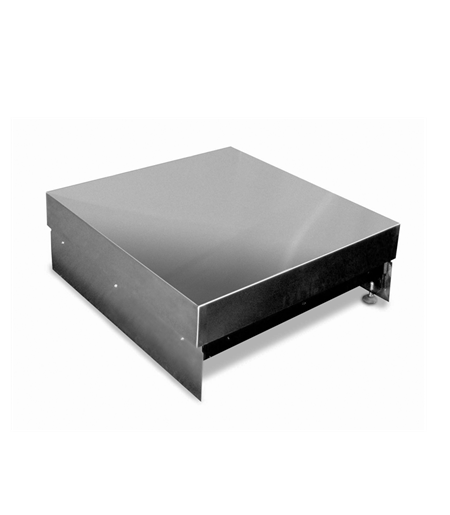

BenchMark® HD-1 Aviation Scale

BenchMark HD-1 Aviation Scale

WEB SC HD2 Aviation

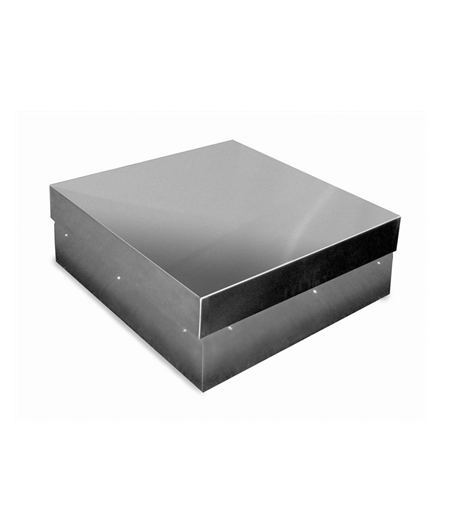

BenchMark® HD-2 Aviation Scale

BenchMark HD-2 Aviation Scale

WEB SC HD3 Aviation

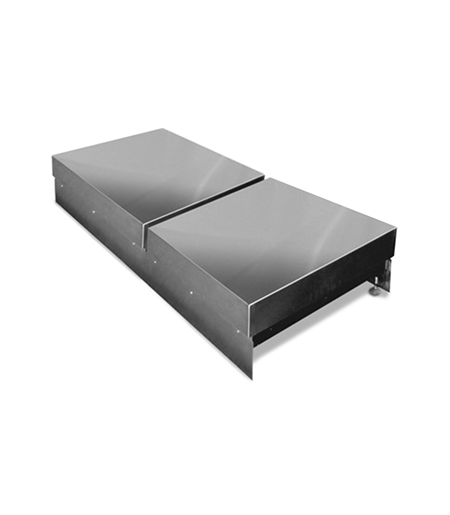

BenchMark® HD-3 Aviation Scale
