SURVIVOR® OTR Steel Deck Truck Scale

  • Top access to load cells and junction box
  • 75,000 lb capacity load cells and G-Force™ mount assemblies
  • Junction box(es) appropriate for number of load cells utilized
  • NTEP Certified 02-003
  • 100,000 lb Concentrated Load Capacity (CLC)
  • 100,000 lb Dual Tandem Axle (DTA)
  • Up to 270,000 lb full scale capacity
  • Three standard widths: 10 ft, 11 ft, and 12 ft (available up to 16.5 ft, NTEP Certified)

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW LOGO NOM

WARNING: Cancer and Reproductive Harm California Proposition 65

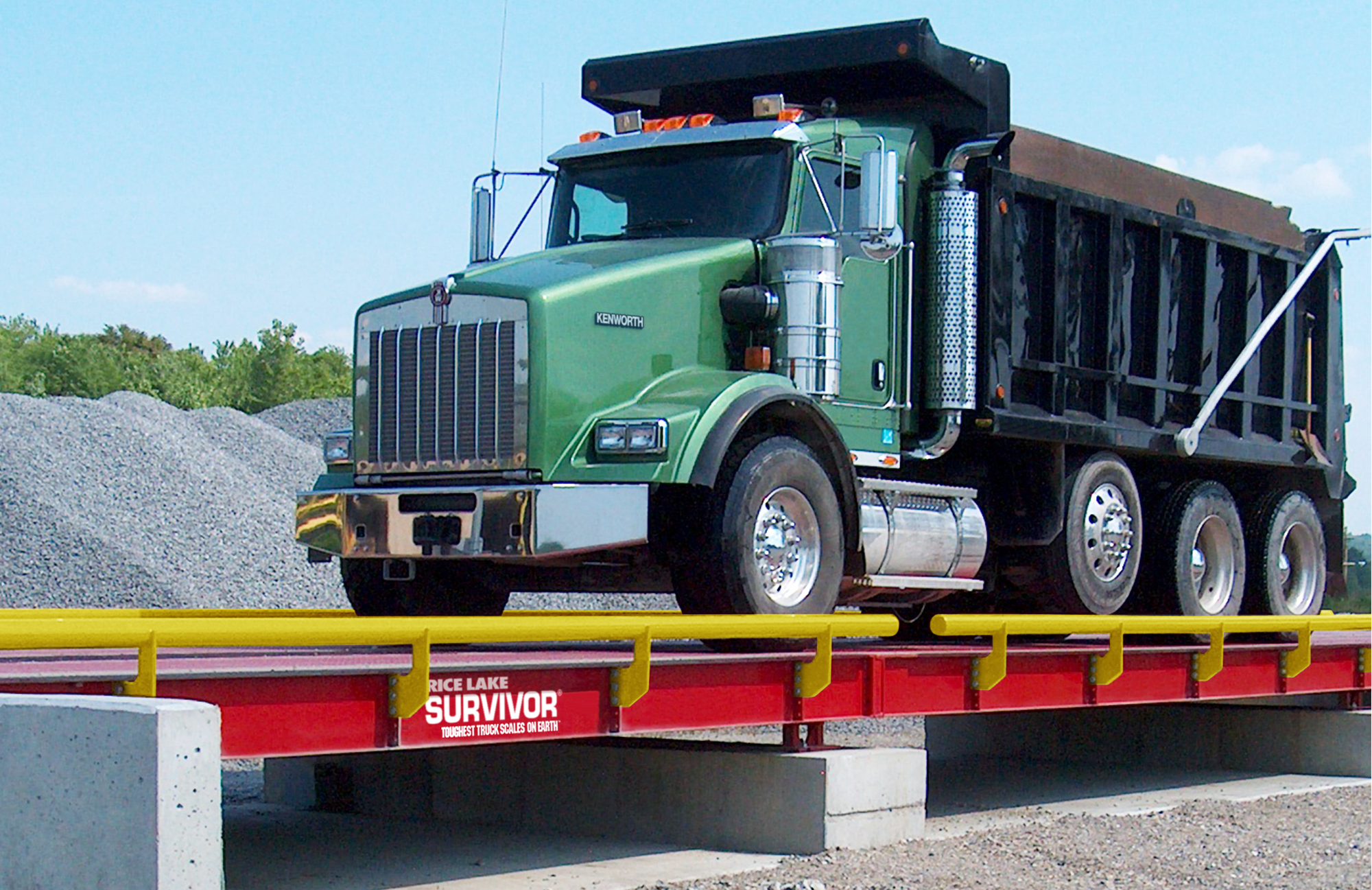

Uncompromising SURVIVOR Strength

The compact, low-profile SURVIVOR OTR steel deck installs quickly—ready to weigh heavy loads and withstand constant traffic in as little as one day, getting production processes up and running as quickly as possible. The SURVIVOR OTR steel deck features a wide-flange I-beam construction. 12-inch wide-flange beams on 11.5-inch centers run longitudinally with the traffic flow beneath a 5/16-inch diamond plate deck. The wide-flange I-beam construction helps minimize deflection (vertical flexing), a major factor in determining the life of the weighbridge.

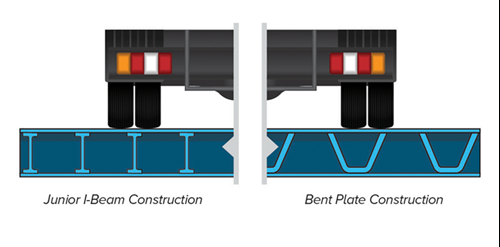

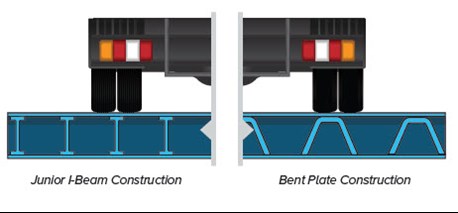

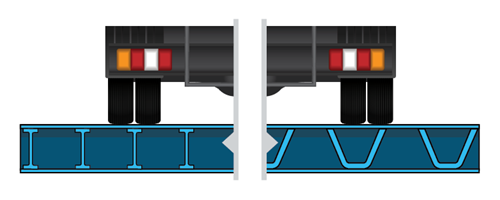

Many other manufacturers use lighter beams and bent plates in the middle of the bridge, or may space beams farther away from the center of the module to reduce the cost of the scale. Over time, this type of bridge can bow, causing inaccuracies in weighments, scale downtime and eventually scale failure.

Long-lasting Value

SURVIVOR OTR truck scales are designed to accommodate a minimum of 250 trucks per day for 25 years without weighbridge fatigue—equivalent to more than two million weighments. Rice Lake’s warranty covers load cells, junction boxes and suspension systems to ensure worry-free operation. SURVIVOR OTR truck scales also include a lightning protection package, and weighbridges are warranted against defects in materials and workmanship. This warranty is available for a choice between five and an industry-leading 12 years from delivery.

Breathing Room Below

The SURVIVOR OTR steel deck features an open-bottom design, eliminating the cavity where rust-causing moisture can collect. Rice Lake’s unique asphalt emulsion coating is applied to all non-visible steel surfaces and undersides, adding extra protection from moisture and corrosive elements to prolong the life of the scale.

Tough from Start to Finish

Steel deck OTR truck scales go through an extensive finishing process: blast-cleaning to remove mill scale and surface imperfections, maximum coating adhesion preparation, high-solids urethane primer and paint application, and an asphalt emulsion undercoating on all non-visible steel surfaces.

Integrated Load Cell Pockets

Top access to load cells and junction boxes through an integrated load cell pocket ensures easy installation and maintenance. Load cell pockets are made with heavy-duty steel plates incorporated into the design of the scale, adding extraordinary strength and integrity to a critical area of the weighbridge.

Self-checking Mounting System

Rice Lake’s G-Force™ self-checking mounting system eliminates excess movement and scale wear by using 100 percent of the gravitational force from the loading action against itself, returning the scale to center without check rods or bumper bolts.

Load Cells and Mount Assemblies:
75,000 lb capacity; G-Force™ self-checking mounting system, top access to load cells

Full Scale Capacity:
Up to 270,000 lb

Concentrated Load Capacity (CLC):
100,000 lb

Dual Tandem Axle (DTA):
100,000 lb

Approvals:
NTEP Certified per H-44, Class IIIL
02-003 Measurement Canada AM-5413

Warranty:
5-year or 12-year limited warranty on the weighbridge
5-year or 12-year limited parts warranty, including lightning protection

  • Up to 16.5 ft wide
  • Fit existing foundations
  • 50 lb division/400,000 lb capacity
  • Custom grain dumps
  • 10 lb division for Truck/Livestock
  •  20 lb division

Resources / Downloads

Title View Email Category Type
Beat the Sleet: How to Protect Truck Scales from Snow Email Truck Scales Articles
Factors that Increase Truck Scale Durability Email Truck Scales Articles
Farmer's Trust View Email Truck Scales|Bulk Indicators/Controllers Articles|Application Story
New Life for Steel Email Truck Scales Articles
Rattling Acres View Email Truck Scales|Indicator Software|Indicators / Controllers|Vehicle Scale Accessories Articles
Simplifying Truck Scale Installation Email Truck Scales Articles
Six Facts About SURVIVOR® Truck Scales Email Truck Scales Articles
SURVIVOR® in Shining Armor View Email Truck Scales Articles
Time for Bourbon at O.Z. Tyler View Email Articles
Truck Scale Basics View Email Truck Scales Articles
Truck Scale Calibration View Email Truck Scales Articles
Truck Scale Designs View Email Truck Scales Articles
Truck Scale Features that Minimize Downtime Email Truck Scales Articles
Truck Scale Foundations Email Truck Scales Articles
Truck Scale Load Cells and Mounting Systems View Email Truck Scales Articles
Truck Scale Quality and Protection View Email Truck Scales Articles
Truck Scale Site Planning View Email Truck Scales Articles
Turning Grain Dust Into Gold View Email Truck Scales Articles|Application Story
Upgrade to a Digital Truck Scale Using iQUBE² View Email Truck Scales Articles
Weighing Wine from A to Z View Email Truck Scales|Indicators / Controllers Articles|Application Story
Who’s Behind Your Truck Scale? Email Truck Scales Articles

Title Download Email
SURVIVOR® OTR Steel Deck Truck Scale Download Email

Title Version Revision Download Email Category Archived
Side Checking Bumper Option - OTR Download Email Truck Scales No
SURVIVOR® OTR Flattop Truck Scale Installation Manual F Download Email Truck Scales No

Title Download Email
Existing Truck Scale Foundation Questionnaire Download Email
SURVIVOR Truck Scale Catwalk Questionnaire Download Email
Truck Scale Trimming Pad Download Email
Truck Scales Questionnaire Download Email

Title Collateral Wizard Request Download Email Category
SURVIVOR OTR Series Steel Deck Request Download Email Truck Scales
The SURVIVOR Advantage Request Download Email Truck Scales
The Truck Scale Buyer's Guide Request Download Email Truck Scales
Total Cost of Ownership Worksheet Request Download Email Truck Scales
SURVIVOR Catwalks Download Email Truck Scales

Title View Download Email Category
Truck Scale Sales Video View Download Email Truck Scales
Rice Lake SURVIVOR® Truck Scale Advantages View Download Email Truck Scales
SURVIVOR OTR Grain Dump Application View Download Email Truck Scales
SURVIVOR OTR Truck Scale Waste Transfer Station Application View Download Email Truck Scales
SURVIVOR Truck Scale Installation Walkthrough View Download Email Truck Scales
SURVIVOR® OTR Truck Scale in Action: 360° VR Video View Email Truck Scales
SURVIVOR® Truck Scale Undercoating and Powder Coating Process: 360° VR Video View Email Truck Scales
Weighing Solutions for the Agriculture Industry View Download Email Agriculture
Weighing Solutions for the Energy Industry View Download Email Truck Scales
Weighing Solutions for the Forestry Industry View Download Email Truck Scales
Single-Point Grounding: Part 1 View Download Email Truck Scales
Single-Point Grounding: Part 2 View Email Truck Scales
Single-Point Grounding: Part 3 View Email Truck Scales
Truck Scale Grounding View Email Truck Scales

Parts

10 Foot Width

Part # Description List Price Cart
153671 Truck Scale,120x10 OTR ST Steel Deck SURVIVOR OTR Model EZ12010-ST-100-OTR 100,000lb CLC, 200,000lb Capacity 7-Section w/ 5/16 Top Plate

Call for price

63175 Truck Scale,20x10 OTR ST Steel Deck SURVIVOR OTR Model EZ2010-ST-60-OTR 100,000lb CLC, 120,000lb Capacity, 2-Section, 5/16 Top Plate

Call for price

63174 Truck Scale,10x10 OTR ST Steel Deck SURVIVOR OTR Model EZ1010-ST-60-OTR 100,000lb CLC, 120,000lb Capacity, 2-Section, 5/16 Top Plate

Call for price

63176 Truck Scale,24x10 OTR ST Steel Deck SURVIVOR OTR Model EZ2410-ST-60-OTR 100,000lb CLC, 120,000lb Capacity, 2-Section, 5/16 Top Plate

Call for price

63177 Truck Scale,40x10 OTR ST Steel Deck SURVIVOR OTR Model EZ4010-ST-100-OTR 100,000lb CLC, 200,000lb Capacity, 3-Section, 5/16 Top Plate

Call for price

63178 Truck Scale,47x10 OTR ST Steel Deck SURVIVOR OTR Model EZ4710-ST-100-OTR 100,000lb CLC, 200,000lb Capacity, 3-Section, 5/16 Top Plate

Call for price

63179 Truck Scale,60x10 OTR ST Steel Deck SURVIVOR OTR Model EZ6010-ST-100-OTR 100,000lb CLC, 200,000lb Capacity, 4-Section, 5/16 Top Plate

Call for price

63180 Truck Scale,80x10 OTR ST Steel Deck SURVIVOR OTR Model EZ8010-ST-100-OTR 100,000lb CLC, 200,000lb Capacity, 5-Section, 5/16 Top Plate

Call for price

63181 Truck Scale,93x10 OTR ST Steel Deck SURVIVOR OTR Model EZ9310-ST-100-OTR 100,000lb CLC, 200,000lb Cap, 5 Section, 5/16 Top Plate

Call for price

63182 Truck Scale,100x10 OTR ST Steel Deck SURVIVOR OTR Model EZ10010-ST-100-OTR 100,000lb CLC, 200,000lb Capacity, 6-Section, 5/16 Top Plate

Call for price

63183 Truck Scale,117x10 OTR ST Steel Deck SURVIVOR OTR Model EZ11710-ST-100-OTR 100,000lb CLC, 200,000lb Capacity, 6-Section, 5/16 Top Plate

Call for price

63206 Truck Scale,70x10 OTR ST Steel Deck SURVIVOR OTR Model EZ7010-ST-100-OTR 100,000lb CLC, 200,000lb Capacity, 4-Section, 5/16 Top Plate

Call for price

86273 Truck Scale, 75x10 OTR S Steel Deck SURVIVOR OTR Model EZ7510-ST-100-OTR 100,000lb CLC, 200,000lb Capacity, 4-Section, 5/16 Top Plate

Call for price

96703 Truck Scale, 12x10 OTR ST Steel Deck SURVIVOR OTR Model EZ1210-ST-60-OTR 120,000 lb Capacity, 90,000 lb CLC, 2-Section, 5/16 Top Plate

Call for price

86272 Truck Scale, 15x10 OTR S Steel Deck SURVIVOR OTR Model EZ1510-ST-60-OTR 100,000lb CLC, 120,000lb Capacity, 2-Section, 5/16 Top Plate

Call for price

71978 Truck Scale,30x10 OTR ST Steel Deck SURVIVOR OTR Model EZ3010-ST-60-OTR 100,000lb CLC 120,000lb Cap 2 Section, 5/16 Top Plate

Call for price

96706 Truck Scale, 50x10 OTR ST Steel Deck SURVIVOR OTR Model EZ5010-ST-100-OTR 200,000 lb Capacity, 90,000 lb CLC, 3-Section, 5/16 Top Plate

Call for price

152127 Truck Scale,90x10 OTR ST Steel Deck SURVIVOR OTR Model EZ9010-ST-100-OTR 100,000lb CLC, 200,000lb Capacity 5-Section w/5/16 Top Plate.

Call for price

87956 Truck Scale,140x10 OTR ST Steel Deck SURVIVOR OTR Model EZ14010-ST-100-OTR 100,000lb CLC 200,000lb Capacity 8 Section, w/ 5/16 Top Plate.

Call for price

11 Foot Width

12 Foot Width

Options

Part # Description List Price Cart
